Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Specifications
Brand Name :
Spiral Cable
Model Number :
TH-800102
Certification :
UL, CUL, CSA, AWM, CE
Place of Origin :
Dongguan, China
MOQ :
200 PCS
Price :
USD0.16~0.50 per piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
800,000pcs per month
Delivery Time :
10 days for ready goods
Packaging Details :
200pcs per carton box
Type :
Retractable Cable
Feature :
VW-1
Rated Temperature :
80 degree
Rated Voltage :
300V
Dimensions :
To be customized per request
Standard :
RoHS Compliant
Description

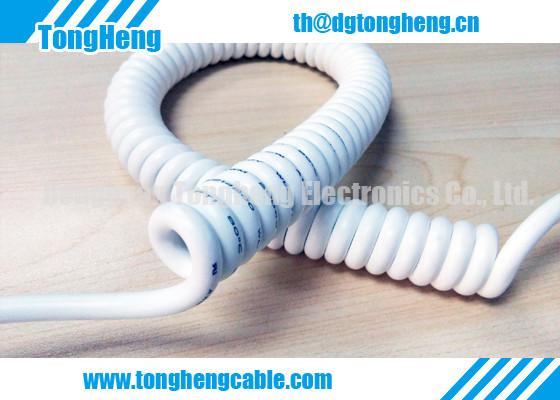

Fire Resistant VW-1 Rated Electronic Retractable Cord

Retractable Cable is one of Tongheng main products. As the professional manufacturer, Tongheng staff engage to present customer the best quality cable, and is able to customize the Retractable Cable exactly following customers requirement. Fire Resistant VW-1 Rated Electronic Retractable Cord is one of the excellent example. Its remarkable advantage is Fire resistant VW-1 rated.

Here below is the product properties:

High quality copper wire conductors.
Flame retardant grade: UL VW-1
Application: Electronic & Electric facilities and appliances

Product parameters:

Style NumberSpecificationConductor StrandsJacket ThicknessOverall Diameter (mm)
Ul2012130 AWG x 2 Cores7/0.1024 mils / 0.61mm3.40
Ul2012228 AWG x 2 Cores8/0.1224 mils / 0.61mm3.70
Ul2012326 AWG x 2 Cores12/0.1224 mils / 0.61mm3.80
Ul2012424 AWG x 2 Cores19/0.1224 mils / 0.61mm4.00
Ul2012522 AWG x 2 Cores29/0.1224 mils / 0.61mm4.40
Ul2012620 AWG x 2 Cores46/0.1224 mils / 0.61mm4.80
Ul2012718 AWG x 2 Cores73/0.1224 mils / 0.61mm5.40
Ul2012816 AWG x 2 Cores116/0.1224 mils / 0.61mm7.60
Ul2012930 AWG x 3 Cores7/0.1024 mils / 0.61mm5.30
Ul2013028 AWG x 3 Cores8/0.1224 mils / 0.61mm5.50
Ul2013126 AWG x 3 Cores12/0.1224 mils / 0.61mm5.70
Ul2013224 AWG x 3 Cores19/0.1224 mils / 0.61mm5.90
Ul2013322 AWG x 3 Cores29/0.1224 mils / 0.61mm6.30
Ul2013420 AWG x 3 Cores46/0.1224 mils / 0.61mm6.80
Ul2013518 AWG x 3 Cores73/0.1224 mils / 0.61mm7.40
Ul2013630 AWG x 4 Cores7/0.1024 mils / 0.61mm5.50
Ul2013728 AWG x 4 Cores8/0.1224 mils / 0.61mm5.70
Ul2013826 AWG x 4 Cores12/0.1224 mils / 0.61mm6.00
Ul2013924 AWG x 4 Cores19/0.1224 mils / 0.61mm6.30
Ul2014022 AWG x 4 Cores29/0.1224 mils / 0.61mm6.70
Ul2014120 AWG x 4 Cores46/0.1224 mils / 0.61mm8.20
Ul2014230 AWG x 5 Cores7/0.1024 mils / 0.61mm5.80
Ul2014328 AWG x 5 Cores8/0.1224 mils / 0.61mm6.10
Ul2014426 AWG x 5 Cores12/0.1224 mils / 0.61mm6.20
Ul2014524 AWG x 5 Cores19/0.1224 mils / 0.61mm6.70
Ul2014622 AWG x 5 Cores29/0.1224 mils / 0.61mm7.20
Ul2014730 AWG x 6 Cores7/0.1024 mils / 0.61mm6.20
Ul2014828 AWG x 6 Cores8/0.1224 mils / 0.61mm6.50
Ul2014926 AWG x 6 Cores12/0.1224 mils / 0.61mm6.80
Ul2015024 AWG x 6 Cores19/0.1224 mils / 0.61mm7.10



Contact:

Thanks for your visit to our website. The above displayed parameters are just for reference. Please ask us for customized ones immediately if you have the differentt requirement.

Fire Resistant VW-1 Rated Electronic Retractable Cord

Fire Resistant VW-1 Rated Electronic Retractable Cord

Manufacturing Procedures:

Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
Fire Resistant VW-1 Rated Electronic Retractable Cord
