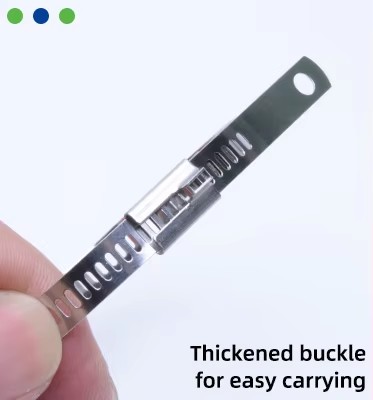

Strong self-locking mechanism(Pawl and ratchet) saves time on installation. Flat and low profile head(no sharp edger) for easy installation. Larger slot at the end, allows the use of a hook-type tool.











| Material : | Stainless Steel Grade 304 or 316 | |
| Working Temp: | -80℃ to 538℃ | |
| Description : | Entirely metallic | |
| Flammability: | Fireproof | |
| Other Properties : | UV-resistant | |
| Working Temperature : | -80℃ to 538℃ | |

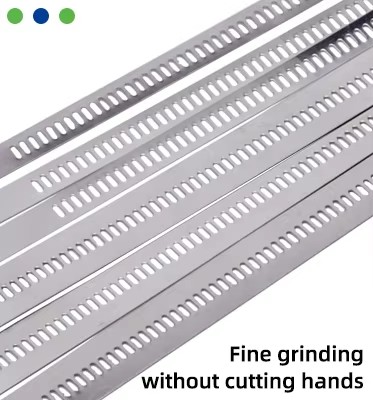

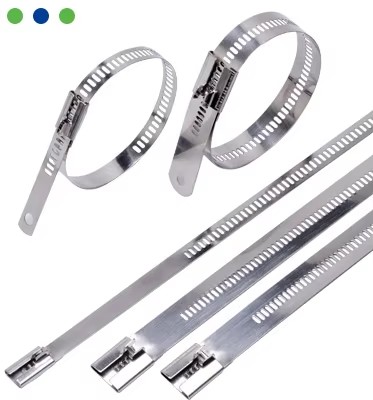

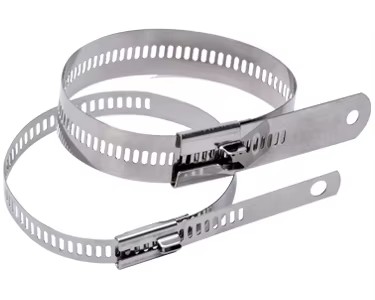

| Ladder Single-Lock Un coated Ties | | |

| Item No. | width | Length | Max.Bundle Dia. | | Min.Tensile Strength | | Thickness | ||
| | (mm/inch) | (mm/inch) | mm | inch | N | lbs | mm/inch | ||
| MDS-4.6*150 | 4.6/0.18 | 150(5.91) | 40 | 1.57 | 488 | 110 | 0.3/0.012 | ||
| MDS-4.6*225 | 4.6(0.181) | 225(8.86) | 62 | 2.44 | 311 | 70 | 31.7 | ||
| MDS-4.6*300 | 4.8(0.189) | 300(11.81) | 81 | 3.19 | 311 | 70 | 31.7 | ||
| MDS-4.6*400 | 4.8(0.189) | 400(15.75) | 113 | 4.45 | 311 | 70 | 31.7 | ||
| MDS-4.6*450 | 4.8(0.189) | 450(17.73) | 127 | 5 | 311 | 70 | 31.7 | ||
| MDS-4.6*550 | 7.6(0.299) | 550(21.65) | 159 | 6.26 | 445 | 100 | 45.3 | ||
| MDS-4.6*600 | 8.8(0.346) | 600(23.62) | 176 | 6.93 | 578 | 130 | 58.9 | ||
| MDS-4.6*700 | 12.7(0.51) | 700(27.56) | 207 | 8.15 | 2225 | 500 | 226.8 | ||
| MDS-4.6*800 | | 800(31.5) | 238 | 9.37 | | | | ||
| MDS-7*150 | 7/0.28 | 150(5.91) | 40 | 1.57 | 667 | 150 | | ||
| MDS-7*225 | | 225(8.86) | 62 | 2.44 | | | | ||
| MDS-7*300 | | 300(11.81) | 81 | 3.19 | | | | ||
| MDS-7*400 | | 400(15.75) | 113 | 4.45 | | | | ||
| MDS-7*450 | | 450(17.72) | 127 | 5 | | | | ||
| MDS-7*550 | | 550(21.65) | 159 | 6.26 | | | | ||
| MDS-7*600 | | 600(23.62) | 176 | 6.93 | | | | ||
| MDS-7*700 | | 700(27.56) | 207 | 8.15 | | | | ||
| MDS-7*800 | | 800(31.5) | 238 | 9.37 | | | | ||
| MDS-12*150 | 12/0.47 | 150(5.91) | 40 | 1.57 | 1000 | 225 | 0.38/0.015 | ||
| MDS-12*225 | | 225(8.86) | 62 | 2.44 | | | | ||
| MDS-12*300 | | 300(11.81) | 81 | 3.19 | | | | ||
| MDS-12*400 | | 400(15.75) | 113 | 4.45 | | | | ||
| MDS-12*450 | | 450(17.72) | 127 | 5 | | | | ||
| MDS-12*550 | | 550(21.65) | 159 | 6.26 | | | | ||
| MDS-12*600 | | 600(23.62) | 176 | 6.93 | | | | ||
| MDS-12*700 | | 700(27.56) | 207 | 8.15 | | | | ||
| MDS-12*800 | | 800(31.5) | 238 | 9.37 | | | | ||
