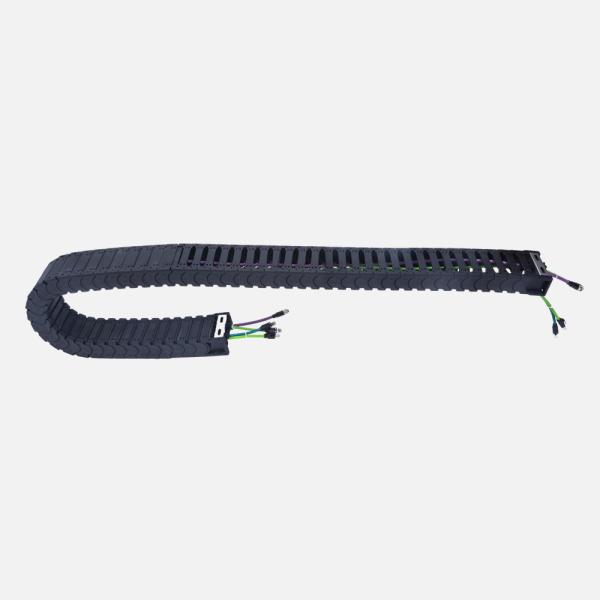

Cable Drag Chains: Ensuring Reliable Cable Management in Motion Systems

Introduction: Cable drag chains, often referred to as cable carriers, are essential components in industrial environments where cable management is critical for the operation and safety of machinery. These chains provide a robust and flexible means of guiding and protecting cables, hoses, and tubing as they move through dynamic systems.

Purposes of Cable Drag Chains: Cable drag chains serve multiple purposes in various industrial applications:

1. Protection: They protect cables and hoses from wear, abrasion, and environmental factors such as dust, water, and chemicals.
2. Organization: They help to keep cables and hoses organized, reducing the risk of tangling and improving the efficiency of machinery operation.
3. Safety: By enclosing and securing cables, drag chains minimize the risk of accidents caused by loose or damaged cables.
4. Durability: They extend the service life of cables by shielding them from the impacts of external elements and movement.
5. Flexibility: Designed to accommodate a wide range of motion, cable drag chains allow for both linear and complex paths.

Classifications of Cable Drag Chains: Cable drag chains can be classified according to material, design, and application:

1. Material Classification:

   • Steel Drag Chains: Known for their strength and durability, suitable for heavy-duty applications.
   • Plastic Drag Chains: Lightweight and corrosion-resistant, ideal for lighter loads and clean environments.
   • Nylon Drag Chains: Highly flexible and resistant to wear, often used where frequent bending is required.

2. Design Classification:

   • Closed Drag Chains: Provide full enclosure for cables, offering maximum protection.
   • Open Drag Chains: Allow for better ventilation but still offer a degree of protection.

3. Application Classification:

   • Heavy-Duty Drag Chains: Designed for use in harsh conditions and heavy loads.
   • Light-Duty Drag Chains: Suitable for less demanding environments with lighter loads.
   • Specialty Drag Chains: May include features such as silent operation, resistance to high temperatures, or specialized sealing for extreme environments.

Conclusion: Cable drag chains are a versatile and indispensable solution for cable management in a wide range of industrial applications. Their ability to protect cables while allowing for flexible movement makes them a critical component in ensuring the reliability and safety of machinery. As technology advances and the demand for efficient cable management systems grows, the role of cable drag chains will continue to be pivotal in maintaining the smooth operation of industrial and electronic equipment.
