Specifications
Brand Name :
RY
Model Number :
ZH
Certification :
CE
Place of Origin :
China
MOQ :
quantity can be negotiable
Price :
Most favorable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000pcs
Delivery Time :
Shipped in 5-15 days after payment
Packaging Details :
PE inner, carton outer
Product Name: :
JST ZH 1.5MM PITCH 4PIN Wire Harness Assembly
Connector: :
Zh
Item: :
4pin
Pitch: :
1.5mm
Service: :
Design
Length: :
500mm
Express: :
DHL FEDEX UPS TNT
High Light: :
JST ZH 4 Pin Wire Harness, 1.5mm 4 Pin Wire Harness, jst zh cable
Description

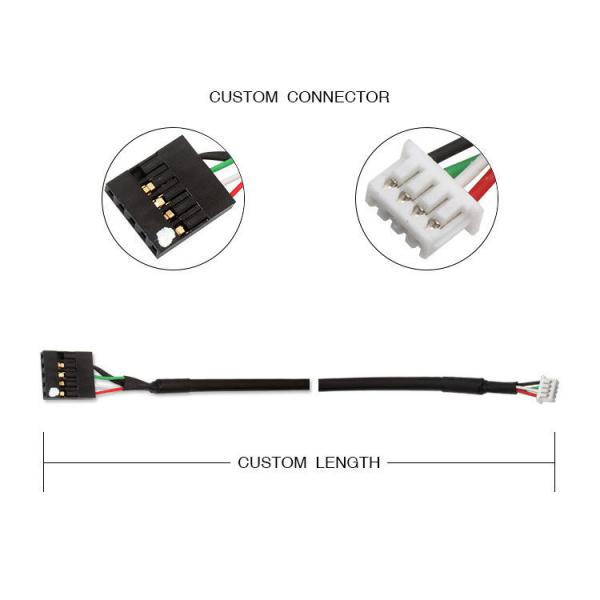

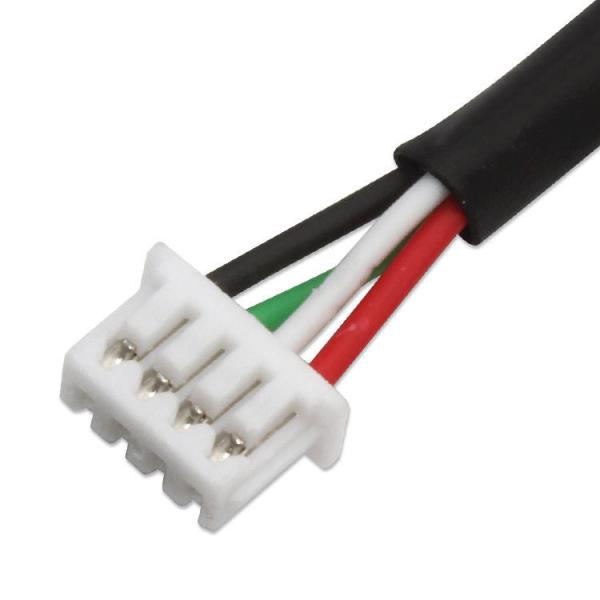

JST ZH 1.5MM PITCH 4PIN Wire Harness assembly

Product Profile Specification
Series ZH connector Pitch 1.5 mm
Category Crimp Style Connectors (Wire-to-Board type) Current rating 1.0A (AWG#26)
Type Disconnectable type Voltage rating 50V
Crimp style, Compact type PC board Top entry, Side entry
    mounting direction
• Contact resistance: Initial value/ 20 mΩ max.After environmental tests/ 30 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: 500 VAC/minute
• Applicable wire: AWG #32 to #26
• Applicable PC board thickness: 0.6 to 1.2 mm, 1.6 mm

Factory Customized JST ZH 4 Pin Wire Harness OEM ODM

Our Company:

RY Electronic Technology Co., Ltd. boasts a decade of expertise in crafting customized cable and connector solutions. Specializing in FFC/FPC cables, flat flexible ribbon cables, LVDS cables, JST Wire Harness and more, we are dedicated to delivering top-tier products tailored to your needs.

With a strong focus on quality assurance, most of our products are certified with UL, CE, ROHS, and ISO9001:2008 standards. We offer flexible Minimum Order Quantities (MOQs) ranging from 5 to 50 units, ensuring accessibility for various requirements. Benefit from swift deliveries within 3 to 15 days, backed by our unwavering commitment to punctuality.

Our company provides and produces various cable assemblies in the fields of drones, AR/VR, AR, VR, etc. micro coaxial cables, radar/navigation, cameras, security monitoring, face recognition payment, etc., and has established cooperative relationships with customers. We have a strong and experienced technical team that can provide you with efficient solutions.

Factory Customized JST ZH 4 Pin Wire Harness OEM ODM

Advantages & Services:

Rigorous quality control and adherence to industry standards.
Low MOQs to accommodate diverse needs.
Swift delivery times with a guarantee of on-time delivery.
Responsive after-sales support and a 1-year warranty.
Extensive OEM/ODM services tailored to your specifications.
Assured product quality, on-time shipments, and payment protection.

FAQ:
• Q: Can I get some samples?
A: Yes, sample order is available for quality check and market test, and it will be freight collect payment.


• Q: What’s the delivery time?
A: It usually takes about 1- 3 days to produce samples.

It usually takes about 3-7 days to produce the products.


• Q: What’s your payment term?
A: We usually accept PAYPAL,T/T as the main payment term, and other payments can also be negotiated.


• Q: Quality problems?
A: If there is any quality problem or question, we could offer technical support or return service .


A:What other guarantees are there?

• Q: We have professionals to provide one-on-one after-sales service to provide buyers with the best after-sales service

A:How to contact us?

• Q:send your inquiry details in the below, click "send" now! free sample and best price are waiting foryou, if you can't find the product in our web, you can also send an inquiry to us, even if we don't make it, we will find the same product with good quantity and good price.
