26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
Specifications
Model Number :
RY-IDC-005X
Brand Name :
RY
Place of Origin :
Jiangsu, China
MOQ :
20
Gender :
female
Conductor range :
6~64P
Connector material :
Gold-plated /nickel-plated
Cable Pitch Range :
0.8mm, 1.0mm, 1.27mm
Connector Pins :
6~64P
IDC Type :
10cm, 15cm,30cm or customized
Connector pitch range :
1.27mm, 2.0mm, 2.54mm
Conductor range AWG :
26-30AWG
Cable Color :
Grey with red edge or Grey with Blue edge or black with white edge
Connector color :
Usually black, grey & red
Cable length :
10cm, 15cm,30cm or customized
Material :
SORY standard PBT
Terminals :
bronze and phosphor bronze
Rated Current :
1Amp
Maximum voltage :
AC 500V / 1Minute
Insulation resistance :
1000mΩ
Contact resistance :
15mΩ
Operating Temperature :
-40 ° C ~ + 105 ° C
Description

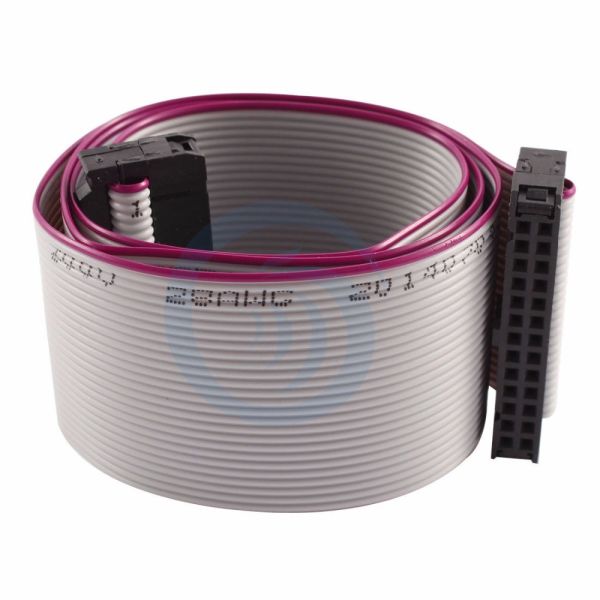

Factory Customization 2×13 26-Pin Black IDC Female with Grey and Pink Edge Flat Ribbon Cable Assembly
High-quality ribbon cable assembly designed for reliable data and power transmission in industrial and electronic applications.
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
Product Specifications
Cable Pitch Range 0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch Range 0.8mm, 1.27mm, 2.0mm, 2.54mm
Conductor Range 26-30AWG
Connector Pins 6-40P, 6-50P, 6-64P
Cable Color Grey with red edge, Grey with blue edge, or black with white edge
Connector Color Usually black, grey & red
Cable Length 10cm, 15cm, 30cm or customized
Applications Computer/Desktop data transfer, Power transfer, Electronics, Communication data transfer
Certified Hook Up wire, VDE, CSA
Material SORY standard PBT
Terminals Bronze and phosphor bronze
Connector Gold-plated / nickel-plated
Rated Current 1Amp
Maximum Voltage AC 500V / 1Minute
Insulation Resistance 1000mΩ
Contact Resistance 15mΩ
Operating Temperature -40°C to +105°C

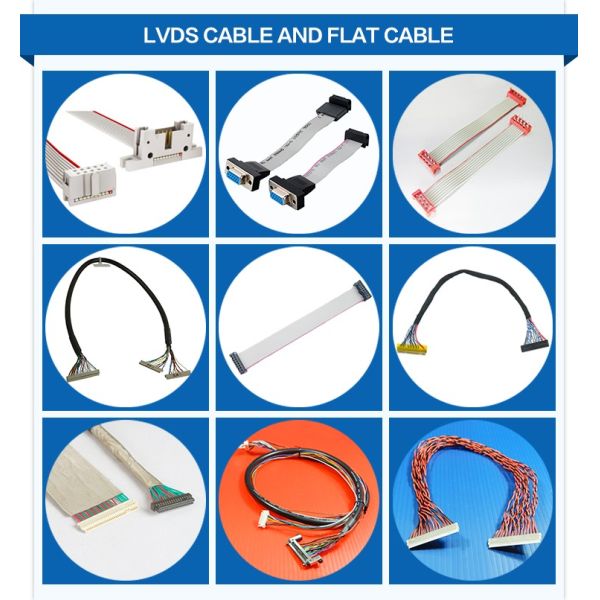

Related Products
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
Company Profile
26pin Flat Ribbon Cable Assembly with Customized Length and RoHS Certified IDC Cable
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
Our manufacturing facilities can build just about many types of custom cable assembly (LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our Advantages
  • Quality control: Most products have CE ROHS certificate and ISO9001:2008 certification
  • Low MOQ: 5pcs/10pcs/20pcs/50pcs, depending on different items
  • Fast Delivery Time: 2-15 days, On-Time Delivery
  • Good After-Sales Service: Technical support or return service in short time
  • 1 Year Warranty
  • OEM/ODM service
  • Trade Assurance with 100% product quality protection, on-time shipment protection, and payment protection
