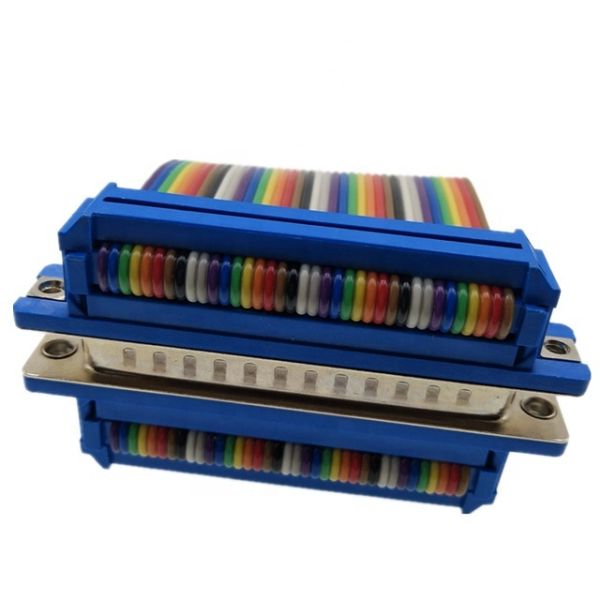

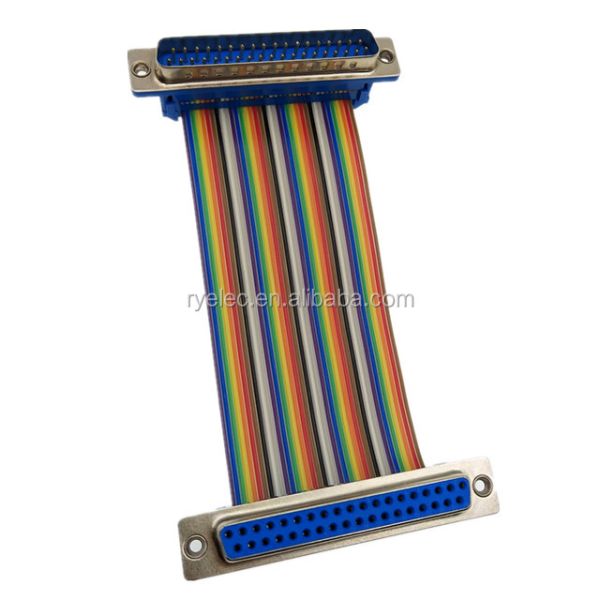

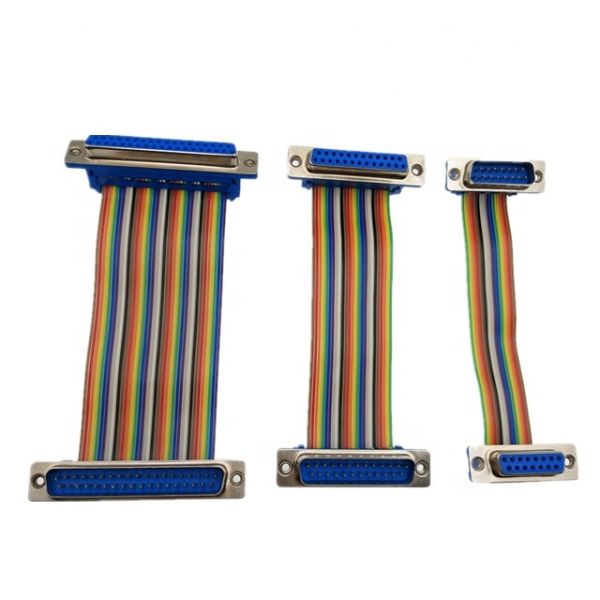

37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
37Pin D-SUB Flat Ribbon Cable with Gold-plated Connector and Customizable Length DB37 PIN Connector Cable Assembly
Specifications
Model Number :
RY-IDC-200
Brand Name :
RY
Place of Origin :
Jiangsu, China
MOQ :
20
Connector Pins :
6~64P
Conductor Range :
24-30AWG
Cable Pitch :
0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch :
0.8mm, 1.27mm, 2.0mm, 2.54mm
Cable Length :
10cm, 15cm, 30cm or customized
Rated Current :
1Amp
Max Voltage :
AC 500V / 1Minute
Insulation Resistance :
1000mΩ
Contact Resistance :
15mΩ
Operating Temperature :
-40°C ~ +105°C
Connector Material :
Gold-plated / nickel-plated
Terminals Material :
bronze and phosphor bronze
Cable Color :
Grey with red edge, Grey with Blue edge, black with white edge
Connector Color :
Black, grey, red
Wire Model :
UL2678, UL2651
Description
37-Pin D-SUB Flat Ribbon Connection Cable Assembly
Professional DB37 PIN connectors with male and female back shell configurations for reliable data and power transfer applications.
Product Specifications
Specification Details
Wire Model UL2678, UL2651
Cable Pitch Range 0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch Range 0.8mm, 1.27mm, 2.0mm, 2.54mm
Conductor Range 24-30AWG
Connector Pins 6-40P, 6-50P, 6-64P
Cable Color Grey with red edge, Grey with blue edge, or Black with white edge
Connector Color Black, Grey, Red
Cable Length 10cm, 15cm, 30cm or customized
Material SORY standard PBT
Terminals Bronze and phosphor bronze
Connector Plating Gold-plated / Nickel-plated
Rated Current 1Amp
Maximum Voltage AC 500V / 1 Minute
Insulation Resistance 1000mΩ
Contact Resistance 15mΩ
Operating Temperature -40°C to +105°C
Applications
Computer/Desktop data transfer, Power transfer, Electronics, Communication data transfer
Certifications
Hook Up wire, UL, VDE, CSA
