Specifications
Model Number :
RY-IDC-DB9-910
Brand Name :
RY
Place of Origin :
Jiangsu, China
MOQ :
20
Connector type :
D-SUB DB9 9 Pin Male to IDC Female
Cable pitch :
2.54MM
Conductor range :
6~64P
Connector plating :
Gold-plated /nickel-plated
Cable pitch range :
0.4mm,0.635mm, 1.0mm, 1.27mm
Connector pitch range :
0.8mm,1.27mm, 2.0mm, 2.54mm
Conductor gauge :
24-30AWG
Cable color :
Grey with red edge or Grey with Blue edge or black with white edge
Connector color :
Usually black, grey & red
Cable length :
10cm, 15cm,30cm or customized
Material :
SORY standard PBT
Terminals material :
bronze and phosphor bronze
Rated current :
1Amp
Maximum voltage :
AC 500V / 1Minute
Operating temperature :
-40 ° C ~ + 105 ° C
Description

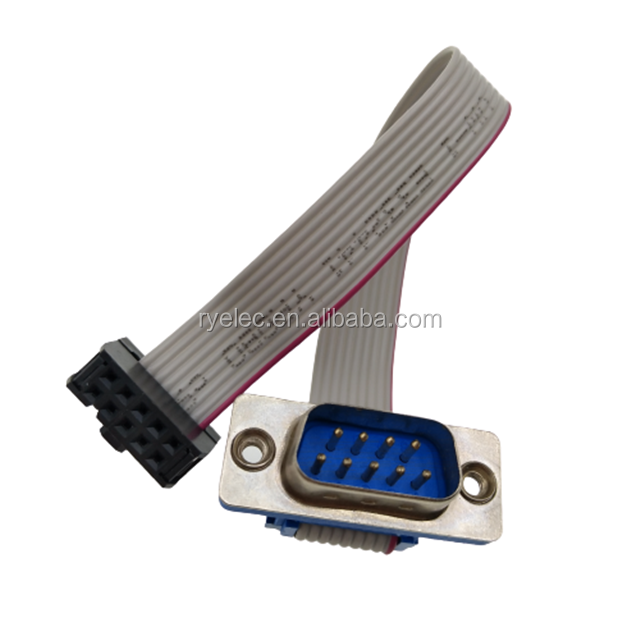

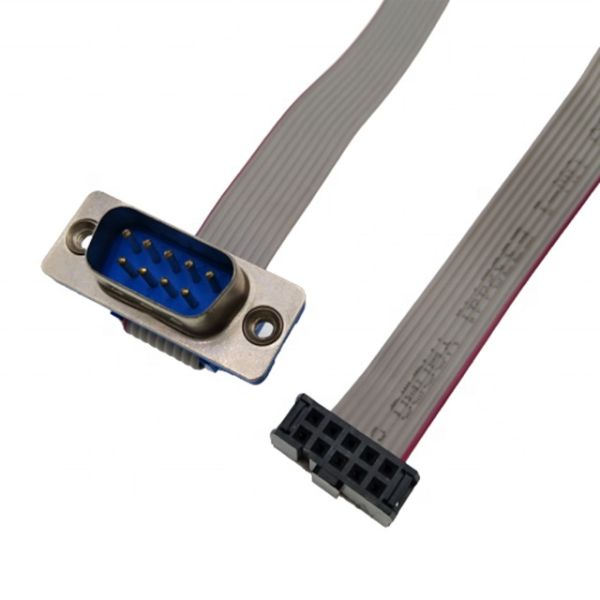

D-SUB DB9 9 Pin Male Connector to IDC Female 2.54MM 10 Pin Flat Ribbon Cable
Product Overview

This high-quality D-SUB DB9 9-pin male to IDC female 2.54mm 10-pin flat ribbon cable provides reliable connectivity for data and power transfer applications in industrial and electronic environments.

Technical Specifications
Specification Details
Wire Mold UL2678, UL2651
Cable Pitch Range 0.4mm, 0.635mm, 1.0mm, 1.27mm
Connector Pitch Range 0.8mm, 1.27mm, 2.0mm, 2.54mm
Conductor Range 24-30AWG
Connector Pins 6-40P, 6-50P, 6-64P
Cable Color Grey with red edge, Grey with blue edge, or Black with white edge
Connector Color Black, grey, or red
Cable Length 10cm, 15cm, 30cm or customized
Material SORY standard PBT
Terminals Bronze and phosphor bronze
Connector Plating Gold-plated / nickel-plated
Rated Current 1Amp
Maximum Voltage AC 500V / 1 Minute
Insulation Resistance 1000mΩ
Contact Resistance 15mΩ
Operating Temperature -40°C to +105°C
Applications

Computer/desktop data transfer, power transfer, electronics, communication data transfer

Certifications

Hook Up wire, UL, VDE, CSA

D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications
About RY Electronics

RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

Our manufacturing facilities can build just about many types of custom cable assembly (LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our Advantages
  • Quality control: Most products have UL, CE, ROHS certification and ISO9001:2008
  • Low MOQ: 5pcs/10pcs/20pcs/50pcs, depending on different items
  • Fast Delivery Time: 2-15 days, On-Time Delivery
  • Good After-Sales Service: Technical support or return service available
  • 1 Year Warranty
  • OEM/ODM service
  • Trade Assurance with 100% product quality, on-time shipment, and payment protection
D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications
Certifications
D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications
Packing & Delivery
D-SUB DB9 to IDC Flat Ribbon Cable Assembly with Gold-plated Connector and 2.54MM Pitch for Customizable Length Applications
Frequently Asked Questions
When can we get the reply?
Any inquiries will be replied within 24 hours.
Can I get some samples?
Yes, sample order is available for quality check and market test, and it will be freight collect payment.
What's the delivery time?
It usually takes about 1-3 days to produce samples. It usually takes about 3-7 days to produce the products.
What's your payment term?
We usually accept PAYPAL, T/T as the main payment term, and other payments can also be negotiated.
Quality problems?
If there is any quality problem or question, we could offer technical support or return service.
How to contact us?
Send your Inquiry Details in the Below, Click "Send" Now !!! Free sample and best answers are waiting for you.
