Specifications
Brand Name :
RY
Model Number :
RY-YG-2021324
Certification :
CE,ROHS
Place of Origin :
china
MOQ :
20pcs
Price :
USD7-9
Payment Terms :
L/C, T/T,Paypal, Western Union,
Supply Ability :
10000pcs
Delivery Time :
Shipped in 3 days after payment
Frequency: :
2.4GHz & 5GHz Antenna, yagi
VSWR: :
1.5
gain: :
28DBi
Connector: :
SM-A etc
Description
Electrical Specifications
Frequency range(MHz)
600-2700
Bandwidth(MHz)
28
Gain(dBi)
28
Half-power beam width(°)
H:70 V:55
VSWR
≤1.5
Input Impedance(Ω)
50
Polarization
Horizontal and Vertical
Maximum input power(W)
50
Lightning protection
DC Ground
Input connector type
RP-SMA-J-custom connector
Mechanical Specifications
Dimensions-mm (Length)
630
Antenna weight(kg)
0.3
Operating temperature(°c)
-40~+60
Rated Wind Velocity(m/s)
60
Waterproof Standard
IP54/ IP65/ IP67
Mounting way
Wall-mounted/ Pole-holding
Mounting hardware(mm)
40-50

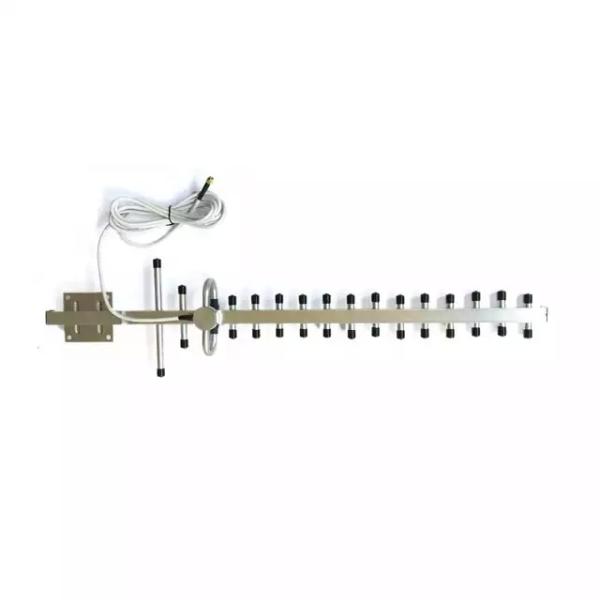

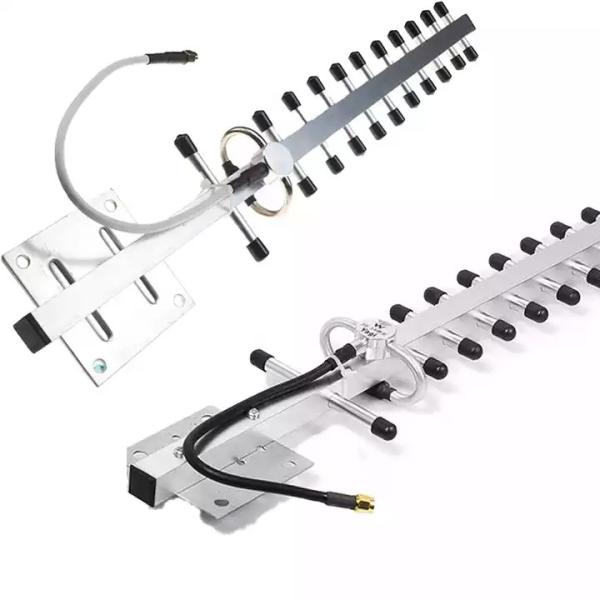

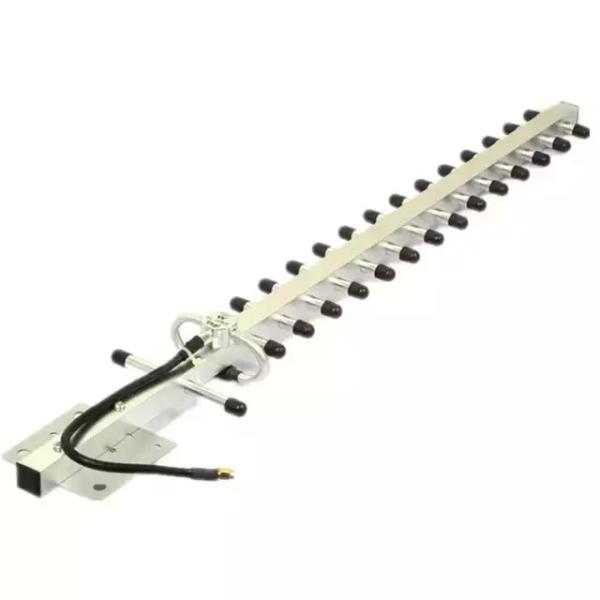

28dbi 600-2700mhz 4G Lte External Wifi Antena Outdoor 4g Yagi Antenna 16 Elements communication antenna

Key sepcification:


28dbi 2700mhz 4G Lte External Wifi Antena Outdoor 4g Yagi 16 Elements28dbi 2700mhz 4G Lte External Wifi Antena Outdoor 4g Yagi 16 Elements28dbi 2700mhz 4G Lte External Wifi Antena Outdoor 4g Yagi 16 Elements
Product shows:

Our Company:
1. RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.

2. Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.

Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.

2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.

3. Fast Delivery Time :2~15 days, On-Time Delivery.

4. Good After-Sales Service: we could offer technical support or return service in short time.

5. 1 Year Warranty.

6. OEM/ODM service.

7. We are available with Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount


FAQ:
1. When can I ?
We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2. How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality.

3. What's your delivery time?

If our company have stock, will send to you within one day once receive your fee.

If use customer brands, we will take a 3-5days to prepare materials and mass production.

4. Do you accept customized ?

Sure! We have own professional researching team and we do produce as customer requirement .OEM&ODM are welcome.


5. What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order. The lead time of MOQ is about 10 to15 days. Generally speaking, all of the goods can be reach your address within 4 weeks.

6. What is your terms of delivery?
We are accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or most cost-effective for you.
