T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure
Specifications
Brand Name :
BYF
Model Number :
T815FC
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, , Cash
Supply Ability :
10000 Piece/Pieces Per Month
Delivery Time :
15 Days
Packaging Details :
By The Requirement Of Customer
Brake Chamber Type :
2424DP
OEM NO :
443612164007
BYF NO. :
T815FC
Material :
Aluminum
Stroke :
140mm
Air Inlet Thread :
M22*1.5
Weight :
3.6 KG
Connect Fork Pin Diameter :
14mm
Application :
Truck/Trailer
Color :
Black
Size :
24
Operating Temperature :
-40°C to 80°C
Sealing Material :
Nitrile Rubber
Pushrod Length :
6.5 inches
Rod Thread Length :
33mm
Piston Type :
Single Piston
Warranty :
1 year
Port Size :
1/4 inch
Valve Type :
Check
Operating Temperature Range :
-40°F to 200°F
Model :
BC-100
Oe No :
925 302 002 0
Description

OEM QUALITY BRAKE CHAMBER T815FC

T815FC Brake Chamber. 140mm stroke.

Working Pressure 800KPa
Maximum Working Pressure 1MPa
Pushrod Stroke 0 - 140mm
Ambient Temperature - 40 ~ +80°C
Surface Finish 100hrs clear or yellow zinc plated, black powder coating
Service Time ≥1,000,000 times
Life-time For Parking Chamber ≥200,000 times

Product Details

T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure

T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure

T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure

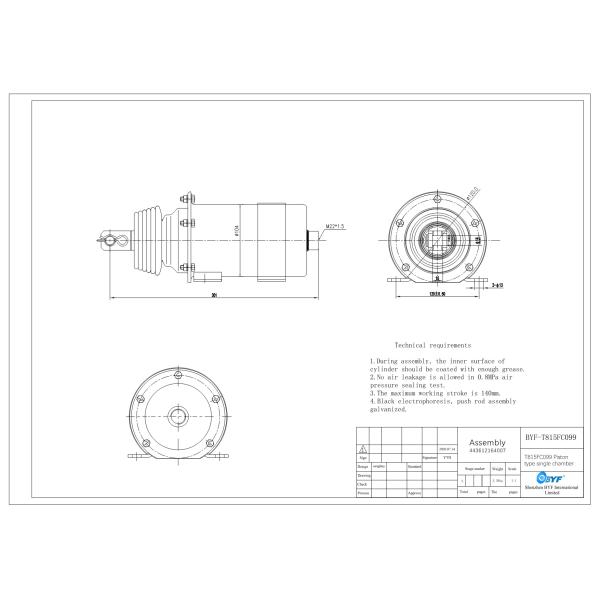

Drawing Details

T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure

Other Models For Your Choice

T3030DD-L(SEALED) 　 T2424DCP
T2430DD-L(SEALED) 　 T2024DCP
T3030DD(SEALED) 　 T1624DCP
T2430DD(SEALED) 　 T30
T3030DD 　 T24
T2430DD 　 T20
T2424DD 　 T16
T2024DD 　 T12
T1624DD 　 T9
T3030DP 　 T30-L
T2430DP 　 T24-L
T3024DP 　 T20-L
T2424DP 　 T30-DISC
T2024DP 　 T24-DISC
T1624DP 　 T20-DISC
T2430DP-DISC 　 T16-DISC
T2424DP-DISC 　 T9/6200
T2024DP-DISC 　 T12/6200
T1624DP-DISC 　 T12/1200

Packing & Delivery

1. Brake chamber 2pcs/carton, 1x20GP: 1800pcs

2. Neutral packing, brand packing, corrugated box

3. Or as your request packing brake chamber

T815FC Brake Chamber with 140mm Pushrod Stroke and 800KPa Working Pressure

Fatigue Testing

Excellent Pre-sale Service

1. According to your specification request, provide the best price for you.

2. After you confirmed the specification and price, our engineers will draw a Official Drawing for you confirm.

3. After our Finance Department confirmed your deposit or Irrevocable L/C, we will start manufacture the products for you.

4. Update the progress of production to you in time, to help you know your order details progress.

5. After the product manufacture finished, if you need, we will arrange shipping for you.

With our professional skill, you just need to pick your products up at the destination place, and don’t need to worry about the shipping at all.
