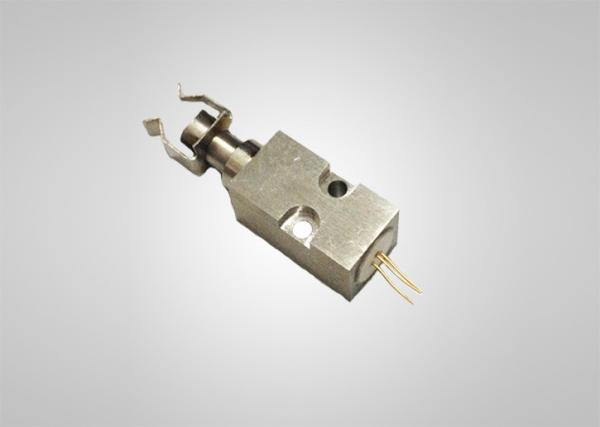

Printing Fiber Coupled Diode Laser 405nm 160mW With 40µm Fiber
Printing Fiber Coupled Diode Laser 405nm 160mW With 40µm Fiber
Specifications
Place of Origin :
China
Brand Name :
BWT
Certification :
ISO9001
Model Number :
K405E03CN-0.160W
MOQ :
1 Piece/Pieces
Packaging Details :
Coaxial
Delivery Time :
3-6weeks
Payment Terms :
T/T
Supply Ability :
100,000/year
Description

Features:

405nm wavelength

160mW output power

40µm fiber core diameter

0.22N.A.

Applications:

Printing

Specifications(25℃) Symbol Unit K405E03CN-0.160W
Minimum Typical Maximum

Optical Data

 CW-Output Power Po mW 160 - -
Threshold current Ith mA 30
Operating current Iop mA 150
Operating voltage Vop V 5.5
Reverse Voltage Vre V 5.5
Slope Efficiency η W/A 1.4
Electrical-to-Optical Efficiency PE % 20
Center wavelength ʎc nm 400 410
Spectral width(FWHM) Δʎ nm 4
Wavelength Shift with Temperature - nm/℃ 0.3
Fiber Data Core Diameter Dcore µm 40
Numerical Aperture NA NA 0.22
Others ESD Vesd V 500
Storage Temperature Tstg ℃ -20 70
Lead Soldering Temp Tls ℃ 260
Lead Soldering Time t sec 10
Operating case temperature Top ℃ 15 35
Relative Humidity RH % 15 75
