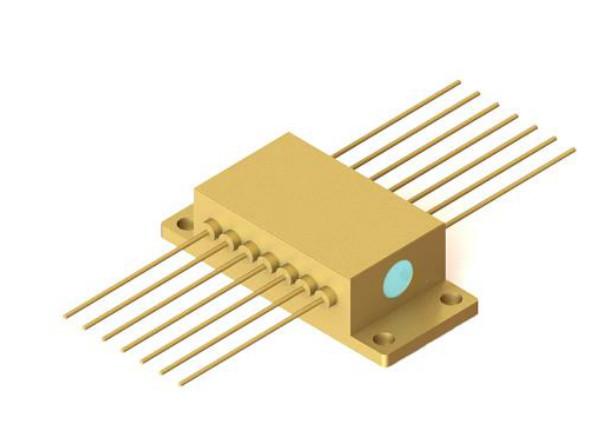

785nm 600mw Medical Fiber Coupled Diode Laser
785nm 600mw Medical Fiber Coupled Diode Laser
Specifications
Brand Name :
BWT
Model Number :
K785AFLWN-0.600W
Certification :
ISO
Place of Origin :
China
MOQ :
1 Piece/Pieces
Payment Terms :
T/T
Supply Ability :
100,000/year
Delivery Time :
4-8weeks
Laser type :
Diode laser
Feature :
600mW
Function :
Sensing
Application :
Sensing
name :
785nm 600mw Medical Fiber Coupled Diode Laser
Description

785nm 600mw Medical Fiber Coupled Diode Laser

Features:
  • 785nm wavelength
  • 0.6W output power
  • △λ<0.1nm
Applications:
  • Raman Spectroscopy
  • Sensing
  • Medical
Specifications(25℃) Symbol Unit K808F02MN-15.00W
Minimum Typical Maximum
Optical Data
(1)
 CW-Output Power Po W 0.6 - -
Center Wavelength λc nm 785±0.5
Spectral width(FWHM) △​λ nm <0.1
Wavelength Shift with Temperature △​λ/△T nm/℃ - 0.01 -
Wavelength Shift with Current
△​λ/△A
 nm/A - 0.03 -
Electrical
Data
 Electrical-to-Optical Efficiency PE % - 30 -
Threshold Current Ith A - 0.4 -
Operating Current
Iop A - 1.1 -
Operating Voltage Vop V - 1.8 -
Slope Efficiency η W/A - 1.0 -
Thermistor - Rt (KΩ)/β(25℃) - 10±3%/3477 -
PD Data Current Imo μA 50 - 500
TEC TEC Max. Current Itec A - - 2.2
TEC Max. Voltage Vtec V - - 8.7
Others ESD Vesd V - - 500
Storage Temperature Tst ℃ -20 - 70
Lead Soldering Tempreature Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 20 - 35
Relative Humidity RH % 15 - 75
