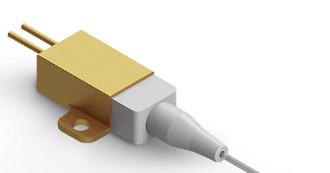

Compact Fiber Coupled Bwt Laser Diode 976nm 9w
Compact Fiber Coupled Bwt Laser Diode 976nm 9w
Specifications
Place of Origin :
China
Brand Name :
BWT
Certification :
ISO9001
Model Number :
K976AB2RN-9.000W
MOQ :
1 Piece/Pieces
Delivery Time :
4-8weeks
Payment Terms :
T/T
Supply Ability :
100,000/year
Power :
9W
Wavelength :
976mm
Applications :
Fiber laser pump source
Fiber core diameter :
105μm
Optical fiber numerical aperture :
0.22NA
name :
976nm-9W
Description

976nm-9W

Key Features:

  • 976nm wavelength
  • 9W output power
  • 105μm fiber core diameter
  • 0.22NA
  • 1020nm~1200nm feedback protection

Applications:

  • Fiber laser pump source

Specifications(25℃)

Symbol

Unit

 K976AB2RN-9.000W
Minimum Typical Maximum
Optical Data CW-Output Power Po W 9 - -
Center Wavelength λc nm 976±0.5
Spectral Width (FWHM) △λ nm

-

 - 0.7
Wavelength Shift with Temperature △λ/△T nm/℃ - 0.02 -
Wavelength Shift with Current △λ/△AT nm/A - 0.03 -
Electrical Data Electrical-to-Optical Efficiency PE % - 50 -
Threshold current lth A - 0.9 -
Operating current lop A - 12 13
Operating voltage Vop V - 1.6 1.8
Slope Efficiency η W/A - 0.9 -

Fiber Data

 Core diameter Dcore μm - 105 -
Cladding Diameter Dclad μm - 125 -
Numeric Aperture NA - - 0.22 -
Fiber Length L m - 1 -
Fiber Loose Tubing Diameter - mm - 0.9 -
Minimum Bending Radius - mm 50 - -
Fiber termination - - - None -
Feedback lsolation Wavelength Range - nm 1020-1200
lsolation - dB - 30 -
Others ESD Vesd V - - 500
Storage temperature Tst ℃ -20 - 70
Lead Soldering Temp Tls ℃ - - 260
Lead Soldering Time t sec - - 10
Operating case temperature Top ℃ 20 - 30
Relative Humidity RH % 15 - 75
