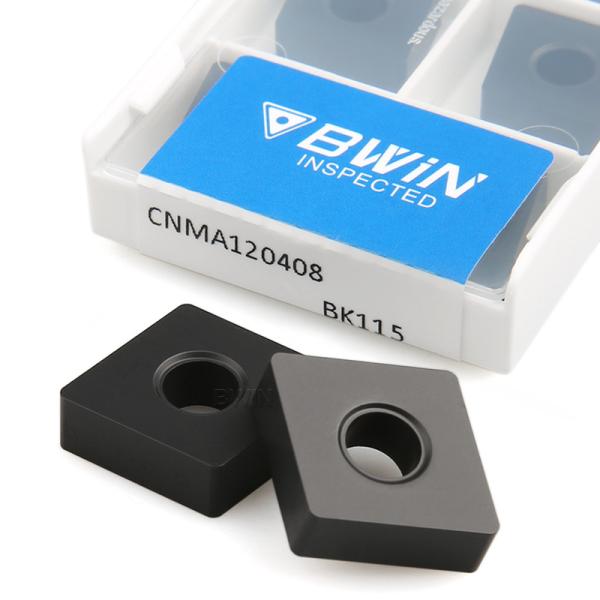

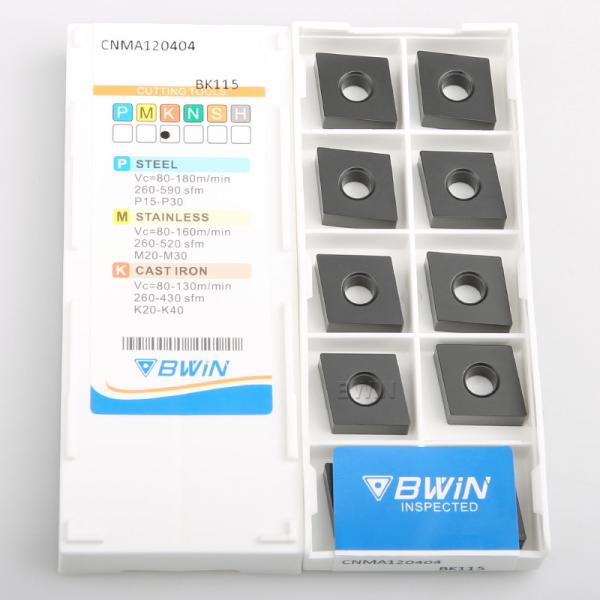

Custom Cnc Turning Carbide Inserts Cnma 120404 120408 PVD Cast Iron Cutting Tool
Custom Cnc Turning Carbide Inserts Cnma 120404 120408 PVD Cast Iron Cutting Tool
Custom Cnc Turning Carbide Inserts Cnma 120404 120408 PVD Cast Iron Cutting Tool
Custom Cnc Turning Carbide Inserts Cnma 120404 120408 PVD Cast Iron Cutting Tool
Specifications
Brand Name :
BWIN
Model Number :
Cnmg120408
Place of Origin :
China
MOQ :
10pcs/box
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
1-10000pcs 7days
Delivery Time :
7 work days
Packaging Details :
Plastic box
Product name :
Custom Cnma Tungsten Carbide Turning Insert
Material :
Cast Iron Tungsten Turning Carbide Inserts
Workpiece :
Cast iron
Usage :
Turning Cutting Tool
Color :
Black
Coating :
PVD CVD
Hardness :
HRC40-60
Feature :
Wear resistant and durable
Application :
Cnc Lathe Tool
Package :
10pcs/Box
Description

Custom Cnma 120404 120408 120412 Turning Carbide Inserts Turning Cast Iron Cutting Tool

Quick Detail:

  • Excellent substrate
  • High strength cutting edge
  • Precision coating
  • Durable
  • More resistant to high temperature
  • Wear resistant and durable
  • Smooth cutting
  • Widely used

Description:

  • CNMA tungsten turning carbide inserts adopts new coating and new substrate technology, with high hardness, wear resistance and more stable processing; Smooth chip removal, smooth cutting and good chip breaking effect; High precision grinding technology, reducing vibration, not easy to break the knife, can play a long life; Sharp blade, small resistance, fast improvement of processing efficiency

Specifications:​

Brand BWIN
Model CNMA120404 CNMA120408 CNMA120412
Color Black
Workpiece Cast iron
Type CNC Cast Iron Cutting Tool
Material Tungsten Turning Carbide Inserts
Processing Type Medium Cutting
Feature Excellent substrate
High strength cutting edge
Precision coating
More resistant to high temperature

Widely used
Standard ISO
Quantity 10pcs/box
Weight 0.015kg
Package Plastic Box
Customized Support OEM, ODM

Lead Time:

antity(pieces) 1 - 3000 >3000
Lead time (days) 7 To be negotiated

Custom Cnc Turning Carbide Inserts Cnma 120404 120408 PVD Cast Iron Cutting Tool

I(mm)
d(mm)
t(mm)
d1(mm)
09
9.525
3.18
3.81
12
12.7
4.76
5.16
16
15.875
6.35
6.35
19
19.05
6.35
7.93

Notice:

  • The tungsten turning carbide inserts shall not be collided or dropped on the ground and must be handled with care.
  • Before installing the tungsten turning carbide inserts, the performance and purpose of the saw table must be confirmed to ensure that the cutting direction indicated by the blade arrow is consistent with the rotation direction of the saw table. It is strictly prohibited to install in the opposite direction. Wrong installation direction may cause the blade sawtooth to fall off, so as to prevent accidents.
  • After installation, it is necessary to confirm whether the central hole of the turning carbide inserts is firmly fixed on the flange plate of the saw table. If there is a gasket, the gasket must be sleeved; Then, gently push with your hand to confirm whether the blade rotates eccentrically.
  • When using, do not exceed the specified high speed
  • When the tungsten turning carbide inserts are not used, hang the blade vertically on the dry shelf.

Applications:

Our tungsten turning carbide inserts could to be processed Alloy steel, Tool steel, carbon steel, stainless steel, Cast iron and Titanium alloy. Working material as following:

Custom Cnc Turning Carbide Inserts Cnma 120404 120408 PVD Cast Iron Cutting Tool

FAQ
1. Flank Wear? Higher cutting resistance,Notch wear on flank,Poor roughness of surface, or deterioration of accuracy.
Soft grades,Excessive cutting speed,Small flank angle,Low feed.
Select a higher,wear-resistant grade,Reduce cutting speed,Increase flank angle,Increase feed.
2. Crater Wear? Uncontrolled chip,Poor surface quality,when finishing High speed processing carbon steel
Soft grades,Excessive cutting speed,Excessive feed,The strength of chip breaker Insufficiet.
Change to a higher wear-resistant grade,Reduce cutting speed,Reduce feed,Select a higher strength chip breaker.
3. Chipping? Sudden fracture of cutting edge(rake face and flank),Instability insert life
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle
4. Insert Fracture? Cutting resistance increased Poor surface roughness.
Toughness insufficient,Excessive feed rate,Strength of cutting edge insufficient,Instability of the tool.
Select a tougher grade,Decrease feed rate,Increase honing of cutting edge(chamfering to rounding),Increase the stability and setting angle.
5. Plastic Deformation? Variation of dimension Nose wear,cutting edge drape or passivating.when processing alloy steel Poor surface roughness
Soft grade,Excessive cutting speed,Excessive cutting depth and feed rate,Overheat on cutting edge.
Select a higher red hardness cutting material,Decrease cutting speed,Decrease cutting depth and feed rate,Select a higher thermal conductivity cutting material(CVD+sufficient coolant).
6. Build-Up-Edge? Workpiece dissove with Cutting edge Poor surface roughness when finishing,Cutting resistance increased,Cutting soft materials.
Cutting speed too low,Cutting edge obtuse,Unsuitable tool material. Increase cutting speed,Increase rake angle,Select small sticking force.
