TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
TRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables
Specifications
Model Number :
TRX142
Place of Origin :
Shanghai, China
Brand Name :
Bing Wire & Cable
MOQ :
1000M
Price :
$0.18-1.52 / foot
Certification :
CE/RoHS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000M 7 work days
Delivery Time :
10-15 work days
Type :
Triaxial Cable
Conductor Material :
Silver-plated Copper
Insulation :
PTFE
Inner Shield :
Silver Plated Copper Braid
Inner Jacket :
FEP
Outer Shield :
Silver Plated Copper Braid
Oute Jacket :
FEP
Impedance :
50 Ohm
Temperature :
-55°C~+200°C
Description
Product Description

The TRX-142 triaxial cable is a high-performance 50 Ohm triaxial cable engineered for demanding applications requiring maximum signal integrity and superior electromagnetic interference (EMI) protection. Operating over a broad temperature range from -55°C to +200°C with frequency capability up to 8 GHz, the TRX-142 triaxial coax ensures clean, accurate signal transmission in the most electrically noisy environments.

Key Features
  • Double Silver-Plated Copper Braid Shielding – Inner and outer silver-plated braids offer outstanding EMI/RFI protection, ensuring signal purity in sensitive applications.
  • 50 Ohm Impedance – Industry standard impedance optimized for RF, telecommunications, and high-precision test equipment.
  • PTFE Dielectric & FEP Jacket – Delivers stable electrical performance, low loss, and excellent chemical and UV resistance across a wide -55°C to +200°C temperature range.
  • High Frequency Capability – Designed for operation up to 8 GHz, supporting a wide range of high-speed applications.
  • Rugged & Durable – Stranded silver-plated copper-covered steel center conductor provides both flexibility and mechanical strength for reliable handling.
Application
  • Aerospace and Defense – Reliable video and data transmission for avionics, radar systems, and mili tary communication equipment requiring MIL-spec performance and ruggedness.
  • Broadcast and Professional Video – Interference-free connectivity for high-end cameras, production equipment, and video distribution in studio environments.
  • Medical Imaging – Clean signal delivery for MRI, endoscopy, and diagnostic systems where signal accuracy is critical to image quality.
  • Telecommunications Infrastructure – Stable 50 Ohm transmission for base stations, antennas, and RF equipment up to 8 GHz.
  • Industrial and Nuclear Instrumentation – Reliable operation in harsh industrial environments with high electromagnetic interference and extreme temperatures.
Why Choose Our TRX Coaxial Cable?

1.Exactly Signal Accuracy:True triaxial "guard" conductor cancels leakage and rejects EMI—so your data is fact, not fiction.

2.Lower Cost of Ownership:8GHz bandwidth, -55°C to +200°C range, and rugged FEP jacket mean one cable for multiple jobs, fewer failures, and long-term savings.

3.Mission-Critical Reliability:MIL-DTL-17 compliant ,100% confidence for aerospace, defense, and medical applications.

Specification

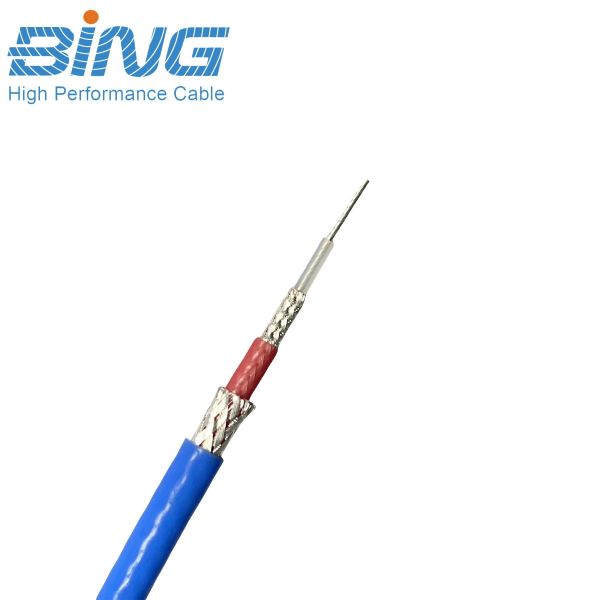

Structure

 Material Diameter(mm)
1. Inner Conductor Sliver-plated Copper Wire 0.94
2. Insulation PTFE 3.00
3. Inner Shield Sliver-plated Copper Wire Braid 3.50
4. Inner Jacket FEP 4.22
5. Outer Shield Sliver-plated Copper Wire Braid 4.72
6. Outer Jacket FEP 5.46
Parameters
Capacitance(pF/m) 96.45
Impedance(ohm) 50
Velocity(％) 70
Minimum Bending Radius(mm) 28
Maximum Voltage(VMS) 1900
Maximum Frequency(MHz) 8000
Temperature Range(℃) -55～+200
Attenuation
Frequency(MHz) Attenuation(dB/100m)
100 12.5
400 25.6
1000 42.0
3000 78.1
5000 105.0
Product Detail

TRX142 Triaxial Cable 50 Ohm for Low Loss Communication CablesTRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables

TRX142 Triaxial Cable 50 Ohm for Low Loss Communication CablesTRX142 Triaxial Cable 50 Ohm for Low Loss Communication Cables

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
