AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment
AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment
AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment
AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment
AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment
AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment
Specifications
Model Number :
AFR250-2Q
Brand Name :
Baiyin Cable
Place of Origin :
Shanghai, China
MOQ :
1000 meters
Price :
$0.05-0.38 / meter
Certification :
CE/RoHS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000M 7work days
Delivery Time :
10-15 work days
Conductor Material :
Silver Plated Copper
Diameter :
1.00-3.70mm
Insulation Material :
PTFE
Rated voltage :
250V
Temperature :
-60℃-+200℃
Application :
Auto, Industrial, Electronics, Power, Cable, Electric Appliance, Other
Description
Product Description

Combining the superior conductivity of silver-plated copper with the rugged durability of PTFE film wrapping, the AFR-250-2Q is the definitive choice for 200°C high temp applications. Its unique thin-wall construction provides enhanced protection and flexibility, making it ideal for weight-sensitive aerospace platforms and industrial control cabinets.

Key Advantages
  1. Extreme Heat Resistance: 200°C continuous operation prevents insulation failure in engine bay and avionics environments.
  2. Lightweight Thin-Wall Design: Thin-wall FEP-46 insulation reduces overall diameter and weight by up to 30%, enabling high-density wiring in compact avionics bays.
  3. Chemical & Fuel Resistance: Silver-plated copper conductor and PTFE insulation resist oxidation, corrosion, and exposure to aviation fuels and lubricants.
  4. Flux-Free Soldering: Direct, flux-free soldering reduces assembly time and avoids flux residue-related failures in critical avionics systems.
Application

  • Electronic/electrical fields (≤250℃ ambient/conductor temp).

  • Systems with heavy current overload or mechanical stress.

  • Instruments/electronic devices with limited space & weight sensitivity.

Why Choose Our Product?

  • Superior Flexibility: Film-wrapped construction outperforms extruded alternatives in tight spaces.

  • Enhanced Durability: Exceptional resistance to vibration, flexing, and mechanical stress.

  • Process-Friendly: Direct solderable without flux, resistant to soldering iron damage.

  • Proven Reliability: Compliant with stringent mili tary/aerospace standards.

  • Versatile Selection: Wide range of colors and custom options available.

Specification

Model Cross-
sectional area
(mm²)		 Conductor
No/Dia.
(mm)		 Nominal diameter
(mm)		 Maximum direct current resistance
(ohm/km)		 Weight
of the wire
(g/m)
AFR-250-2Q 0.035 7/0.08 0.53 520 0.80
AFR-250-2Q 0.055 7/0.10 0.6 310 1.10
AFR-250-2Q 0.054 19/0.06 0.62 315 1.20
AFR-250-2Q 0.08 7/0.12 0.66 210 1.48
AFR-250-2Q 0.095 19/0.08 0.69 190 1.75
AFR-250-2Q 0.14 7/0.16 0.8 130 2.00
AFR-250-2Q 0.15 19/0.10 0.8 120 2.20
AFR-250-2Q 0.15 30/0.08 0.8 120 2.00
AFR-250-2Q 0.22 7/0.20 0.91 80 3.00
AFR-250-2Q 0.2 19/0.12 0.91 81 3.00
AFR-250-2Q 0.2 42/0.08 0.91 81 3.00
AFR-250-2Q 0.37 7/0.26 1.05 50 4.40
AFR-250-2Q 0.38 19/0.16 1.1 47 4.60
AFR-250-2Q 0.38 75/0.08 1.1 47 4.60
AFR-250-2Q 0.5 19/0.18 1.2 37 5.72
AFR-250-2Q 0.53 105/0.08 1.25 35 6.23
AFR-250-2Q 0.62 19/0.20 1.33 29 7.00
AFR-250-2Q 0.75 19/0.23 1.48 23 9.07
AFR-250-2Q 0.75 150/0.08 1.48 23 4.83
AFR-250-2Q 1 210/0.08 1.68 18 11.94
AFR-250-2Q 1.2 240/0.08 1.76 15 13.43

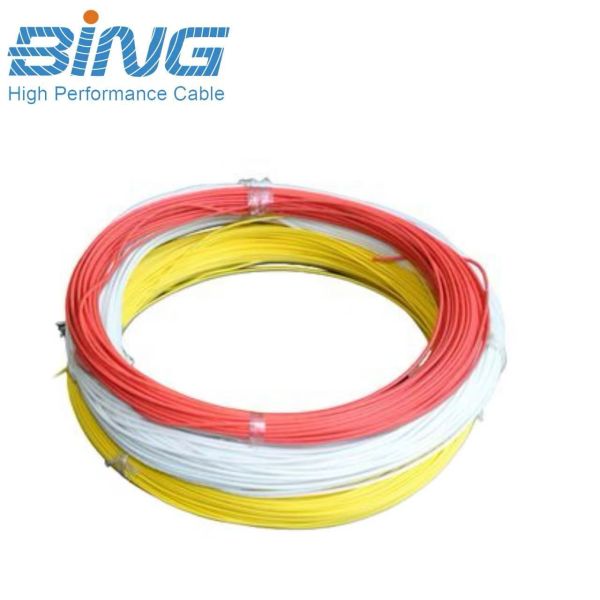

Picture Detail

AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial EquipmentAFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment

AFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial EquipmentAFR250-2Q PTFE Taped Wire 250V Thin-Wall High-Temp for Power and Auto Industrial Equipment


FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
