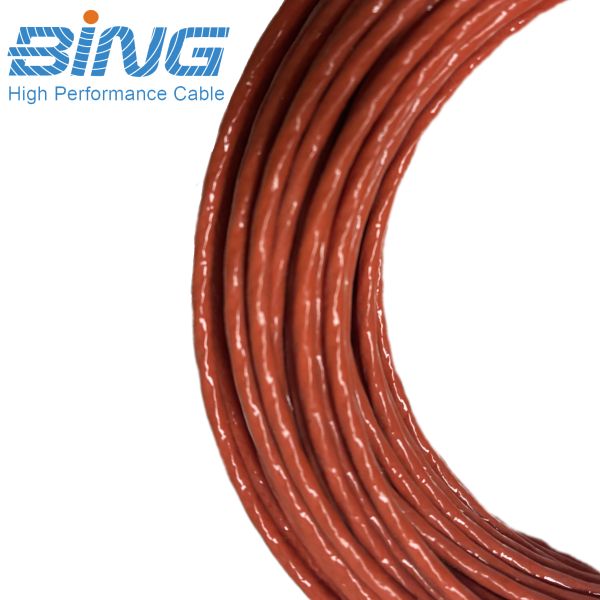

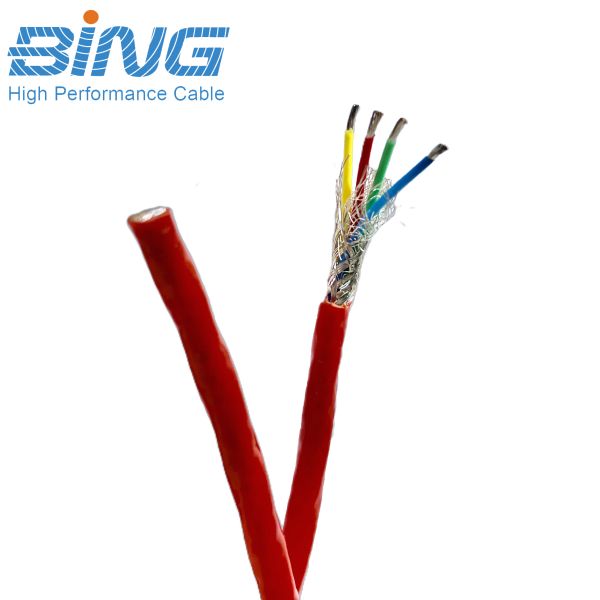

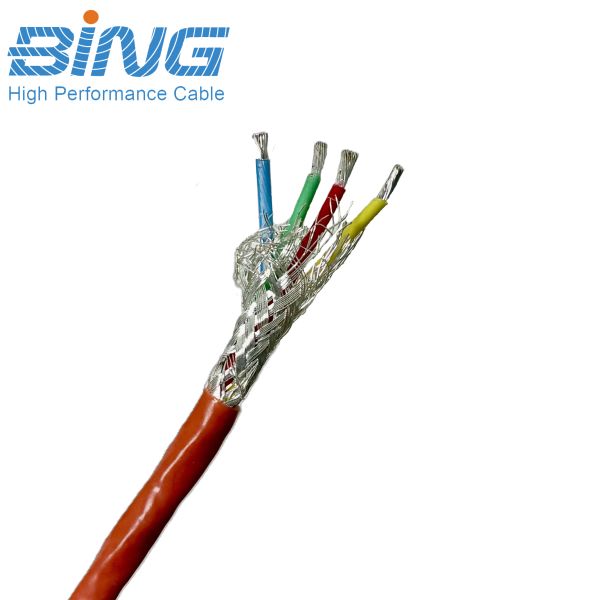

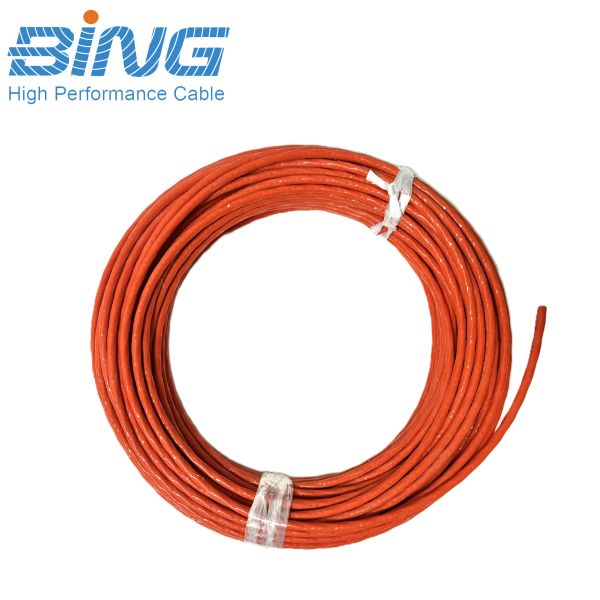

The EE xxxx SBK 1-4 SPC series is a high‑voltage shielded multicore cable designed for applications that require 1000V AC rating, large conductor cross‑sections, and robust EMI protection. It features an extruded PTFE insulation, a silver‑plated copper braid shield, and an extruded FEP outer jacket. This series is available with SPC (silver‑plated annealed copper) conductor only – optimized for maximum conductivity. Four mechanical versions (single core SBK1, twisted pair SBK2, twisted triples SBK3, twisted quads SBK4) provide shielding and jacketing from lightweight to heavy‑duty, making the EE series ideal for power distribution, high‑voltage sensors, aerospace power lines, and industrial high‑current applications.
* Model:EE xxxx SBK 1-4 SPC
* Insulation:PTFE/FEP
* Conductor: Electrolytic silver plated annealed copper (SPC)
* Rated voltage: 1000 volts AC
* Rated operating temperature: -90℃ to +200℃
* Multiple core: single core(SBK1), twisted pair(SBK2), twisted triples(SBK3) ,twisted quads(SBK4) for you to choose or more cores for custom
* Colors: Black,brown,red,orange,yellow,green,blue,purple,gray,white, transparent,two-color stripes or other colors specified by the customer
1000V AC rating – high dielectric strength, suitable for power and high‑voltage signal transmission
Large conductor sizes – from 1.00 mm up to 3.10 mm , capable of carrying several to tens of amperes
PTFE insulation – low dielectric loss, wide temperature range, excellent chemical resistance
Silver‑plated copper braid shield – effective EMI/RFI attenuation, oxidation resistant
Extruded FEP jacket – abrasion resistant, flame retardant, resistant to oils and solvents
Specification
| BING' REFERENCE |
PRIMARY WIRE | SHIELDING | JACKET | ||||||||
| REFERENCE | NOMINAL Ø (mm) |
NOMINAL Ø (inch) |
STRAND Ø (mm) |
STRAND Ø (inch) |
NOMINAL BRAIDED SHIELD Ø (mm) |
NOMINAL BRAIDED SHIELD Ø (inch) |
NOMINAL OUTER Ø (mm) |
NOMINAL OUTER Ø(inch) |
APPROX. WEIGHT (g/m) |
APPROX. WEIGHT (Ibs/100ft) |
|
| EE 3207 SBK1 | EE 3207 | 1.00 | 0.039 | 0.102 | 0.0040 | 1.45 | 0.057 | 1.90 | 0.075 | 9.10 | 0.61 |
| EE 3007 SBK1 | EE 3007 | 1.05 | 0.041 | 0.102 | 0.0040 | 1.50 | 0.059 | 1.95 | 0.077 | 9.60 | 0.65 |
| EE 2807 SBK1 | EE 2807 | 1.10 | 0.043 | 0.102 | 0.0040 | 1.55 | 0.061 | 2.00 | 0.079 | 10.40 | 0.70 |
| EE 2607 SBK1 | EE 2607 | 1.25 | 0.049 | 0.102 | 0.0040 | 1.70 | 0.067 | 2.15 | 0.085 | 12.90 | 0.87 |
| EE 2619 SBK1 | EE 2619 | 1.25 | 0.049 | 0.102 | 0.0040 | 1.70 | 0.067 | 2.15 | 0.085 | 12.00 | 0.81 |
| EE 2407 SBK1 | EE 2407 | 1.35 | 0.053 | 0.102 | 0.0040 | 1.80 | 0.071 | 2.25 | 0.089 | 14.20 | 0.95 |
| EE 2419 SBK1 | EE 2419 | 1.35 | 0.053 | 0.102 | 0.0040 | 1.80 | 0.071 | 2.25 | 0.089 | 13.30 | 0.89 |
| EE 2207 SBK1 | EE 2207 | 1.50 | 0.059 | 0.102 | 0.0040 | 1.95 | 0.077 | 2.40 | 0.094 | 16.30 | 1.10 |
| EE 2219 SBK1 | EE 2219 | 1.50 | 0.059 | 0.102 | 0.0040 | 1.95 | 0.077 | 2.40 | 0.094 | 15.20 | 1.02 |
| EE 2007 SBK1 | EE 2007 | 1.70 | 0.067 | 0.127 | 0.0050 | 2.25 | 0.089 | 2.80 | 0.110 | 21.80 | 1.46 |
| EE 2019 SBK1 | EE 2019 | 1.75 | 0.069 | 0.127 | 0.0050 | 2.30 | 0.091 | 2.80 | 0.110 | 23.80 | 1.60 |
| EE 1819 SBK1 | EE 1819 | 2.00 | 0.079 | 0.127 | 0.0050 | 2.55 | 0.100 | 3.10 | 0.122 | 30.00 | 2.02 |
| EE 1619 SBK1 | EE 1619 | 2.25 | 0.089 | 0.127 | 0.0050 | 2.80 | 0.110 | 3.35 | 0.132 | 37.40 | 2.51 |
| EE 1419 SBK1 | EE 1419 | 2.60 | 0.102 | 0.127 | 0.0050 | 3.15 | 0.124 | 3.80 | 0.150 | 43.20 | 2.90 |
| EE 1219 SBK1 | EE 1219 | 3.10 | 0.122 | 0.127 | 0.0050 | 3.65 | 0.144 | 4.30 | 0.169 | 58.60 | 3.94 |
