High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations
Specifications
Model Number :
K xxxx SBK1-4 SPC or SCA
Brand Name :
Bing Wire & Cable
Place of Origin :
Shanghai, China
MOQ :
1000 meters
Price :
$0.08-0.42 / meter
Certification :
CE/RoHS
Supply Ability :
1000m 7 work days
Delivery Time :
10-15 work days
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Conductor Material :
Electrolytic silver plated annealed copper or high strength silver plated copper alloy (SCA)
Insulation Material :
Extruded FEP
Shielding :
Braided electrolytic silver plated annealed copper
Jacket :
Extruded FEP
Rated voltage :
600 V
Temperature :
-90℃~+200℃
Application :
Auto, Underground, Industrial, Power, Overhead, heating, Other
Description
Product Description

The K xxxx SBK1-4 SPC or SCA Series cable is a family of lightweight, high-reliability coaxial-style shielded cables designed for demanding aerospace, defense, and high-frequency communication applications. Featuring silver-plated copper conductors (or high-strength silver-plated copper alloy SCA), extruded FEP insulation, and silver-plated copper braided shielding, these cables offer exceptional thermal stability, chemical resistance, and signal integrity. Available in four shielding grades (SBK1, SBK2, SBK3, SBK4) and multiple stranding options (7, 19, or 37 strands), the K Series provides engineers with flexible trade-offs between size, weight, shielding effectiveness, and mechanical robustness.

* Model:K xxxx SBK1-4 SPC or SCA

* Insulation:FEP

* Conductor: Electrolytic silver plated annealed copper(SPC) or high strength silver plated copper alloy(SCA)

* Rated voltage: 600 volts AC

* Rated operating temperature: -90℃ to +200℃

* Multiple core: single core(SBK1), twisted pair(SBK2), twisted triples(SBK3), twisted quads(SBK4) for you to choose or multiple cores for custom

* Colors: Black,brown,red,orange,yellow,green,blue,purple,gray,white, transparent,two-color stripes or other colors specified by the customer

Key Advantages

  • Dual conductor options: Electrolytic silver-plated annealed copper(SPC) or high-strength silver-plated copper alloy (SCA)

  • Insulation & Jacket: Extruded FEP (fluorinated ethylene propylene) – non-flammable, low smoke, low dielectric constant

  • Full shielding – silver‑plated copper braid (EMI/RFI protection)

  • Wide Temperature range: -90°C to +200°C (typical for FEP, please consult detailed specs)

  • Chemical resistance: Inert to most fuels, oils, solvents, and de-icing fluids

  • Lightweight & compact: SBK1 grade minimizes outer diameter and mass for high-density wiring

Application

  • Aerospace : Withstands -90°C to +200°C for extreme thermal cycling, and the silver‑plated copper braid provides reliable EMI/RFI shielding in noise‑sensitive flight systems.

  • Mili tary & defense : SCA conductor option offers high mechanical strength against vibration and shock, while the FEP jacket resists fuel, oil, and chemical exposure.

  • Industrial High Temp : FEP insulation and jacket maintain electrical integrity up to +200°C, and the shielded design prevents interference from nearby motors or power lines.

  • Extreme Evironment : Operates from -90°C to +200°C without cracking or loss of flexibility; silver‑plated conductors resist corrosion and support low‑loss signal transmission.

  • High Frequency Signal transmission : Braided silver‑plated copper shield achieves high coverage for effective noise rejection, and the FEP dielectric ensures stable impedance and low signal attenuation.

Why Choose Our Shield and Jacket Cable with FEP jacket?

Our K xxxx SBK1-4 SPC or SCA Series is designed for engineers who demand uncompromised performance in extreme environments. With a 600V voltage rating and an exceptionally wide continuous operating temperature range (typically -65°C to +200°C), these cables excel in aerospace, defense, and high-frequency communication systems where both electrical stress and thermal extremes are present. The extruded FEP insulation and jacket provide outstanding resistance to moisture, fuels, solvents, and de-icing fluids, while the silver-plated copper braided shielding delivers low surface resistance and high shielding effectiveness to preserve signal integrity in noisy electrical environments. Available in single core, twisted pair, twisted triple and twisted quad configurations, this series fully meets diverse wiring demands and is widely trusted in aerospace, medical, mili tary and high‑reliability industrial applications.

Specification

BING'
REFERENCE		 PRIMARY WIRE SHIELDING JACKET
REFERENCE NOMINAL
Ø (mm)		 NOMINAL
Ø (inch)		 STRAND
Ø (mm)		 STRAND
Ø (inch)		 NOMINAL BRAIDED SHIELD
Ø (mm)		 NOMINAL BRAIDED SHIELD
Ø (inch)		 NOMINAL OUTER
Ø (mm)		 NOMINAL OUTER
Ø(inch)		 APPROX. WEIGHT
(g/m)		 APPROX. WEIGHT
(Ibs/100ft)
K 3407 SBK1 K3407 SCA 0.70 0.028 0.079 0.0031 1.05 0.041 1.50 0.059 5.40 0.36
K 3207 SBK1 K3207 0.75 0.030 0.079 0.0031 1.10 0.043 1.55 0.061 5.90 0.40
K 3007 SBK1 K3007 0.80 0.031 0.102 0.0040 1.25 0.049 1.70 0.067 8.30 0.56
K 2807 SBK1 K2807 0.90 0.035 0.102 0.0040 1.35 0.053 1.80 0.071 9.00 0.60
K 2607 SBK1 K2607 1.00 0.039 0.102 0.0040 1.45 0.057 1.90 0.075 9.90 0.67
K 2619 SBK1 K2619 1.00 0.039 0.102 0.0040 1.45 0.057 1.90 0.075 9.50 0.64
K 2407 SBK1 K2407 1.10 0.043 0.102 0.0040 1.55 0.061 2.00 0.079 11.20 0.75
K 2419 SBK1 K2419 1.15 0.045 0.102 0.0040 1.60 0.063 2.05 0.081 10.90 0.73
K 2207 SBK1 K2207 1.25 0.049 0.102 0.0040 1.70 0.067 2.15 0.085 14.50 0.97
K 2219 SBK1 K2219 1.30 0.051 0.102 0.0040 1.75 0.069 2.20 0.087 14.00 0.94
K 2007 SBK1 K2007 1.45 0.057 0.102 0.0040 1.90 0.075 2.35 0.093 16.30 1.10
K 2019 SBK1 K2019 1.50 0.059 0.102 0.0040 1.95 0.077 2.40 0.094 18.10 1.22
K 1819 SBK1 K1819 1.75 0.069 0.127 0.0050 2.30 0.091 2.85 0.112 27.40 1.84
K 1619 SBK1 K1619 2.10 0.083 0.127 0.0050 2.65 0.104 3.20 0.126 36.10 2.43
K 1419 SBK1 K1419 2.35 0.093 0.127 0.0050 2.90 0.114 3.45 0.136 38.40 2.58
K 1219 SBK1 K1219 2.85 0.112 0.127 0.0050 3.40 0.134 4.05 0.159 54.00 3.63
K 1037 SBK1 K1037 3.35 0.132 0.127 0.0050 3.90 0.154 4.55 0.179 81.70 5.49

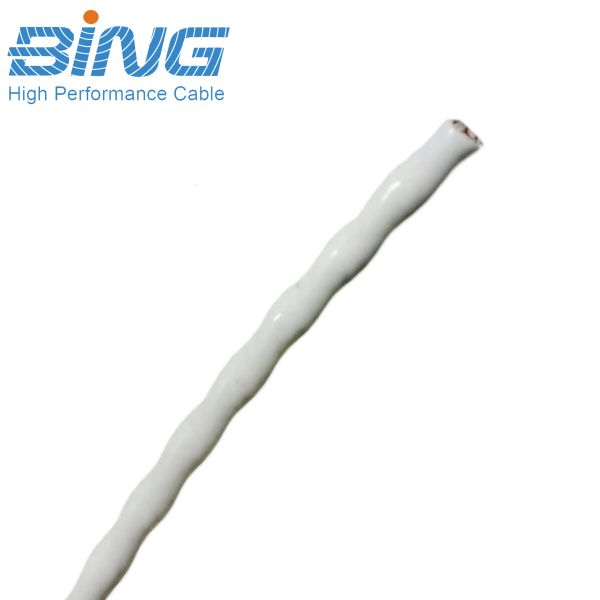

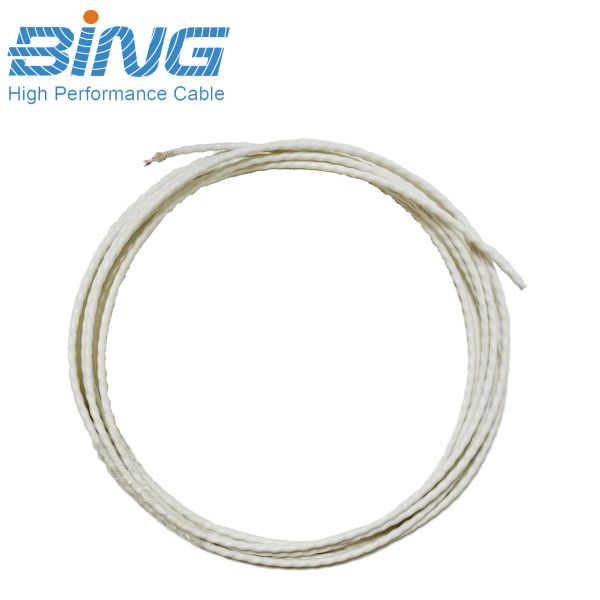

Picture Detail

High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical InstallationsHigh Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations

High Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical InstallationsHigh Performance 600V K xxxx SBK1-4 SPC or SCA Multicore Shielded and Jacketed Cable for Electrical Installations

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
