28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication
Specifications
Model Number :
Foam-Flex-047
Place of Origin :
Shanghai, China
Brand Name :
Bing Wire & Cable
Certification :
CE/RoHS
MOQ :
2000 meters
Price :
$3.66-9.52 / meter
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Supply Ability :
2000m 7 work days
Delivery Time :
10-15 work days
Type :
Microwave Phase Stable cable
Inner Conductor :
Silver Plated Copper Alloy or Silver Plated Copper Clad Steel
Insulation :
Foamed PTFE
Inner Sheild :
Silver Plated Copper Strip Spiral
Braid Shield :
Silver Plated Copper Wire Braid
Jacket :
Extruded FEP
Impedance :
50 Ohm
Velocity of Propagation :
77%
Temperature Range :
-55°C ~ +150 ℃
Application :
Communication and GPS
Description
Product Description

Foam Flex 047 low loss coaxial cable is a high‑performance flexible microwave cable featuring a foamed PTFE (low‑density) dielectric that delivers lower attenuation and lighter weight compared to solid PTFE designs. With a rugged dual‑layer composite shield and an FEP jacket, this 28 AWG cable offers outstanding electrical performance up to 60 GHz while maintaining the flexibility and ease of handling of RG‑type cords.Designed as a direct replacement for semi‑rigid cables in demanding applications, Foam Flex 047 combines low loss, excellent shielding, and true flexibility – ideal for high‑frequency interconnects in aerospace, test & measurement, and wireless communications.

Core Advantages

  • Wide Temperature Range: -55°C to +150°C operational capability for extreme environments.

  • Lower Attenuation:Foam PTFE contains more air, reducing dielectric loss—critical for long cable runs and high-frequency applications.

  • Higher Velocity of Propagation:Signals travel faster (80–85% vs. 70% for solid PTFE), reducing latency in time-sensitive systems.

  • Lighter Weight:Lower density dielectric reduces overall cable weight—ideal for aerospace and portable equipment.

  • Improved Flexibility:Foam structure is inherently more pliable, requiring lower bending force.

  • Exceptional Phase Stability: Mechanical phase and amplitude stability under flexure, critical for phased array and high-precision applications.

  • Cost-Effective:Foam dielectrics can offer performance approaching air dielectric at lower cost.

Application Scenarios
  • Wireless Communications: Higher velocity reduces latency; low loss improves system efficiency.
  • Test & Measurement: Reduced need for power compensation in extended test setups.
  • Aerospace: Lightweight construction reduces payload; flexible routing aids installation.
  • PIM Test Cables: High shielding effectiveness ensures accurate passive intermodulation measurements.Foam-Flex 047
Why to Choose Our Low Loss Coaxial Cable?

Engineers select Foam Flex 047 low loss coaxial cable when they need a flexible microwave cable that combines the low‑loss benefits of a foamed PTFE dielectric with the mechanical ruggedness required for demanding environments. Its 77% velocity of propagation and 25.9 pF/ft capacitance outperform solid‑PTFE designs, while the proven dual‑layer composite shielding guarantees >100 dB isolation up to 60 GHz. With a compact 1.48 mm outer diameter, tight bend radii, and compatibility with standard semi‑rigid connectors, Foam Flex 047 delivers semi‑rigid electrical performance in a truly flexible, easy‑to‑route package – ideal for aerospace, test & measurement, wireless backhaul, and millimeter‑wave systems.


Specification

Physical Properties

Item Material Diameters (mm)
Inner Conductor Solid Silver Plated Copper Alloy or Silver Plated Copper Clad Steel 0.32± 0.0025
Insulation Foamed PTFE(LD-PTFE) 0.93± 0.025
Inner Shield Silver Plated Copper Strip Spiral -----
Braid Shield
Silver Plated Copper Wire Braid
1.21± 0.051
Jacket
Extruded FEP
1.48± 0.076

Electrical Properties

Capacitance (pF/m) 85
Impedance (Ohms) 50± 1.5ohms
Velocity of Propagation (%) 77
Max Voltage (Vrms) 1000
Cutoff Frequency (GHz) 60
Min. Dynamic Bend Radius (mm) 12.77
Temperature Range (℃) -55~+150

Attenuation

Frequency (GHz) Attenuation (dB/m) Power(CW)
1.000 1.1 49.0
2.000 1.6 34.0
4.000 2.2 24.0
8.000 3.2 16.0
12.000 4.0 13.0
18.000 5.0 10.0
26.500 6.1 8.8
34.000 7.0 7.6
40.000 7.7 6.9
50.000 8.7 6.0

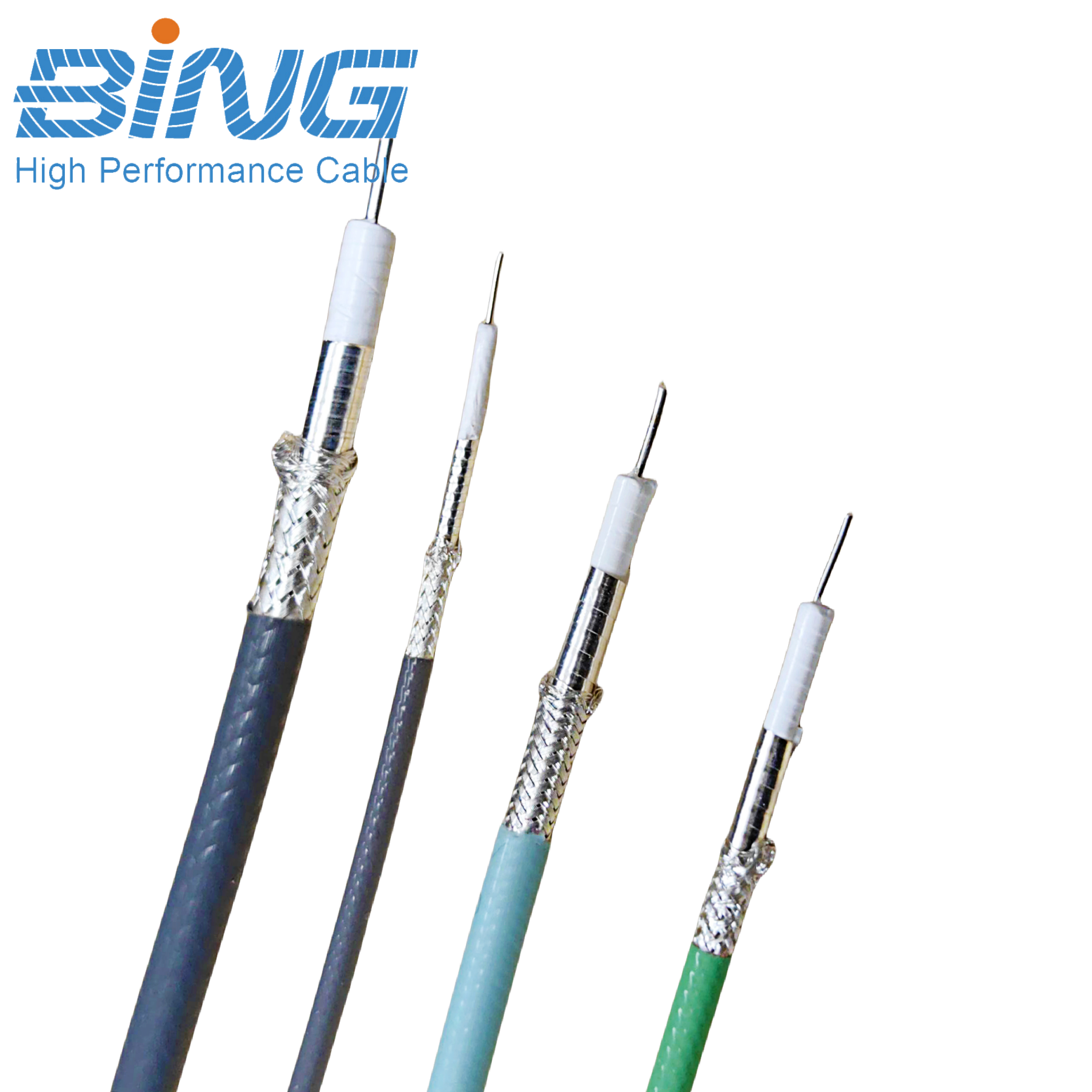

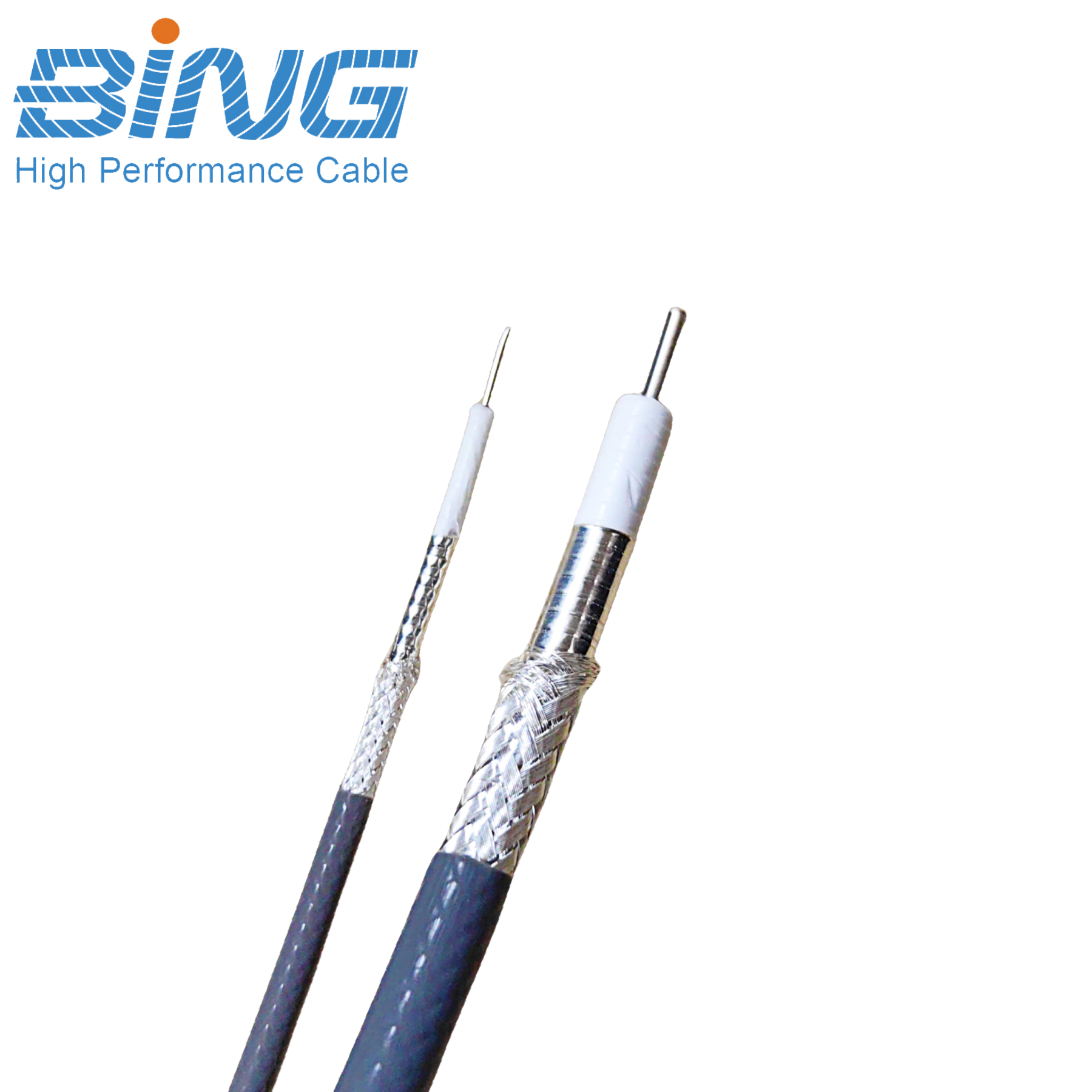

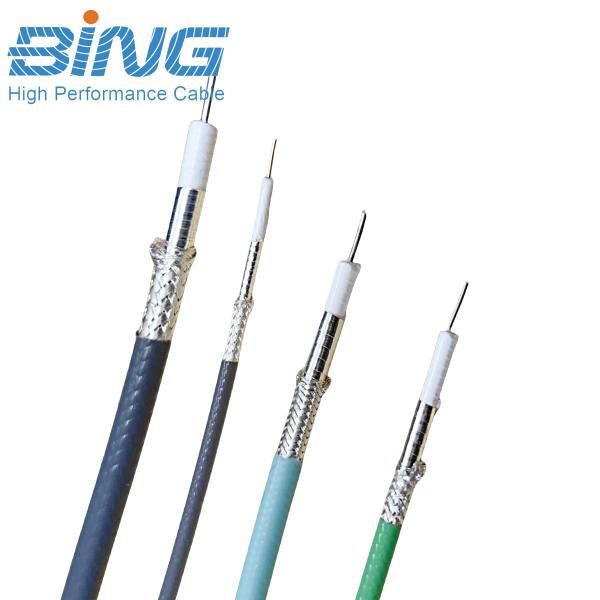

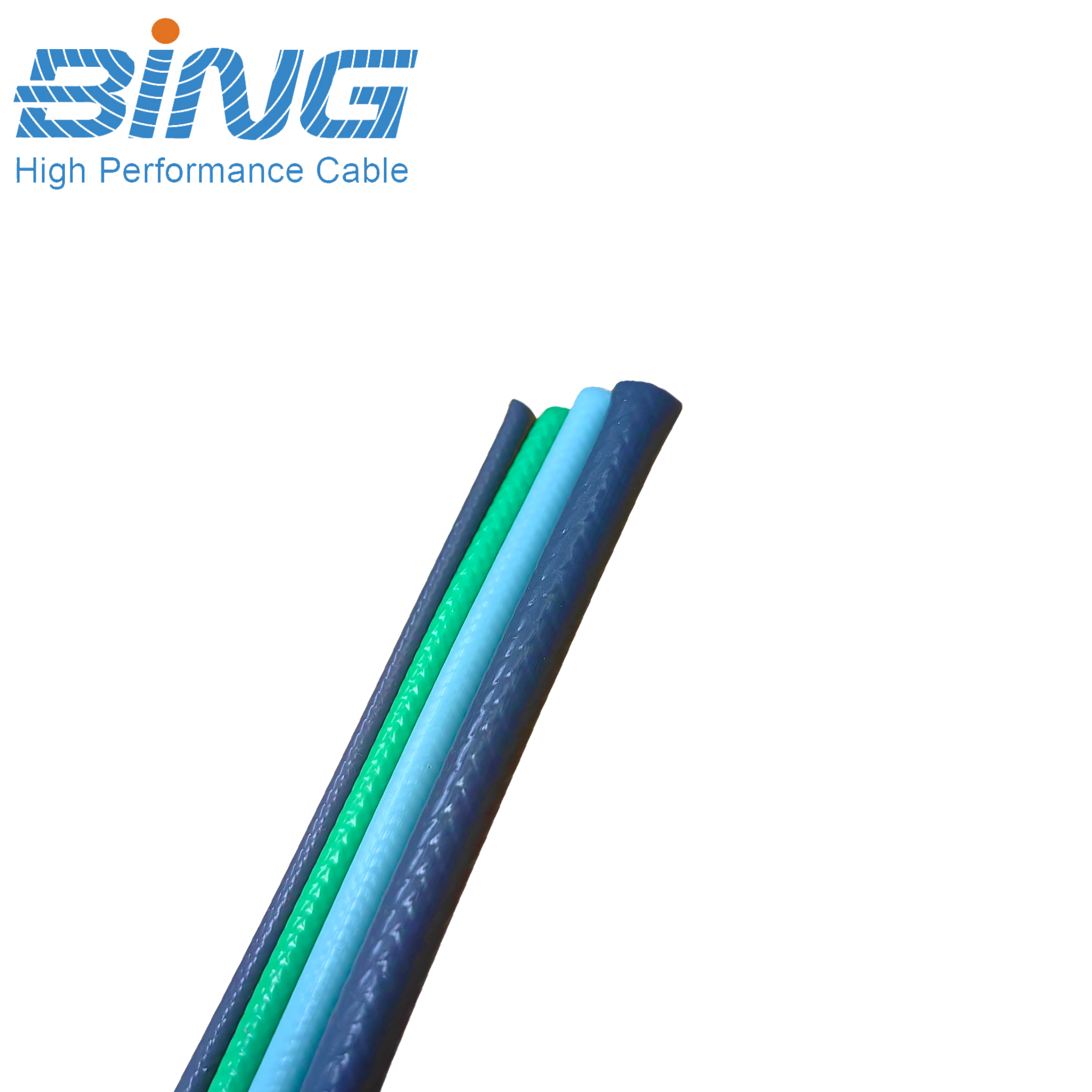

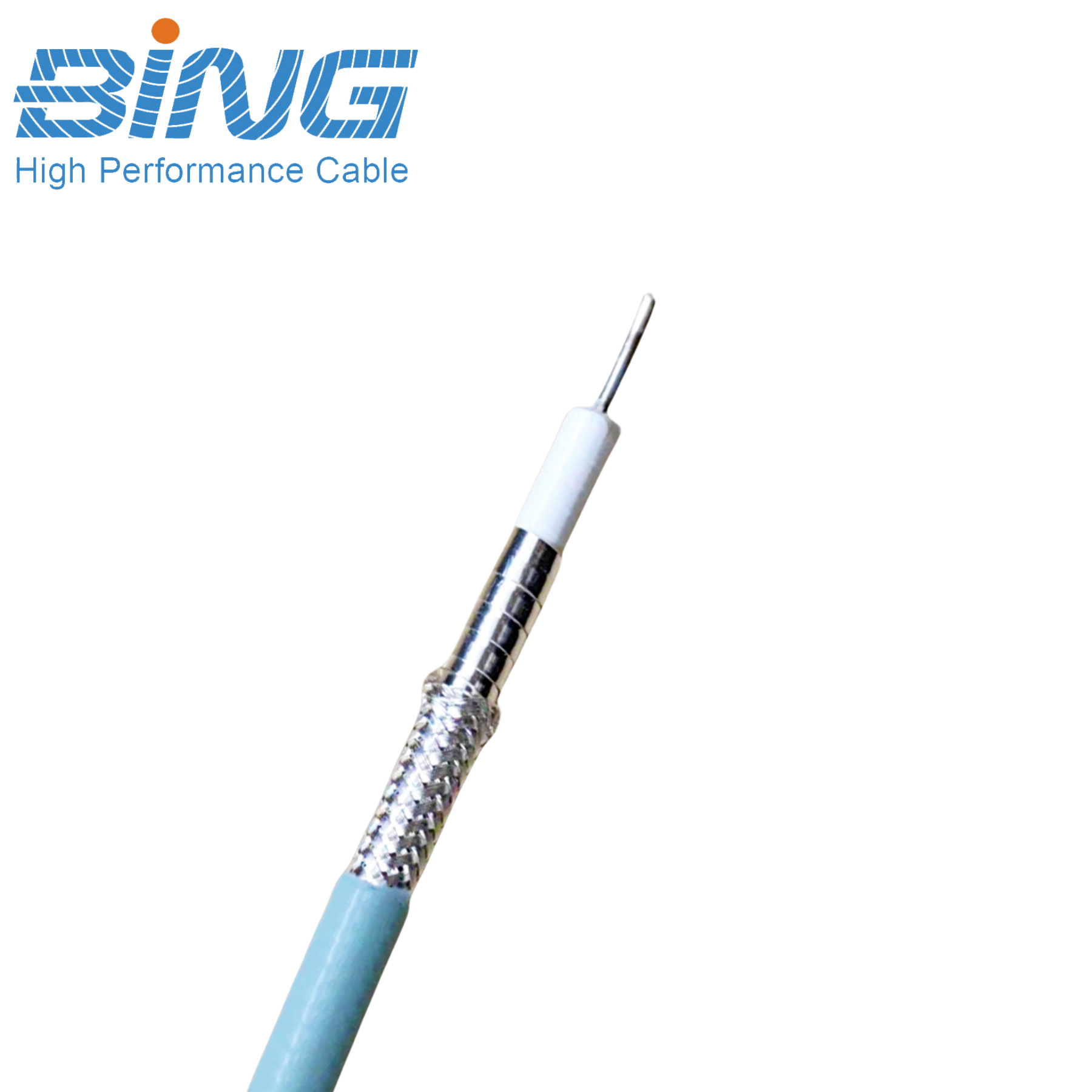

Product Detail

28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication

28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication28AWG Foam-Flex 047 Low Loss Microwave Coaxial Cable Foamed PTFE Insulation for Communication

FAQ
1.Are you a manufacturer or a trading company?
A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.
2.What’s your company MOQ?
A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.
3.Can I get the samples?
A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.
4.Does your company accept customization?
A: Yes, we provide both OEM and ODM services to meet your specific requirements.
5.How can I get the right price?
A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.
6.What services can we provide?
A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.
7.How long will the delivery take?
A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.
8.How do you solve after sale service?
A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
