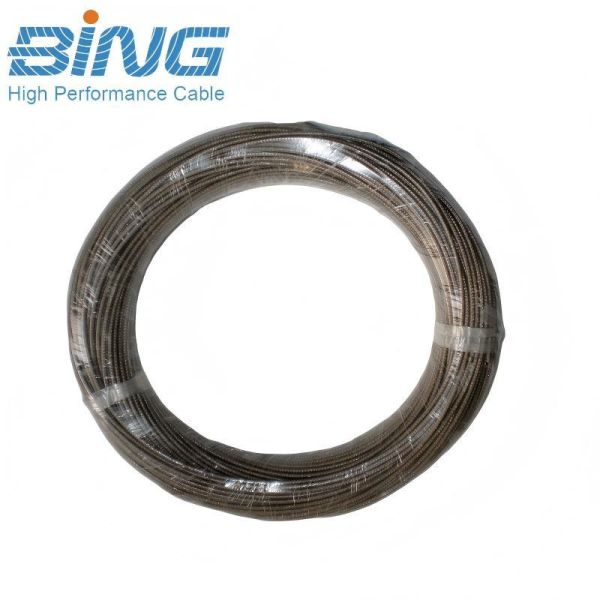

RG188 Coaxial Cable M17/138 50 Ohm 3GHz MIL-DTL-17 RF Cables for Automotive Industry
RG188 Coaxial Cable M17/138 50 Ohm 3GHz MIL-DTL-17 RF Cables for Automotive Industry
RG188 Coaxial Cable M17/138 50 Ohm 3GHz MIL-DTL-17 RF Cables for Automotive Industry
RG188 Coaxial Cable M17/138 50 Ohm 3GHz MIL-DTL-17 RF Cables for Automotive Industry
RG188 Coaxial Cable M17/138 50 Ohm 3GHz MIL-DTL-17 RF Cables for Automotive Industry
RG188 Coaxial Cable M17/138 50 Ohm 3GHz MIL-DTL-17 RF Cables for Automotive Industry
Specifications
Model Number :
RG188
Place of Origin :
Shanghai, China
Brand Name :
Bing Wire & Cable
MOQ :
1ft
Price :
$1 / ft
Certification :
ISO, RoHS
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
5000ft 7days
Delivery Time :
7-15 work days
Cable family :
RG Type RF Cable
Conductor Material :
Silver Plated Copper-Clad Steel
Conductor Type :
Stranded
Insulation :
PTFE
Shield :
Silver Plated Copper
Jacket :
PFA
Impedance :
50 Ohm
Operating Temperature :
-55~+230℃
Description
Product Description

RG188 is a MIL-DTL-17 compliant 50 Ohm coaxial cable (M17/138-RG188) engineered for high-temperature applications requiring reliable RF performance in a compact form. Featuring a stranded 7/0.17mm silver plated copper-clad steel conductor and single silver-plated copper braid shield, this cable delivers consistent signal transmission up to 3 GHz. The PTFE insulation and PFA jacket enable continuous operation from -55°C to +230°C, making it ideal for aerospace, defense, and automotive industry where extreme temperatures and space constraints are critical factors.

Key Features
  • 230°C continuous rating – Handles heat that melts standard coax, perfect for engine bays and industrial ovens
  • Stranded SCCS conductor – Flexes without fatigue, outlasting solid conductors in vibrating equipment
  • MIL-DTL-17 qualified – Built to mil-spec for mission-critical reliability
  • PFA jacket – Non-stick, chemical-resistant, and tougher than standard FEP
  • Compact 2.5mm diameter – Routes easily through tight spaces and cable bundles
  • Low attenuation – Clean signal delivery from 100 MHz to 3 GHz
Specifications
Physical Properties
Item Material Diameters (mm)
Inner Conductor SCCS 7/0.17
Insulation PTFE 1.52
Outer Conductor 1:SC 1.98
Jacket PFA 2.49
Electrical Properties
Capacitance (pF/m) 96.5
Impedance (Ohms) 50
Velocity of Propagation (%) 69.5
Max Voltage (Vrms) 1200
Max Frequency (MHz) 3000
Bend Radius (mm) 13
Temperature Range (℃) -55~+230
Attenuation
Frequency (MHz) Attenuation (dB/m)
100 0.262
400 0.531
1000 0.856
3000 1.532
Applications
  • Aircraft engine compartments and thrust reversers
  • Defense vehicle communication systems
  • Industrial ovens and high-heat processing equipment
  • Downhole drilling and oil exploration tools
  • Satellite and space vehicle wiring
  • Laboratory test leads exposed to heat
  • Automotive sensors and high-temperature harnesses
  • Medical equipment requiring sterilization cycles
FAQ
Q: Why choose RG188 over standard RG316?

A: RG188 offers higher temperature rating (230°C vs 200°C) with PFA jacketed.

Q: What makes the 230°C rating possible?

A: The PFA jacket withstands continuous 230°C exposure while standard FEP jackets soften at 200°C.

Q: Is this cable flexible enough for tight routing?

A: Yes, the 7-strand SCCS conductor bends easily without work hardening.

Q: What connectors fit this cable?

A: Standard SMA, BNC, TNC, MCX, and MMCX connectors for 2.5mm diameter coax.

Q: Can it handle vibration?

A: Yes, the stranded conductor resists fatigue failure better than solid conductors.

Q: Do you sell by the foot?

A: Yes, any length with no minimum. Assemblies with connectors also available.
