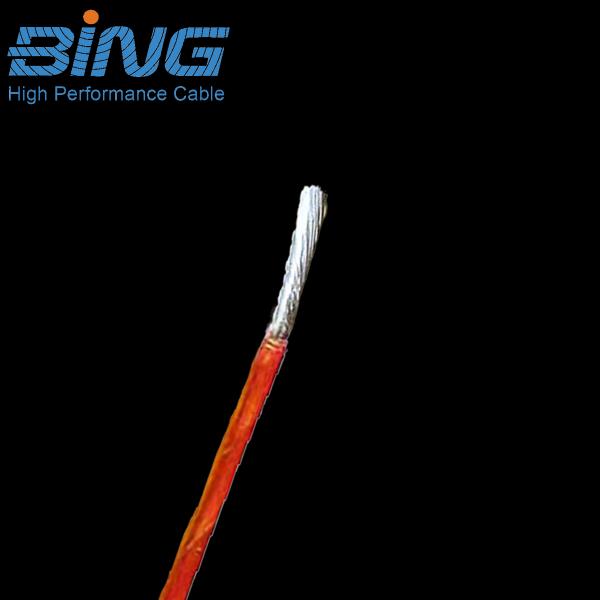

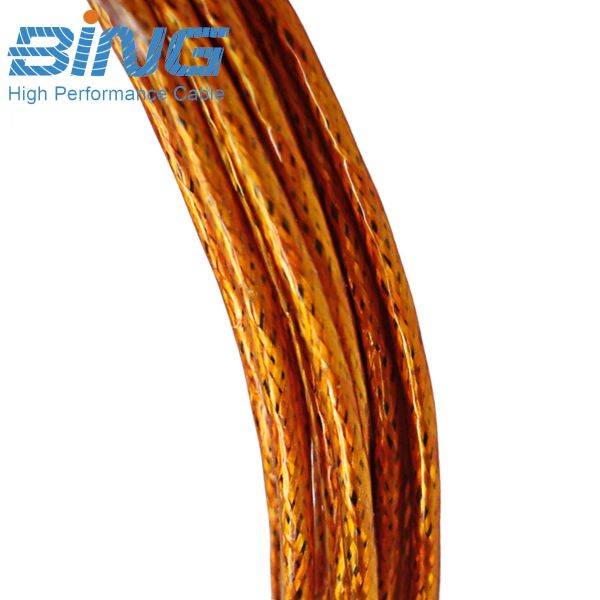

H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace
Specifications
Model Number :
H-SPC
Place of Origin :
Shanghai, China
Brand Name :
Bing Wire & Cable
MOQ :
1000 meters
Price :
$6.77-25.99 / meter
Certification :
CE/RoHS
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
2000M 7work days
Delivery Time :
10-15 work days
Conductor :
electrolytic silver plated annealed copper or high strength silver plated copper alloy (SCA)
Insulation Material :
Wrapped and sealed PTFE/ Polyimide composited tape
Jacket :
PTFE tape top wrapped and sintered
Rated Voltage :
600V
Rated Temperature :
-90°C~+200°C
Application :
Aircraft Wiring/Extreme Engine Bay/Helicopter Avionics
Color :
Customized Color
Packing :
as requirement
Description
Products Description
H-SPC polymide wire
  • Rated Voltage: AC 600V.
  • Insulation Thickness: 0.185~0.47 mm.
  • Operating Temperature: -90~+200℃.
  • Conductor: Annealed silver-plated electrolytic copper or high-strength silver-plated copper alloy.
  • Insulation: Fluororesin-coated PTFE or polyimide film tape wrapped and sintered.
  • Sheath: PTFE tape wrapped and sintered sheath, available in different colors (wire surface can be laser marked).
  • Insulation Detail: Fluororesin-coated PTFE or polyimide composite film insulation.
  • Standard Colors: Black, brown, red, orange, yellow, green, blue, purple, gray, white (custom colors available).
  • Multi-core Cables: Twisted pair, three-core stranded, four-core stranded, etc. (with/without sheath, with/without shielding optional).

H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace

Product Feature
  • Arc-resistant.
  • Anti-mold and anti-bacterial.
  • Excellent resistance to aviation fuel oil.
  • Medium thickness and medium weight.
  • High-conductivity silver-plated copper conductor.
  • Laser-printable surface markings.

Application
The H-SPC aviation wire is engineered for precision and reliability in critical aerospace and mili tary systems:
  • Commercial & Mili tary Aircraft: Avionics, control systems, and power distribution.
  • Space & Defense: Satellite systems, mili tary vehicles, and high-performance electronics.
  • Industrial & Aerospace: High-temperature test equipment, avionics modules, and harsh-environment control systems.

H-SPC 600V Fluororesin Coated Polyimide Insulation Silver Plated Copper for Aerospace


Why Choose Our Polymide Taped Wire?
Our H-SPC Polyimide Taped wire is designed for the harshest environments and extreme conditions. This silver plated copper wire may be used in commercial or mili tary aircraft where wire applications must adhere to strict restrictions and specifications. As a professional Electrolytic silver-plated copper cable, our high-performance polyimide taped wire meets the strictest requirements for small dimensions, high-temperature resistance, low weight, and flame retardant, making it the top choice for Aerospace communication cable and mission-critical aerospace wiring.

Specification
PART NUMBER AWG CONSTRUCTION
(NB × ∅ mm )		 CONDUCTOR
NOMNAL ∅(mm)		 NOMNAL AREA
( mm2)		 NOMNAL RESISTANCE
( Ω / 100m)		 INSULATED WIRE
NOMNAL ∅(mm) APPROX. WEIGHT ( g/m)
H 3001 30 1/ 0.254 0.254 0.051 35 0.55 0.75
H 3007 30 7/ 0.102 0.303 0.057 34 0.60 0.85
H 2801 28 1/ 0.320 0.320 0.081 21 0.62 1.00
H 2807 28 7/ 0.127 0.381 0.088 20 0.68 1.20
H 2601 26 1/ 0.403 0.403 0.13 13 0.70 1.50
H 2619 26 19/ 0.102 0.504 0.15 12 0.81 1.90
H 2401 24 1/ 0.510 0.510 0.21 8.5 0.81 2.30
H 2419 24 19/ 0.127 0.634 0.24 7.5 0.93 2.80
H 2201 22 1/ 0.644 0.644 0.33 5.3 0.94 3.50
H 2219 22 19/ 0.160 0.800 0.38 4.7 1.10 4.20
H 2001 20 1/ 0.812 0.812 0.52 3.3 1.11 5.30
H 2019 20 19/ 0.203 1.009 0.62 2.9 1.31 6.50
H 1819 18 19/ 0.254 1.269 0.96 1.9 1.57 10.0
H 1619 16 19/ 0.300 1.500 1.34 1.3 1.80 13.7
H 1419 14 19/ 0.360 1.803 1.94 0.92 2.15 19.4
H 1237 12 37/ 0.320 2.220 2.97 0.60 2.59 30.0
H 1037 10 37/ 0.405 2.800 4.74 0.39 3.19 47.0
H 8133 8 133/ 0.287 4.090 8.60 0.21 4.85 88.0
H 6133 6 133/ 0.360 5.140 13.60 0.13 6.07 136.0
H 4133 4 133/ 0.455 6.480 21.70 0.08 7.42 211.0
H 2665 2 665/ 0.254 8.300 33.70 0.05 9.01 331.0
FAQ

1.Are you a manufacturer or a trading company?

A: We are a professional manufacturer of wires and cables, based in Shanghai, with extensive experience since 2005.

2.What’s your company MOQ?

A: To ensure the best cost and quality for different products, our MOQ varies, normally it's 2km. Please reach out to our sales team for specific and flexible options.

3.Can I get the samples?

A: Yes, we encourage you to verify our quality. Samples are available upon request. A nominal fee may apply, which is deductible from your future bulk order.

4.Does your company accept customization?

A: Yes, we provide both OEM and ODM services to meet your specific requirements.

5.How can I get the right price?

A: For a precise quotation tailored to your needs, please contact us with detailed specifications (e.g., type, length, color, packaging). We respond quickly.

6.What services can we provide?

A: We provide a seamless trading experience: Secure payment (T/T, PayPal), flexible trade terms (FOB Shanghai, EXW Shanghai, etc.), and cooperation with major logistics companies (DHL, FedEx, UPS, or your preferred agent) for door-to-door delivery.Other terms can be discussed based on your needs.

7.How long will the delivery take?

A: The general production lead time is 10-15 working days after order confirmation and deposit. Exact time depends on the order quantity and customization complexity.

8.How do you solve after sale service?

A: Our relationship doesn't end after a sale. We offer comprehensive after-sales support. If you encounter any issues, our team will provide a swift and effective solution to ensure your complete satisfaction.
