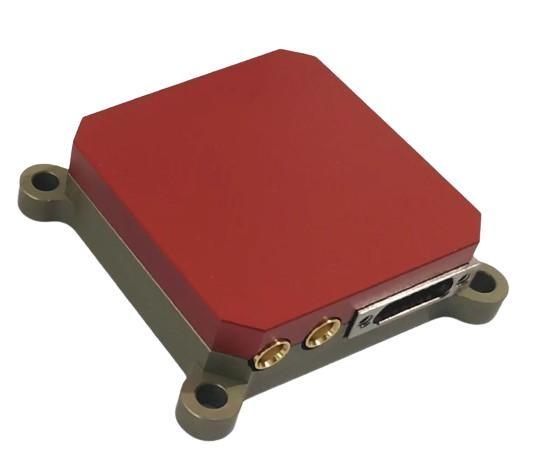

High-Performance MEMS Navigation System with Dual-Axis Compensation for UAV/Robotics
High-Performance MEMS Navigation System with Dual-Axis Compensation for UAV/Robotics
Specifications
Brand Name :
BWSENSING
Model Number :
GI V16E
Place of Origin :
Jiangsu,China
MOQ :
1 PCS
Price :
USD 1550
Payment Terms :
T/T
Bias stability :
≤ 36 ° / h
Gyro Range :
±500°/s（200°/s～2000°/s，adjustable）
Accelerometer Range :
±4g（2g～40g）
Accelerometer Bias stability :
≤0.1mg
Size :
45mm X 46mm X 14mm
Roll Angle :
pitching：±90°，Rolling：±180°
Electrical Interface :
RS422
Rolling :
0.05°（RMS， dynamic），0.02°（RMS， Static）
Pitching :
0.05°（RMS， dynamic），0.02°（RMS， Static）
Description

GI V16E is a high-performance MEMS inertial/satellite integrated navigation system. It has a built-in triaxial gyro, triaxial accelerometer, triaxial magnetic sensor, a pneumatic sensor, and a BD/GPS/GLONASS/GALILEO four-mode receiver. The velocity, position and attitude of the carrier can be measured, as well as the output compensated angular velocity, acceleration, magnetic course, air pressure, temperature and other information.

Feature

  • -40 ° c to 60 ° c, full temperature calibration
  • High sampling rate of 1KHz, 1KHz compensation operation, 1KHz navigation operation, 5Hz kalman filter
  • Can be connected to external odometer, DVL
  • High performance, small size, light weight and low power consumption;
  • Support output receiver raw data, IMU raw data, Novotel IE post-processing

Gyroscope
Range ±500°/s(200°/s～2000°/s,adjustable)
full temperature Zero < 100°/h
Bias stability Static test at room temperature, gyro-second mean data is smoothed for ten seconds, standard deviation ≤36°/h
Bias repeatability At room temperature, the zero-bias data was measured seven times in duplicate. The standard deviation of the seventh zero offset is ≤36°/h.
Bandwidth 100Hz(customized)

Accelerometer
range ±4g(2g～40g)
full temperature Zero <2mg
Bias stability Static test at room temperature, second mean data, standard deviation ≤0.1mg.
Bias repeatability At room temperature, the zero-bias data was measured seven times in duplicate. The standard deviation of seven zero biases is ≤0.1mg.
Bandwidth 100Hzcustomized
Barometer
Height accuracy Meteorological conditions stable, room temperature conditions,< 10cm(1σ,Typical)
output frequency 5Hz
