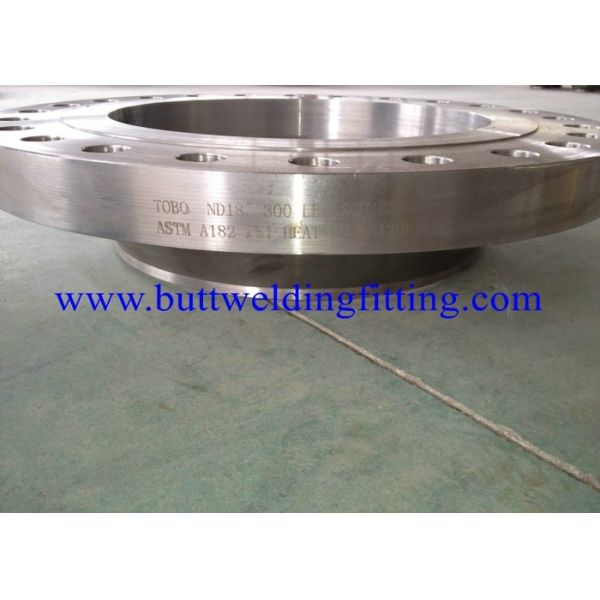

ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
ASME B16.5 ASTM A182 F304/F316 Class 150-2500 Stainless Steel Slip-On Forged Flange
Specifications
Brand Name :
TOBO
Material :
Stainless Steel ASTM A182 F304/F316
Place of Origin :
Shanghai,China
Delivery Time :
15-30 Workdays
Manufacturing Process :
Forged
Facing :
Raised Face (RF)
Flange Type :
Slip-On (SO)
Packaging Details :
Standard Shipping Package
Model Number :
Forged Steel Flanges
Size Range :
1/2 inch to 48 inch
Price :
Negotiable
Payment Terms :
T/T,Western Union
Supply Ability :
10 Ton/Month
Standard :
ASME B16.5
Pressure Class :
Class 150 to 2500
MOQ :
1PC
Certification :
ISO/TUV/SGS
Description
ASME B16.5 Stainless Steel Slip-On Flange ASTM A182 F304 F316 Class 150-2500 Forged Industrial Piping System
Product Overview

The Slip-On Flange is a cost-effective forged stainless steel piping component designed for easy installation and reliable performance. Manufactured from ASTM A182 F304/F316 austenitic stainless steel, these flanges offer excellent corrosion resistance for chemical processing, food and beverage, marine, and pharmaceutical applications.

Key Features
  • Premium Stainless Steel: ASTM A182 F304/F316 material provides outstanding corrosion resistance and durability in harsh environments
  • Easy Installation: Slides over the pipe end and is welded both inside and outside for a secure, leak-proof joint
  • Cost-Effective Design: Lower initial cost compared to weld neck flanges with reduced pipe cutting accuracy needed
  • Excellent Alignment: The slip-on design allows for easier alignment of bolt holes during assembly
  • ASME B16.5 Compliant: Manufactured to precise ASME/ANSI B16.5 dimensional standards
Technical Specifications
Flange Type Slip-On (SO)
Material Grade Stainless Steel ASTM A182 F304, F304L, F316, F316L
Standard ASME B16.5 / ANSI B16.5
Pressure Class Class 150, 300, 400, 600, 900, 1500, 2500
Size Range 1/2 inch NB to 48 inch NB
Facing Type Raised Face (RF), Flat Face (FF)
Certification ISO, TUV, SGS
Advantages
  • Lower fabrication and installation costs compared to weld neck flanges
  • Reduced accuracy required in cutting pipe to length
  • Welded both inside and outside to provide sufficient structural strength
  • Low hub design allows pipe to slip into flange before welding
  • Excellent for moderate pressure and temperature applications
Applications
  • Chemical processing plants
  • Food and beverage processing systems
  • Marine and offshore piping
  • Water treatment facilities
  • Pharmaceutical manufacturing
Packaging & Delivery

All stainless steel flanges are packed with protective wrapping to prevent surface damage. Standard shipping packages with export-grade protection. Delivery within 15-30 working days.
