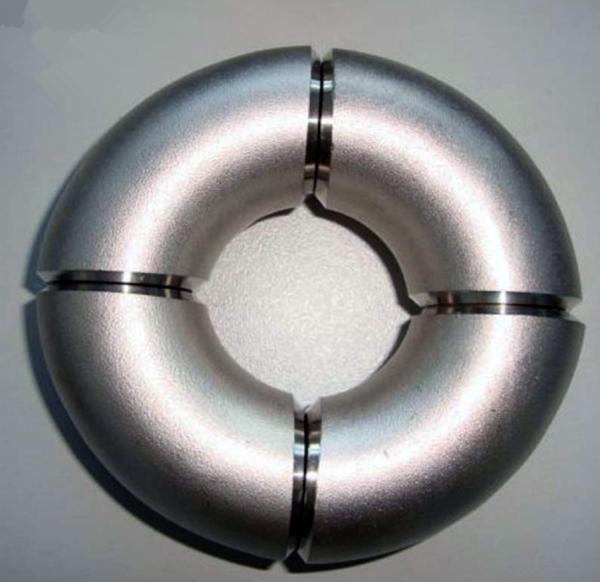

Butt Welded Fitting Carbon Steel Fitting 90d Elbow To ASME B16.9
Butt Welded Fitting Carbon Steel Fitting 90d Elbow To ASME B16.9
Specifications
Brand Name :
TOBO/TPCO/TISCO/VALIN/METAL
Model Number :
1.4835 Stainless Steel Seamless Pipe
Certification :
ISO/PED/TUV/SGS/LR/BV
Place of Origin :
China/Japan/Germany
MOQ :
0.5-1 tons
Price :
negotiable
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
7500 tons per year
Delivery Time :
15days->
Packaging Details :
in plastic bags then in bundles
Standard: :
DIN, ANSI, ISO, GB, JIS
Application :
Fluid pipe,Structure Pipe
Surface :
Annealed & Pickled, Bright Annealing, Polished
Types: :
Seamless
Thickness :
0.5-100mm
Outer Diameter :
6-813mm
Material :
Carbon Steel,Stainless Steel,alloy steel,Brass,copper
Sample :
Provided,Free,Available free within 7days
Description

Butt Welded Fitting Carbon Steel Fitting 90d Elbow to ASME B16.9

Overview
Quick Details
Model Number:
Elbow pipes
Technics:
Casting/Forging
Connection:
Welding, Welded Connection
Shape:
Equal
Head Code:
Round
Name:
Butt Welded Fitting Carbon Steel Fitting 90d Elbow to ASME B16.9
Size:
1/2-20" DN15-DN1200/ Customized Size
Standard:
ASME/GOST/GB/DIN/JIS
Nature of company:
Manufacuturer
Color:
Black/Metallic/Required
Surface treatment:
Pickling; Sandblasting; Polished
Special Design:
we can produce according to your drawings
Factory history:
Since 1998
MOQ:
We are factory, any quantity is acceptable!
Supply Ability
Supply Ability
400 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Wooden Cases, wooden or steel pallet plastic bag or as per customer's requirement for Butt Welded Fitting Carbon Steel Fitting 90d Elbow to ASME B16.9
Lead Time:
Quantity(Pieces) 1 - 100 101 - 500 501 - 1000 >1000
Est. Time(days) 15 15 20 To be negotiated
Product Description

Product name type
Steel 20 Carbon steel seamless welded elbow pipe fittings
Size
1/4 inch-20inch, DN15-DN1400
Connection
Welded, Male, Female, Flange
Elbow Type
45 Degree elbow 45E(L) 45E(S)
90 Degree elbow 90E(L) 90E(S)
180 Degree elbow 180E(L) 180e(s)
Others: 30Degree, 60Degree, 120Degree, etc.
Material
Stainless steel, Carbon steel, Alloy steel
Other material: According to customer requirements
Specifications
Outer diameter DN15-1200 NPS 1/2"-48"
Wall thickness 1-15MM Sch5s-Sch160
Standard
ASTM B363, ASME B16.9, ASME SB363, ANSI B16.9
Technique
Welded, Forged, Rolled, Seamless
Surface finished
Sand blasting, Polishing, Pickling
Quality control
100% of the X-ray detection (RT)
100% of Surface penetrant inspection (PT)
Application
Structure Pipe, Gas Pipe, Hydraulic Pipe, Chemical Fertilizer Pipe
Other products
Caps, flingers, socket welding fittings, flange, tee, reducer, valves etc available

Production Process

FAQ
Q: Does this tubing come with triclamp ends to be coupled together?
A: This particular tubing comes without tri-clamp ends standard. We can always weld tri-clamp ferrules to the end of tubes for any specific length you need. These products are referred to as tri-clamp spool assemblies. If you need a specific length, please
contact us.
Q: Are you able to cut tubing to lengths that don't require freight shipping? Say 5' lengths for example.?
A:Yes, we are able to cut down to other sizes. UPS Ground is able to ship up to 7' without the tubing being considered "oversized".We do charge a cutting fee for this service, however. Please contact us for a quote.
Q:How much does 1 stick of 4" tube weigh?
A: One 20' Stick of 4" Sanitary Tubing weighs approximately 75 pounds.
Q:You list gauge of this tubing at 16, but the wall thickness at 0.065". Isn't 16 gauge 0.0625"?
A: The wall thickness and gauges are all displayed in the table below. Please contact us if you have any other questions.
Q: Do you sell tubing in anything less than cases? I need to order just over 400 feet but don't want to pay for two cases as this is More than I need.
A: We do sell tubing on an individual basis however there is a $50 "broken box" fee applied to any order less than an entire case.Since we don't offer a way to order individual tube pieces online please call us to place an order over the phone.
Q: Do this product ship via freight?
A: Yes, our tubing comes in standard 20 foot lengths and will need to ship via freight. I'd also like to mention that there is a broken box charge meaning that if you do not order an entire box of tubing you will be charge additional fees as such. For more information please contact us. Thanks.
