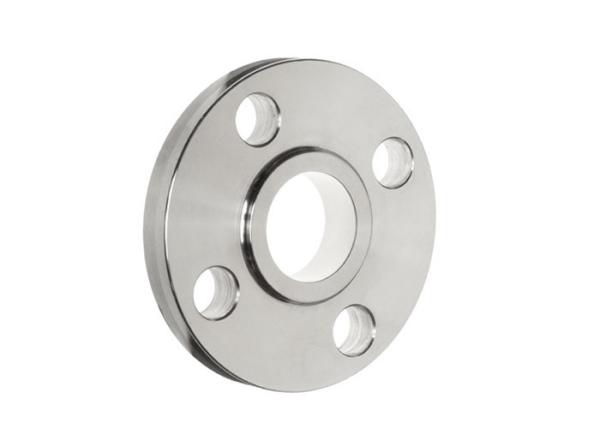

Class 3000 Socklet Slip On Flange Stainless Steel Flange 304 ASME B16.47
Class 3000 Socklet Slip On Flange Stainless Steel Flange 304 ASME B16.47
Specifications
Brand Name :
TOBO
Model Number :
ASME B16.47 304
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
China
MOQ :
1PC
Price :
Negotiation
Supply Ability :
100000PC/MONTH
Delivery Time :
15 working days
Packaging Details :
In wooden case, pallets or as per customers’ requirement
Product Name :
Slip-on Flange
Type :
Slip-on Flange
Pressure :
CL3000
Grade :
ASME B16.47 304
Standard or Nonstandard :
Standard
Size :
5''
Standard :
ASME/ANSI B16.47
Thickness :
STD
Description

ASME B16.47 Class 3000 Socklet Slip-on Flanges Stainless Steel Flange 304 5''

ASME/ANSI B16.47 Slip-on Flange

Slip-on flange refers to a kind of flange connected with vessel or pipe by fillet weld. Belongs to arbitrary flange. According to the integral degree of connection between flange ring and straight pipe segment, check the integral flange or loose flange respectively. Flange ring with neck and without neck two kinds. Compared with neck butt welding flange, plain welding flange has simple structure and less material, but its rigidity and sealing property are not as good as neck butt welding flange. Flat welding flange is widely used in the connection of medium and low pressure vessels and pipelines.

Product Name

304 5'' 3000# stainless steel slip-on flange

Standard

ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092

Type

WN Flange, So Flange, LJ Flange, LWN Flange, SW Flange, Orifice Flange, Reducing Flange, figure 8 blind (blank&Spacer)
Special Flange: According to the drawing Picture

Materials

Nickel Alloy: ASTM/ASME S/B366 UNS N08020, N04400, N06600, N06625, N08800, N08810, N08825, N10276,N10665,N10675
Super Stainless Steel: ASTM/ASME S/A182 F44, F904L, F317L
Stainles steel: ASTM/ASME S/A182 F304, F304L, F304H, F316, F316L, F321, F321H, F347H
Duplex Steel: ASTM A182 F51, F53, F55
Alloy Steel: ASTM/ASME S/ A182 F11, F12, F22, F5, F9, F91
Carbon Steel: ASTM/ASME S/A105, ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....ASTM/ASME S/A350 LF2, ASTM/ASME S/A694/A694M, F42, F52, F56, F60, F65, F70....

Dimension

(150#,300#,600#): DN15-DN1500
900# : DN15-DN1000
1500#: DN15-DN600
2500#:D N15-DN300

Marking

Supply Logo + Standard + Size(mm) + HEAT NO +or as your requirement

Test

Chemical Component Analysis, Mechanical Properties, Metallurgical Analysis, Impact Testing, Hardness testing , Ferrite Testing, Intergranular corrosion testing, X-ray Inspection (RT), PMI, PT, UT, HIC & SSC test, etc. or as your requirment

Brand

TOBO

Certificates

API, ISO, SGS, BV, CE, PED, KOC, CCRC, PDO, CH2M HILL and etc.

Advantages

1. Abundant stock and prompt delivery
2. Reasonable for whole packages and processes.
3. 15 years' QC team service & sales management API& ASTM trained engineers.
4. More than 150 customers spread worldwide. (Petrofac, G.S Engineer, Fluor, Hyundai Heavy industry, Kuwait National Oil, Petrobras, PDVSA, PetroEcuador, SHELL, etc.)

Specifications

1. Stainless steel flange

2. sch5s-schxxs

3. ISO9001,ISO9000

4. Market:America,Africa,Middle East,Southeast of Asia

Our Service Why Choosing Metal Industrial:

- Sufficient Forging, Heating, Machining Equipment

- In-house Inspection Instruments for Quality Controlling

- Competitive Price & High Quality Assurance

- Fast, Effective and Efficient Services

- Directly supplier of Danieli Metallurgical Equipment

- Experienced Professinonals on Communications

Our flanged outlets are flanged branch connection featuring:
  • Reduced installation and manufacturing cost
  • Longer life under cyclic fatigue loading
  • Butt-weld installation in header pipe
  • Shape in compliance with Shell Standard Drawing S38.090-C
  • Flange dimension according to ASME B16.5
