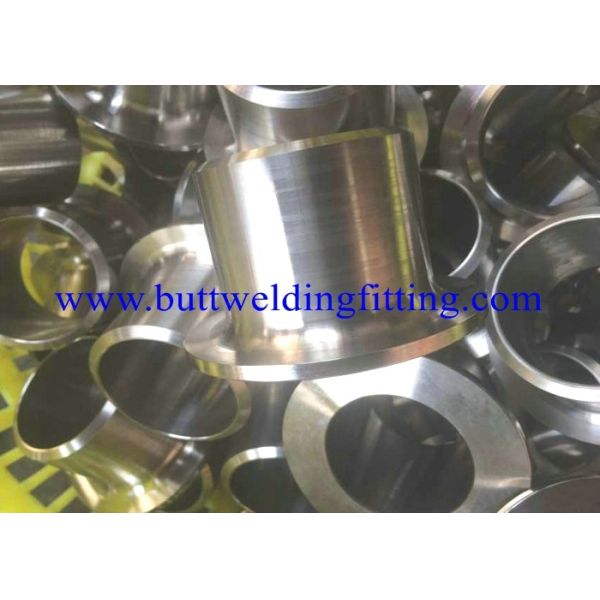

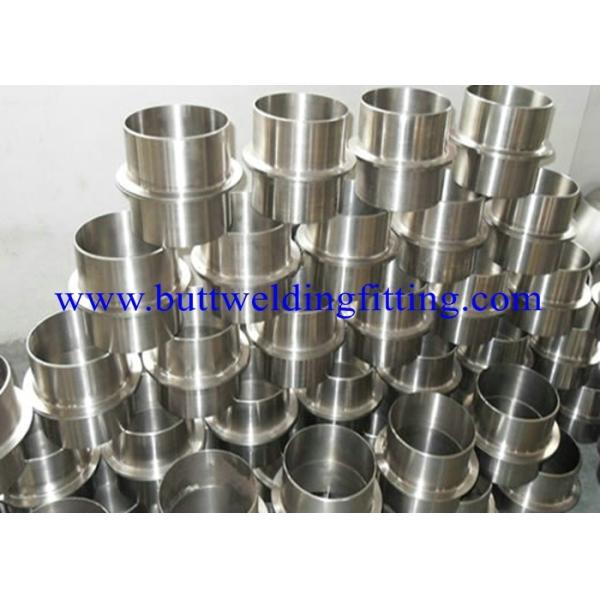

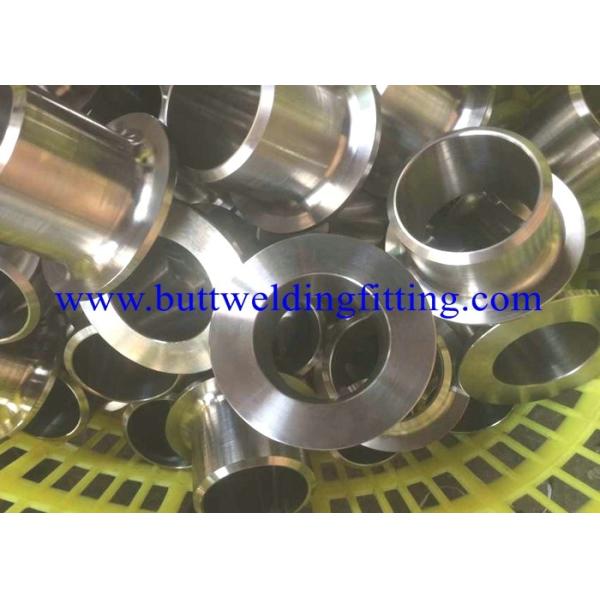

WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
Specifications
Brand Name :
TOBO
Model Number :
A403 WP316L WP321 WP310 WP317L
Certification :
SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Place of Origin :
CHINA
MOQ :
2PCS
Price :
USD0.3-100 PER PC
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
9990000PCS Per Month
Delivery Time :
15DAYS
Packaging Details :
PLY-WOODEN CASE OR PALLET
Product Name: :
Butt Welding Stainless Steel Fitting Stub end
Material Grade :
A403 WP316L WP321 WP310 WP317L
Size Range: :
DN15-DN600 (1/2"-24") Seamless Type DN15 - DN1200 (1/2"- 48" ) Welded type
Thickness: :
Sch5-Sch160, STD, XS, XXS
Standard: :
ANSI/ASTM B16.9/16.28, API 5L, DIN2617, JIS B2311/2312/2313
Description

WP321 WP310 WP317L Stainless Steel Stub Ends Lap Joint 1 Inch 8” SCH40S SCH80 SCH120

STUB ENDS IN STAINLESS STEEL

Designs

· Design according to ASME / ANSI B16.9, B16.28, MSS SP-43, MSS SP-75

· Seamless or welded design

Shapes:

· Elbows 45°, 90°, 180° (long & short), 3R

· Straight and reducting tees

· Concentric and eccentric reducers

· Caps

· Stub Ends

· Crosses

· Other non standard designs

· High wall thickness and large diameter butt weld fittings (seamless or mitered) on demand

· Special shaped butt weld fittings on demand

Materials

· Carbon steel: ASTM A234 WPB

· Alloy carbon steel: ASTM A 234 WP1, WP 11 cl 1, WP 22 cl 1, WP 5

· Low temperature carbon steel: ASTM A 420 WPL6, WPL3

· Austenitic stainless steel: ASTM A 403 WP 304/304L, WP 316/316L, WP 321

· Duplex, superduplex

· Monel, Inconel 625®, Hastelloy C 276®, 6Mo, Incoloy 825®

· Titanium, zirconium for highly corrosive applications

· Ductile iron for water applications

Dimensional Range

· Sizes: 1/2'' - 48'' (and above - i.e. special butt weld fittings)

· Schedules: STD, S40, XS, S80, S120, S160, XXS

· Heavy wall thickness / Large diameter fittings on demand

WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120

DN

NPS

Outside Diameter

Long Pattern Length,F

Short Pattern Length,F


Radius of Filet,R

Diameter of Lap,G

Max

Min

mm

Inch

mm

Inch

15

1/2

22.8

0.896

20.5

0.809

76

51

3

35

20

3/4

28.1

1.106

25.9

1.019

76

51

3

43

25

1

35.0

10376

32.6

1.284

102

51

3

51

32

1.1/4

43.6

10716

41.4

1.629

102

51

5

64

40

1.1/2

49.9

1.965

47.5

1.869

102

51

6

73

50

2

62.4

2.456

59.5

2.344

152

64

8

92

65

2.1/2

75.3

2.966

72.2

2.844

152

64

8

105

80

3

91.3

3.596

88.1

3.469

152

64

10

127

90

3.1/2

104.0

4.096

100.8

3.969

152

76

10

140

100

4

116.7

4.593

113.5

4.469

152

76

11

157

125

5

144.3

5.683

140.5

5.532

203

76

11

186

150

6

171.3

6.743

167.5

6.594

203

89

13

216

200

8

222.1

8.743

218.3

8.594

203

102

13

270

250

10

277.2

10.913

272.3

10.719

254

127

13

324

300

12

328.0

12.913

323.1

12.719

254

152

13

381

350

14

359.9

14.170

354.8

13.969

305

152

13

413

400

16

411.0

16.180

405.6

15.969

305

152

13

470

450

18

462.0

18.190

456.0

17.969

305

152

13

533

500

20

514.0

20.240

507.0

19.969

305

152

13

584

550

22

565.0

22.240

558.0

21.969

305

152

13

641

600

24

616.0

24.240

609.0

23.969

305

152

13

692

WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120WP321 WP310 WP317L Stainless Steel Stub Ends 1 Inch 8 inch SCH40S SCH80 SCH120
