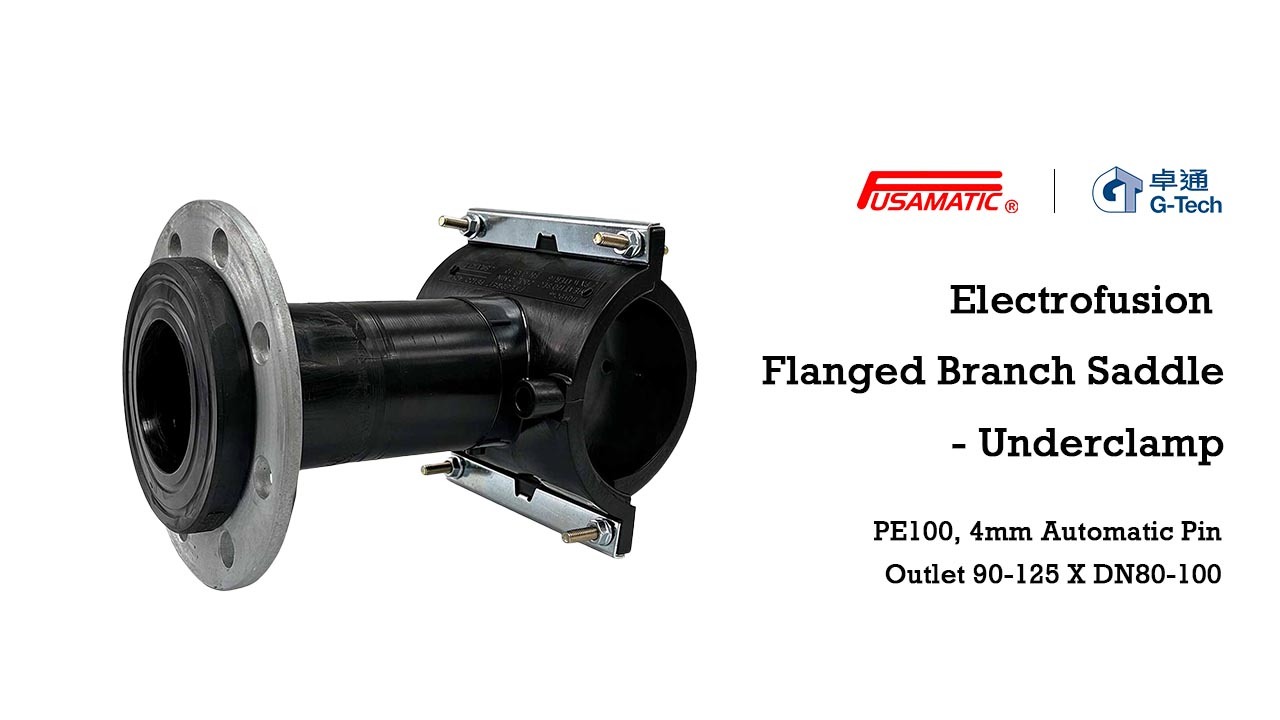

The flanged electrofusion branch saddle with underclamp combines a Fusamatic automatic pin with a DN80 or DN100 flanged outlet on PE mains from DN90 to DN250. The automatic pin reads the fitting and feeds the correct welding parameters to the fusion unit — eliminating manual input errors on site.

The U version is supplied as a complete assembly: flanged branch saddle plus galvanised backing ring (Class B per GIS PL2 Part 4). The sacrificial underclamp locks the fitting in place during the weld cycle and can be retained in-situ after installation. A rising pin fusion indicator provides permanent visual confirmation of a completed weld.

Manufactured from virgin PE100 black polyethylene. Rated Water PN16 / Gas 10 Bar. Suitable for gas, water, mining and irrigation applications. Operating temperature range: -10°C to +40°C. Covers SDR 11–17.6 (250mm body: SDR 11–21) — 10 standard references in total.

• Connection of flanged valves and control sets on medium PE gas/water distribution mains
• Meter connections and chamber branches on municipal networks
• Pump, filter and equipment take-offs from PE trunk lines
• Bypass, purging and off-take connections requiring flanged disconnection
• Mining and industrial process water flanged equipment connections

• Fusamatic automatic pin (4.0mm) — automatically provides correct welding parameters to the fusion unit
• Rising pin fusion indicator — permanent visual confirmation of completed weld, prevents re-use
• DN80 / DN100 flanged outlet — direct bolted connection to flanged valves, meters and equipment
• Galvanised backing ring included — Class B, GIS PL2 Part 4 (U version)
• Sacrificial underclamp — locks fitting during weld cycle, can be retained in-situ after installation
• Large electrofusion area — enhanced weld integrity
• Water PN16 / Gas 10 Bar rating (dependent on PE pipe welded)
• Manufactured using virgin PE100 black polyethylene
• Permanent batch number + barcode/QR code for full traceability (ISO 13950 / ISO 12176-4)

Note: U = Flange branch saddle assembly and galvanised backing ring. Class B — GIS PL2 Part 4. All stated specifications depend on the PE pipe welded and local regulations. Please contact us for detailed CAD drawings.

Our automatic-pin flanged branch saddles are third-party certified against international product standards for both gas and water applications, backed by ISO 9001 and ISO 29001 quality management system approvals.

• EN ISO 15494 Plastics piping systems — Polyethylene (PE) for industrial applications
• EN 12201-3 Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings
• EN 1555-3 Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4437-3 Plastics piping systems for gas supply — Polyethylene (PE) — Part 3: Fittings
• ISO 4427-3 Plastics piping systems for water supply — Polyethylene (PE) — Part 3: Fittings

Note: Regional variations may apply. Other product certificates available upon request.

We export PE electrofusion fittings worldwide. Flanged branch saddles with galvanised backing rings are carefully packed for safe sea freight.

We stand behind the quality of our electrofusion fittings. Our commitment doesn't end at delivery — we provide comprehensive technical support for your PE pipeline project.

Common questions about our automatic-pin flanged branch saddle with underclamp.
