EPDM Butterfly Valve Parts Seat 2 - 24 Ozone / Weather / Heat Resistance
EPDM Butterfly Valve Parts Seat 2 - 24 Ozone / Weather / Heat Resistance
EPDM Butterfly Valve Parts Seat 2 - 24 Ozone / Weather / Heat Resistance
EPDM Butterfly Valve Parts Seat 2 - 24 Ozone / Weather / Heat Resistance
EPDM Butterfly Valve Parts Seat 2 - 24 Ozone / Weather / Heat Resistance
EPDM Butterfly Valve Parts Seat 2 - 24 Ozone / Weather / Heat Resistance
Specifications
Brand Name :
SML
Model Number :
92801556
Certification :
KTW W270 EN681-1，ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS
Place of Origin :
Suzhou, China
MOQ :
10 pieces
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
30,000 PCS / month
Delivery Time :
10-15 days
Packaging Details :
plywood case, size 115*71*61cm
Color :
white, black, red, nature...
Size range :
2''-24''
Material :
customized
Application :
centerline butterfly valve
Type :
hub seal
Suitable media :
water, drinking water, potable water...
Temperature :
-60℃~150℃
Hardness :
customized
Description

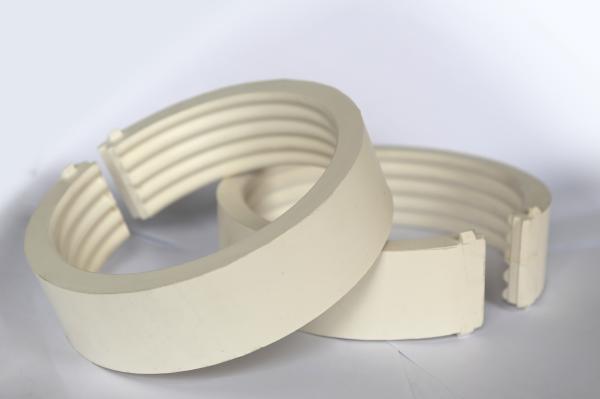

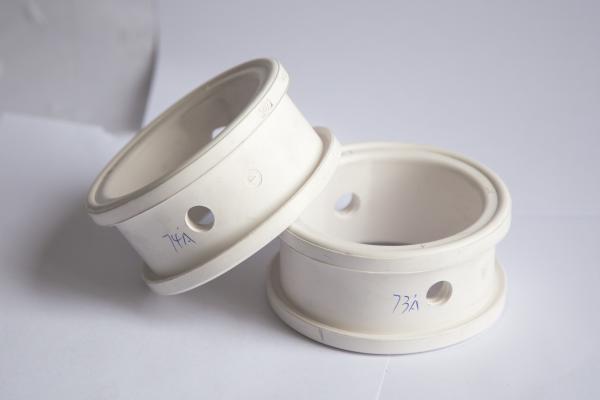

Ozone / weather / heat resistance EPDM butterfly Valve Seat 2''-24''

Basic characteristics of EPDM:

1. The relative density of EPDM rubber is small (0.85-0.86), and it still has the characteristics of ozone resistance, weather resistance, heat resistance and chemical stability of binary ethylene propylene rubber.

2. It can be vulcanized by sulfur vulcanization system or crosslinked with organic peroxide to produce high strength products.

3. Good low temperature resistance and electrical insulation performance.

4. It can withstand the high capacity of fillers and oils when blended.

5. Compatible with unsaturated rubber, low-unsaturated rubber and plastic.

6. Due to the good physical properties of the vulcanized rubber surface, it is suitable for making foamed products.

7. Unvulcanized rubber has poor adhesion.

Applications: Mainly used in the automotive industry, wire and cable industry, construction and waterproof materials, industrial rubber products, civil products, combined with other rubber and plastic resins, or blended, and additives.

Heat / Cold Resistance of different rubbers

Rubber Name Short Name Heat Resistance ℃ Cold Resistance ℃
Natural Rubber NR 100 -50
Nitrle Rubber NBR 120 -20
Polychloroprene CR 120 -55
Styrene Butadiene copolyme SBR 100 -60
Silicone Rubber SI 250 -120
Fluororubber FKM/ FPM 250 -20
Polysulfide Rubber PS / T 80 -40
Vamac(Ethylene/Acrylic) EPDM 150 -60
Butyl Rubber IIR 150 -55
Polypropylene Rubber ACM 160 -30
Hypalon. Polyethylene CSM 150 -60

Product Advantages:

1. Rubber and reinforcing material firmly bonded.

2. Rubber elasticity and excellent compression.

3. Stable seat dimensions, low torque, excellent sealing performance, wear resistance.

4. All internationally renowned brands of the raw materials with stable performance.

EPDM Butterfly Valve Parts Seat 2

EPDM Butterfly Valve Parts Seat 2

EPDM Butterfly Valve Parts Seat 2
