Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
Specifications
Brand Name :
Customized
Model Number :
928015C5
Certification :
KTW W270 EN681-1，ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS
Place of Origin :
Suzhou, China
MOQ :
100 pieces
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
50,000 pieces / month
Delivery Time :
10-15 days
Packaging Details :
plywood case size 115*71*61cm
Color :
black / nature
Material :
Silicone, EPDM, NBR, FKM
Temperature :
-60℃~250℃
Product Name :
elastic butterfly valve seat
Suitable media :
water, potable water, drinking water, wastewater...
Hardness :
customized
Description

Full size soft back / rubber valve seat for centerline butterfly valve


Heat / Cold Resistance of different rubbers

Rubber Name Short Name Heat Resistance ℃ Cold Resistance ℃
Natural Rubber NR 100 -50
Nitrle Rubber NBR 120 -20
Polychloroprene CR 120 -55
Styrene Butadiene copolyme SBR 100 -60
Silicone Rubber SI 250 -120
Fluororubber FKM/ FPM 250 -20
Polysulfide Rubber PS / T 80 -40
Vamac(Ethylene/Acrylic) EPDM 150 -60
Butyl Rubber IIR 150 -55
Polypropylene Rubber ACM 160 -30
Hypalon. Polyethylene CSM 150 -60

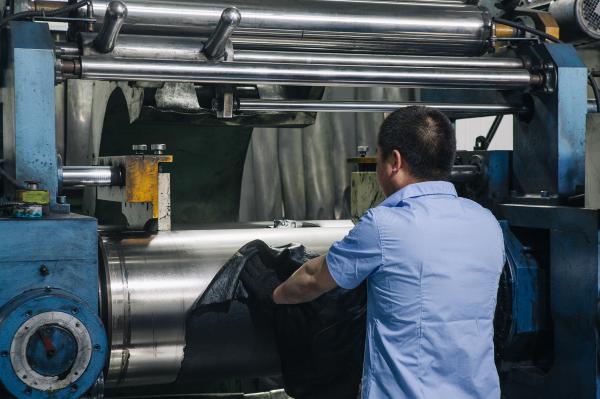

Production Devices in factory

Equipment Name Scope Quantity
Open Mixing Mill XSK400/300 4
Vacuum Vulcanizing Machine 250T 12
Vacuum Vulcanizing Machine 500T 2
Plate Vulcanizing Machine 250T 4
Internal Mixer 35L 2
Injection Curing Machine 200T 1
Cutting Machine 660mm 1
Big Oven 　 3

Testing equipment in factory

Equipment Name Range Ability Model
Electronic Tensile Machine 0 - 500N WT2000E
No-roter Vulcanizer Test lab MDR-2000E
Mooney Viscometer Test lab MD-300
Heat Aging Chamber Test lab 401A
Temperature and Humidity Chamber Test lab LTH-A4
Image Measuring Instrument Test lab vms2010
Thermoscope -50 - 250℃ TM-902C
Caliper 10 - 160mm C1012060517
Digital Caliper 0 - 150mm KE606558
Vernier Caliper (Inch) 1 - 36 Inch 6230
Durometer 0 - 100 GS-706N
Digital Durometer 0 - 100 LX-A
Mini Electronic Scales 410g EB1133
Electronic Scales 0 - 6kg DSO-861
Quality Management (Kanban)
Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve

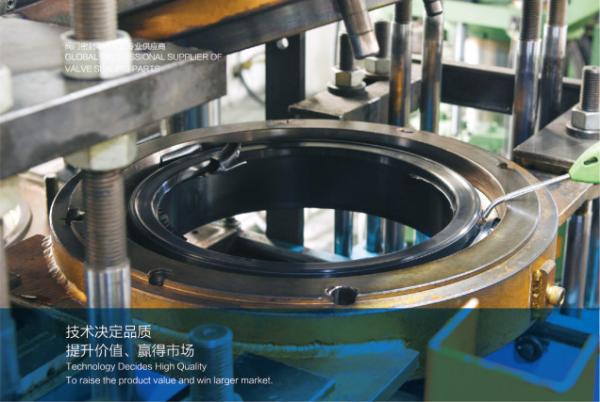

Workshop Production Process Flow

Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve

Raw material storage → Incoming inspection → Batching → Mixing → Physical Property Test

→ Place → Clipping → Molding → Trim and Check → Packaging and shipping

Full Size Soft Back / Rubber Valve Fkm Seat For Centerline Butterfly Valve
