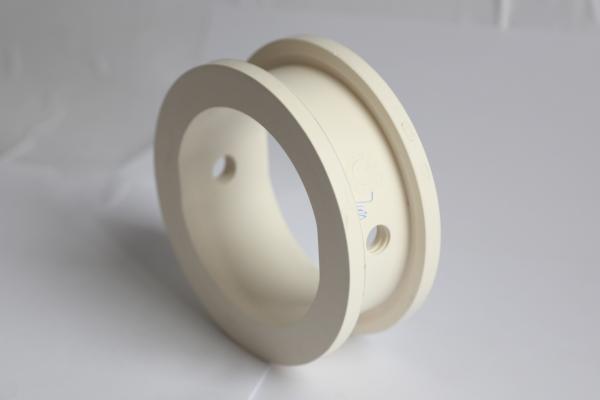

Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
Specifications
Brand Name :
Customized
Model Number :
928015C5
Certification :
KTW W270 EN681-1，ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS
Place of Origin :
Suzhou, China
MOQ :
100 pieces
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
50,000 pieces / month
Delivery Time :
10-15 days
Packaging Details :
plywood case size 115*71*61cm
Color :
white, black, red, nature...
Material :
Butyl Rubber (IIR)
Temperature :
-54 ~110 degree
Product Name :
elastic butterfly valve seat
Suitable media :
water, potable water, drinking water, wastewater...
Media :
Water,Oil,Gas,Base,Liquid
Performance :
replaceable
Description

Butyl Rubber (IIR) Butterfly Valve Liners / Soft Valve Seats

Butyl Rubber (IIR):

Butyl Rubber is formed by the polymerization of isobutylene with small amount of isoprene. Because the movement of methyl groups is less than other polymers, it has less gas transmittance, greater resistance to heat, sunlight and ozone, and better electrical insulation. Good resistance to polar capacitive agent, the general using temperature range is -54 ~110 degree.

Common used materials quick selection:

Summary table of rubber properties (Suzhou Meilong)
Rubber Name Natural rubber Butadiene rubber Butadiene styrene rubber Butyl rubber Ethylene propylene rubber Ethylene-vinyl acetate copolymer Neoprene Chlorosulfonated polyethylene Buna-N rubber Polyurethane rubber Silicone Rubber Fluororubber
Short Name NR BR SBR IIR EPM
EPDM		 EVA CR CSM NBR PU SI FPM
Pure rubber performance Proportion 0.91~0.93 0.91~0.94 0.93~0.94 0.91~0.93 0.86~0.87 0.98~0.99 1.15~1.25 1.11~1.18 1.00~1.20 1.00~1.30 0.95~0.98 1.80~1.82
Refractive index(ND) 1.59 〜 5339~1.53 .508~1.50 〜 〜 1.353~1.560 〜 1.521 〜 〜 〜
Solubility parameter(SP) 7.9~8.1 8.4~8.6 8.4~8.6 7.7~8.06 7.9~8.0 〜 8.85 8.1~9.3 9.64 10 7.3 7.3
Mooney viscosity ML1+4,100℃ 90~150 35~55 30~60 45~75 45~120 20~30 45~120 30~55 30~100 25~60 〜 65~180
Processability A A A C B A A B A C B C
Vulcanized rubber mechanical properties Hardness (Shore A) 10~100 30~100 30~100 20~90 30~90 50~90 10~90 50~90 15~100 10~100 30~90 50~90
Tear strength kg/cm2 30~300 20~200 50~200 50~150 50~200 70~200 50~250 70~200 50~250 200~450 40~100 70~200
Elongation % 100~1000

100~

800

100~

800

100~

800

100~

800

100~

600

100~

1000

 100~500

100~

800

 300~800 50~500 100~500
Elasticity A A B C B B A B B A A C
Tear strength A B C B C B B B B A C~D B
Compression set A B B C B B A B A A A B
Wear resistance A A A B B B A~B A A A C~D A
Flexural crack resistance A C B A B B B B B A B~D B

Advantages:

impermeable to most of gases, good resistance to sunlight and odor. It can be exposed to animals or vegetable oils and gasifiable chemicals.

Disadvantages:

It is not recommended to together use with petroleum solvent, rubber kerosene and aromatic hydrogen the inner tube, leather bag, rubber paste paper, window frame rubber, steam hose, heat-resistant conveyor belt and so on.

Butyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve SeatsButyl Rubber ( IIR ) Butterfly Valve Parts Liners / Soft Valve Seats
