Specifications
Brand Name :
OEM/ ODM
Model Number :
928015C5
Certification :
KTW W270 EN681-1,ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS
Place of Origin :
Suzhou, China
MOQ :
100 pieces
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
50,000 pieces / month
Delivery Time :
10-15 days
Packaging Details :
plywood case size 115*71*61cm
Color :
white, black, red, nature
Material :
based on application
Temperature :
-60℃~250℃
Name :
rubber valve seat
Hardness :
customized
Certifications :
KTW W270 EN681-1,ACS,NSF61/372,WRAS,EC1935,FDA,EC1935,REACH,ROHS
Description

High reliability and Extended service life Butterfly Rubber Valve Seat

Benefits of Butterfly Valve seats from SML

All raw materials are sourced from international brands with stable property
Good elasticity
Excellent compressive properties
Stable dimensions
Small torque
Good sealing performance
Good wearing resistance

Workshop Production Process Flow

Raw material storage → Incoming inspection → Batching → Mixing → Physical Property Test

→ Place → Clipping → Molding → Trim and Check → Packaging and shipping

Material Quick Selection Table:

Material Suitable Temp. Characteristics
NBR

-35℃~100℃

Instant -40℃~125℃

Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons.
EPDM

-40℃~135℃

Instant -50℃~150℃

Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.

CR

-35℃~100℃

Instant -40℃~125℃

Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack.
FKM

-20℃~180℃

Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system.
SR -70℃~200℃ Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food.

Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene

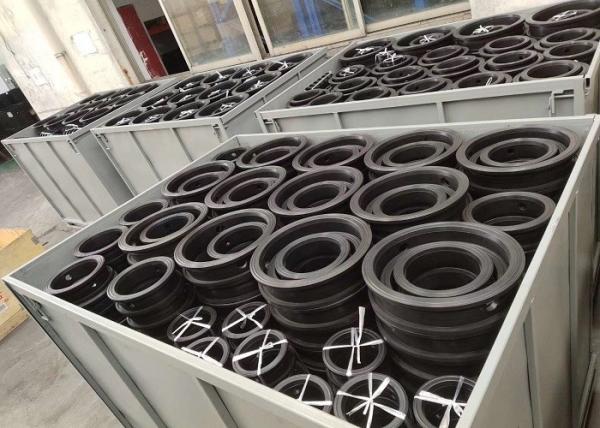

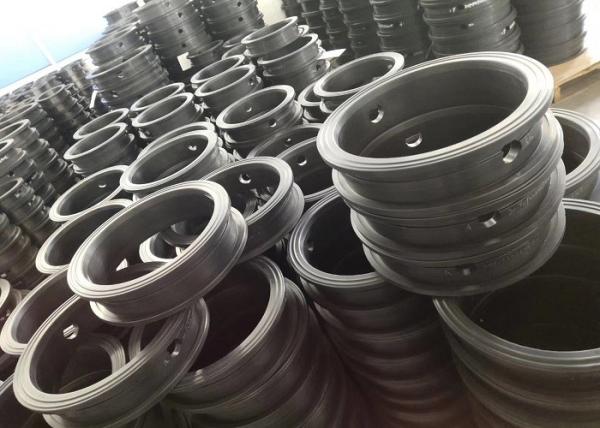

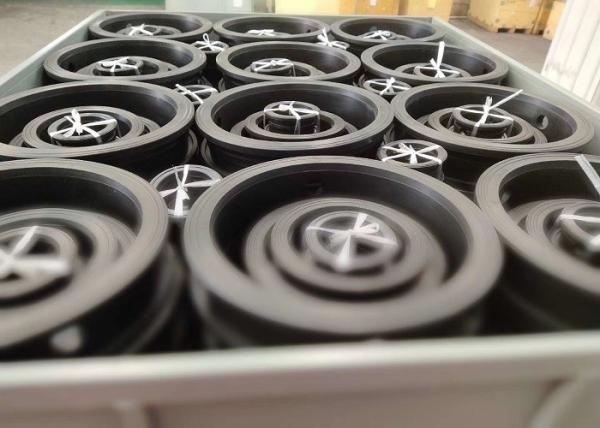

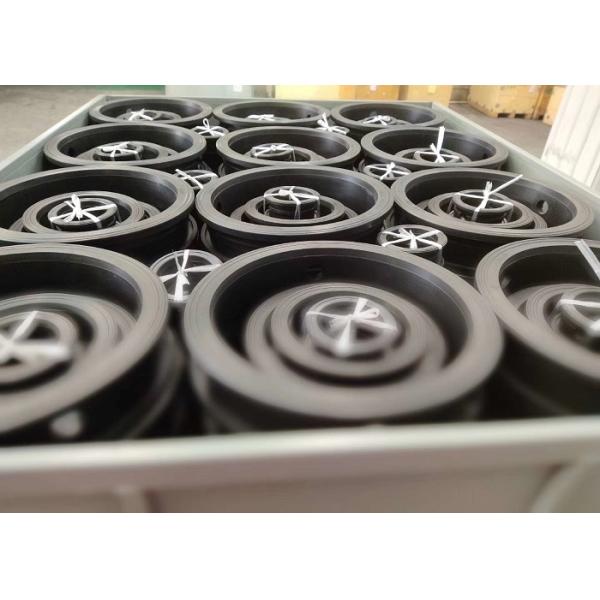

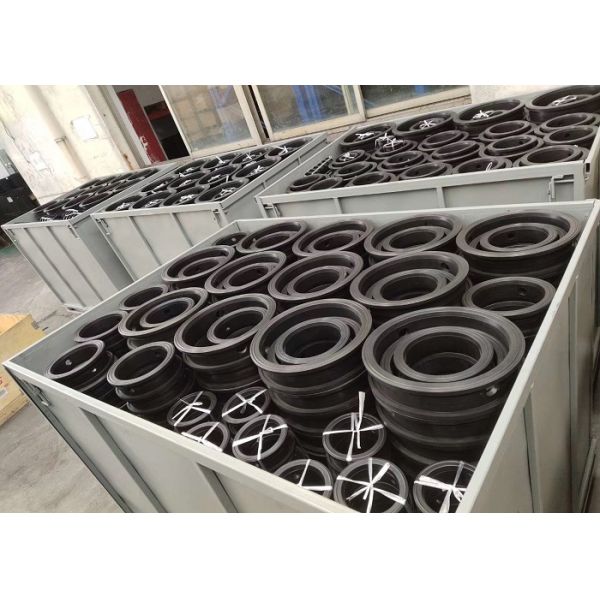

Packaging

Rubber Butterfly Valve Seat High Reliability And Extended Service LifeRubber Butterfly Valve Seat High Reliability And Extended Service Life
