Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
Specifications
Brand Name :
Customized
Model Number :
704005Y1
Certification :
ISO, WRAS, ACS, FDA, DVGW, NSF, SGS
Place of Origin :
Suzhou, China
MOQ :
100 pieces
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Supply Ability :
2000PCS/ month
Delivery Time :
10-15 days
Packaging Details :
carton size 50*30*30cm
Material :
EPDM / NBR / FKM
Color :
white, black, red, green, blue...
Hardness :
45~70 ℃
Dimension :
customized
Application :
Valve sealing
Style :
Mechanical Seal
Product name :
Rubber Ring Seal
Oem/odm :
accepted
Description

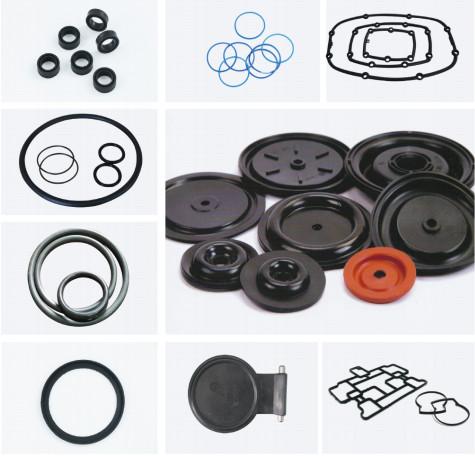

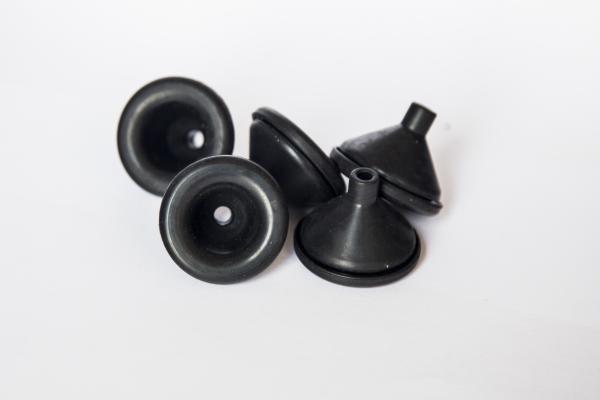

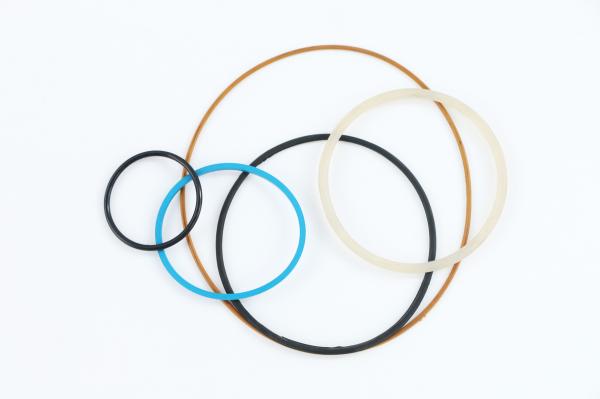

Rubber fittings for valve sealing / temperature / noise / vibration / oil requirements

Material: EPDM NBR FKM SBR SICONE HNBR CR CSM PU

Certified: KTW W270 EN681-1,ACS,NSF61/372;WRAS,EC1935;FDA,EC1935;REACH,ROHS

Color: Customized. white, black, red, nature...

Hardness: customized

Dimension: according to 2D/ 3D drawings

Performance:

1. Good elasticity and excellent compression performance.
2. Stable size, low torque, good sealing performance and good wear resistance.
3. All raw materials are internationally renowned brands with stable performance.

4. Excellent sealing performance.
5. Wide range of applications.
6. Wide temperative range.
7. Customized to specific applications.

Material Quick Selection Table:

Material Suitable Temp. Characteristics
NBR

-35℃~100℃

Instant -40℃~125℃

 Nitrile rubber has good self-expanding properties, abrasion resistance and hydrocarbon-resistant properties. It can be used as a general material for water, vacuum, acid, salt, alkali, grease, oil, butter, hydraulic oil, glycol, etc. Can not be used in places such as acetone, ketone, nitrate, and fluorinated hydrocarbons.
EPDM

-40℃~135℃

Instant -50℃~150℃

Ethylene-propylene rubber is a good general-purpose synthetic rubber that can be used in hot water systems, beverages, dairy products, ketones, alcohols, nitrates, and glycerin, but not in hydrocarbon-based oils, inorganics, or solvents.
CR

-35℃~100℃

Instant -40℃~125℃

 Neoprene is used in media such as acids, oils, fats, butters and solvents and has good resistance to attack.
FKM

-20℃~180℃

 Fluororubber is a good hydrocarbon-resistant base oil, fluorinated hydrocarbon rubber for oily gas and other petroleum products. It is suitable for water, oil, air, acid and other media, but it can not be used for steam, hot water or thicker than 82 °C. Alkali system.
SR -70℃~200℃ Silicone rubber is resistant to high temperature, low temperature and stable chemical properties, and is widely used in industries such as strong acid, weak alkali and food.

Special materials: carboxylated nitrile rubber, hydrogenated nitrile rubber, corrosion-resistant ethylene-propylene rubber, steam-resistant fluoroelastomer, chlorosulfonated polyethylene

Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements

Valve Sealing Rubber Fittings Temperature / Noise / Vibration / Oil Requirements
