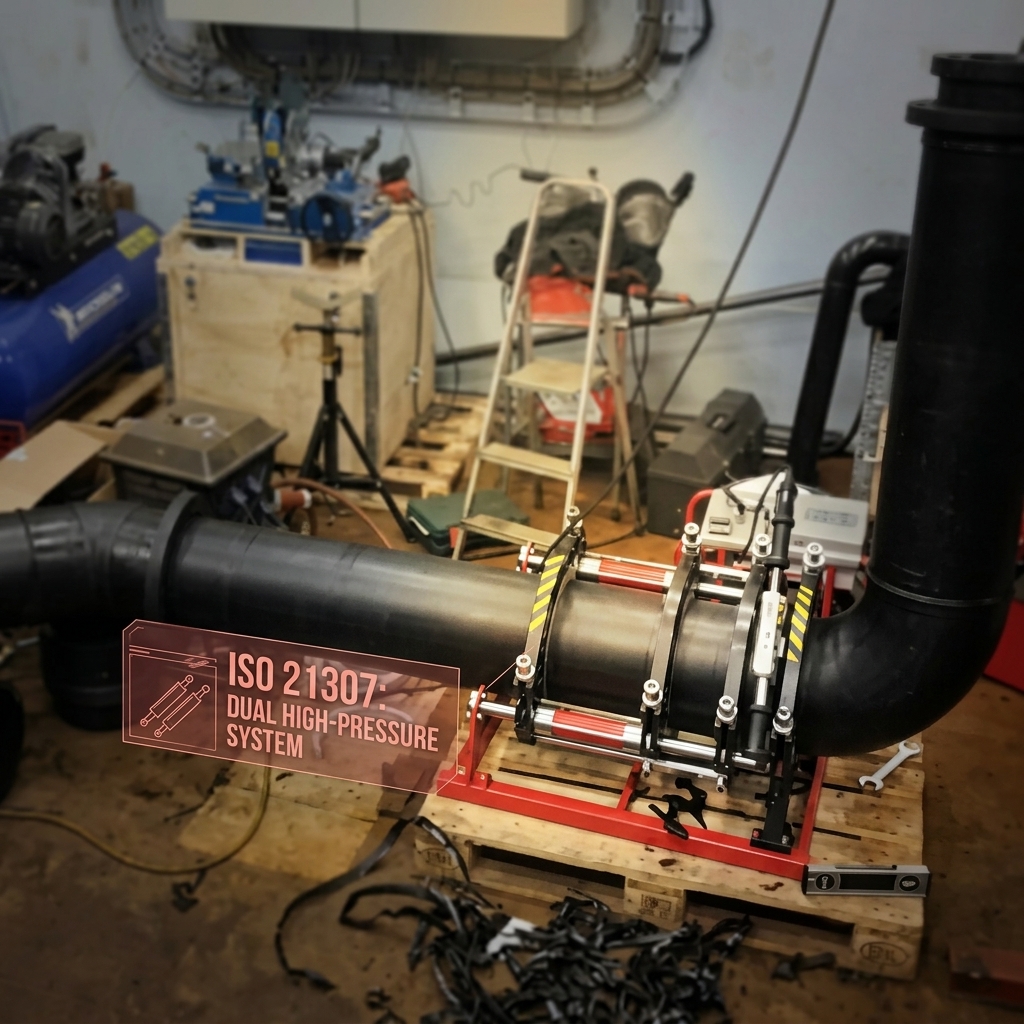

500mm Butt Welder PE100 Water Gas Pipe | Hydraulic Fusion Machine
500mm Butt Welder PE100 Water Gas Pipe | Hydraulic Fusion Machine
500mm Butt Welder PE100 Water Gas Pipe | Hydraulic Fusion Machine
500mm Butt Welder PE100 Water Gas Pipe | Hydraulic Fusion Machine
500mm Butt Welder PE100 Water Gas Pipe | Hydraulic Fusion Machine
500mm Butt Welder PE100 Water Gas Pipe | Hydraulic Fusion Machine
Specifications
Description

Hydraulic Butt Fusion Thermofusion Welder Description

Basic Frame: German-origin oil seal kit ensures stable pressure performance. Four quick couplings (STUCCHI, Italy) prevent hydraulic oil leakage during connection/disconnection. Integral shaft with chromate treatment replaces assembled shafts — guaranteeing chassis strength and preventing frame twist when dragging pipes at extreme parameters.

Heating Plate: Dupont (USA) coating — the industry benchmark. Multiple stickers on aluminum plate, highly non-stick to plastic pipe surfaces. Temperature deviation across the plate is 2-3°C (small machines) and 5-6°C (large machines).

Hydraulic Power Station: Solid relays with higher load capacity and extended service life. Circuit breaker with leakage protection switch — dual-element protection (including earth wires) activates when electricity leaks. Non-fan motor (small machines) — waterproof, sand-proof, dust-proof at a higher protection level. Motor delivers sufficient power for hydraulic support.

Hydraulic Butt Fusion Thermofusion Welder Specification
Product NameHydraulic Butt Fusion Thermofusion Welder
Model
SMD-B500/200H
Pipe size (MM)
200-500MM
ApplicationPE Pipe & Fitting Welding
Heating plate Max. Temperature
270℃
Temp.deviation in surface (170-250 ℃)
≤±7℃
Pressures Adjustable Ranges
0-8.0Mpa
Working Voltage
380/415V 50/60HZ
Heating plate power
9.35KW
Planing tool power
1.5KW
Hydraulic unit power
1.5KW
Total Power
12.35KW
Weight
700KG
Packing
Cases
4 plywood cases
Volume
4.43CBM

FAQ

1. ZEMOWELD: Hebei, China — comprehensive manufacturer and professional exporter of thermoplastic welding equipment.
2. Quality: pre-production samples + final inspection.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic, Fittings, Pipe Tools.
4. CE/ISO/BV/SGS/CNAS certified. 40mm to 3000mm capability.
5. FOB/CFR/CIF/EXW/FAS/CIP/FCA/CPT/DDP/DDU. Payment: USD/EUR/CNY via T/T, L/C, D/P, D/A, MoneyGram, PayPal, Western Union.

Warranty

ISO21307:2011(E), ISO12176-1 and DVS2207/1(08/2007) compliant.
24-month international warranty with free replacement of defective components.
