Professional HDPE Manual Butt Welder Overview

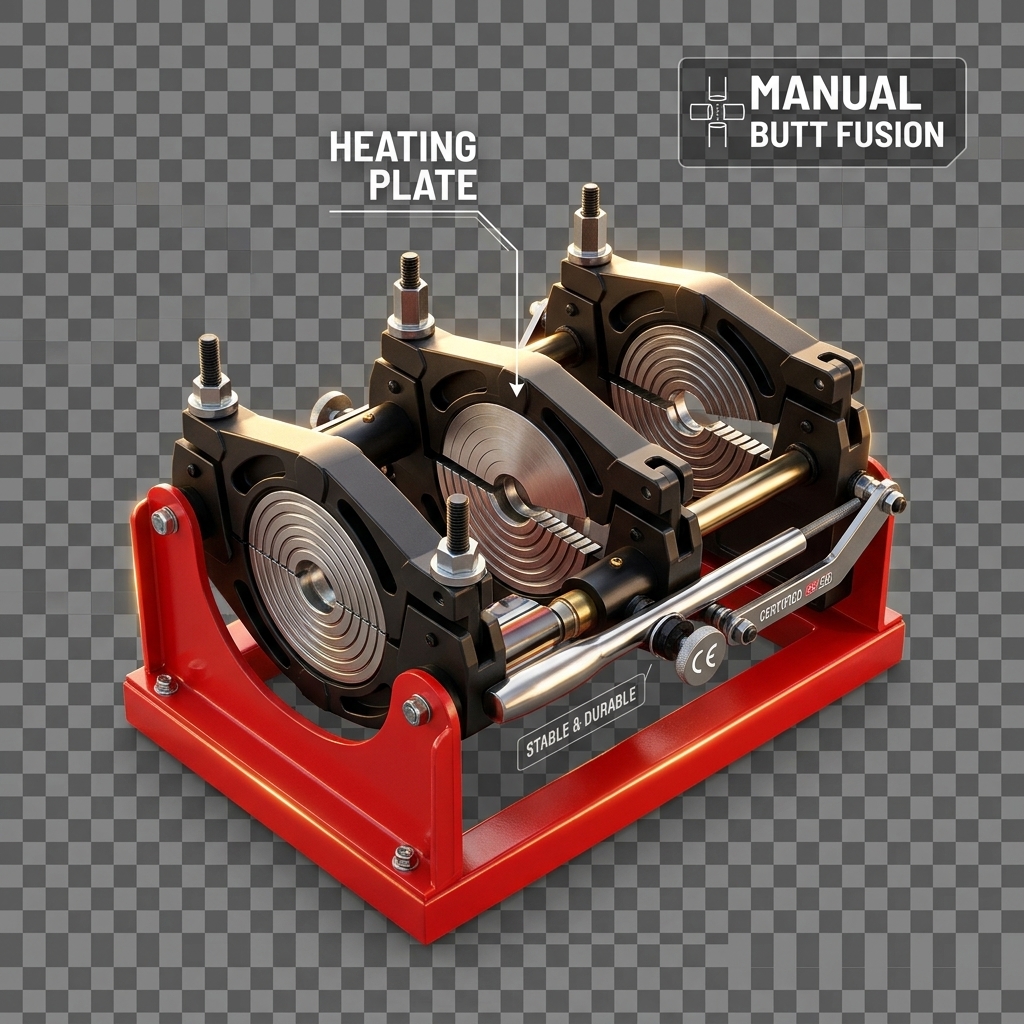

Since 2000, Zemotech has been at the forefront of butt fusion welding equipment manufacturing. This SMD-B160/50M manual hydraulic hand pump butt fusion welder incorporates premium-grade components for exceptional service life with minimal maintenance requirements. Designed for easy field operation, it delivers reliable, high-strength welds on HDPE, PP, and PVDF pipes up to 160mm diameter.
Manual Hdpe Butt Welder Specification
Product name110V 60HZ CE Manual Hdpe Butt Welder
Model
SMD-B160/50M
Pipe size (mm)
50,63,75,90,110,125,140,160
Pipe materialPE PP PVDF PPR HDPE etc
Heating plate Max. Temperature
270℃
applicationButt Weld Fusion PE PP PVDF PPR HDPE etc
Temp.deviation in surface (170-250 ℃)
≤±7℃
Working Voltage
220V , 50/60HZ , single phase
Heating plate power
1KW
Planing tool power
0.7KW
Total Power
1.7KW
Weight
44KG
Packing
Cases
2 plywood cases
Volume
0.31CBM

Key Features

Heavy-duty hydraulic hand pump system for precise pressure control.

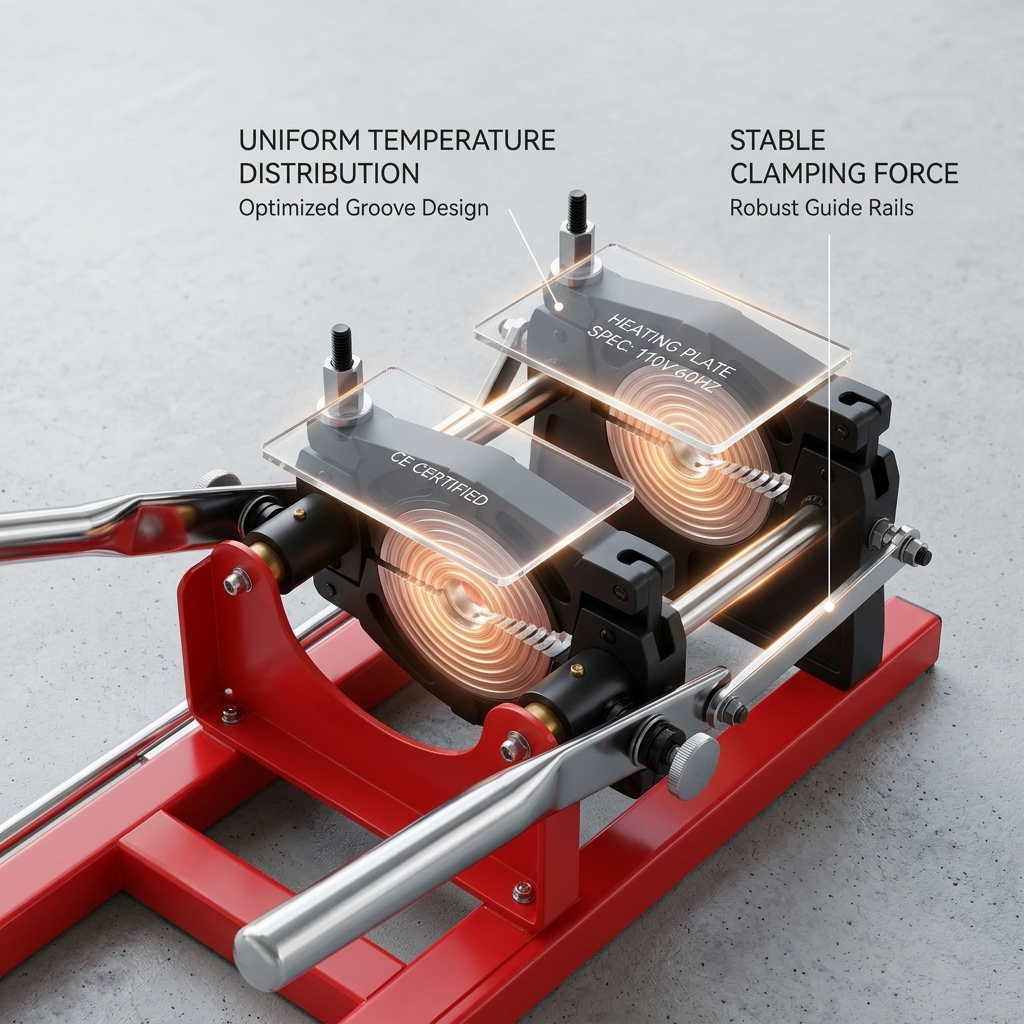

PTFE-coated heating plate with independent thermal regulation.

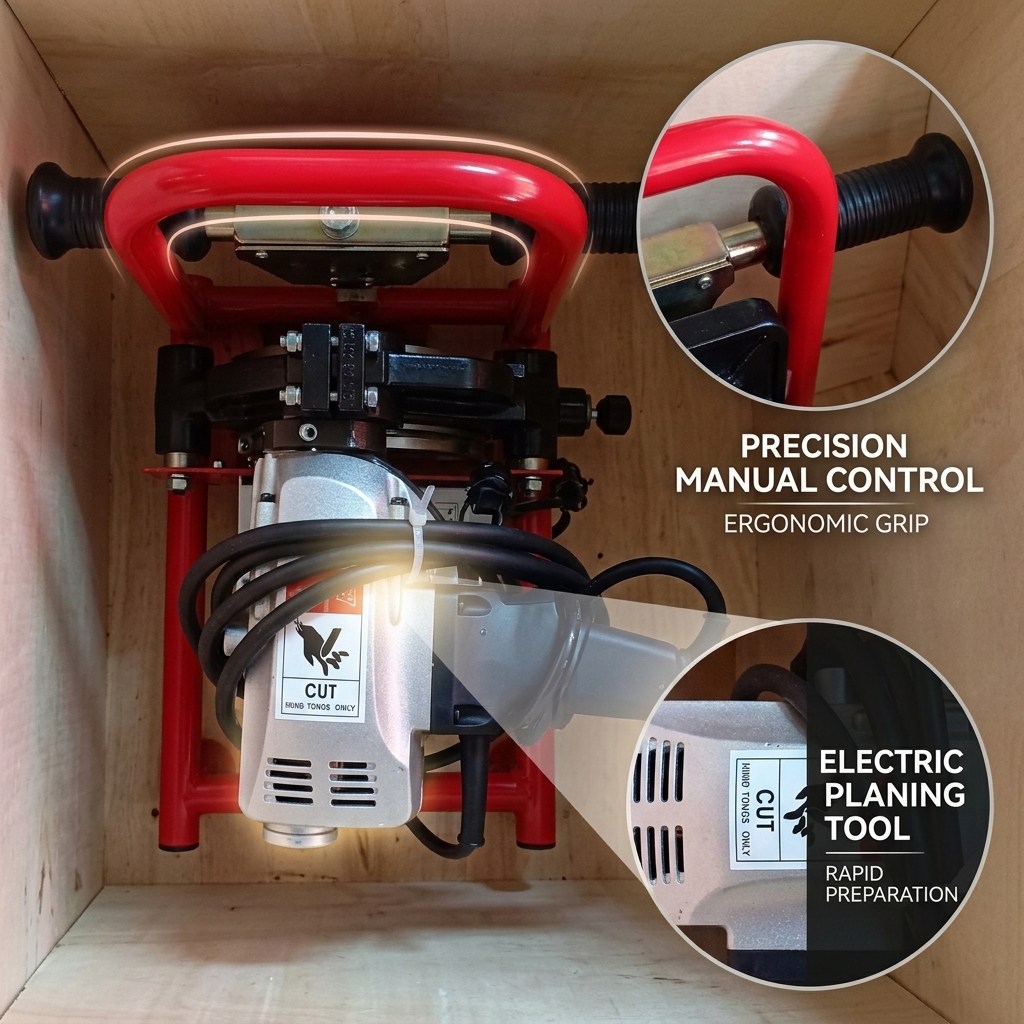

Electric planing tool for clean, parallel pipe end preparation.
Lightweight aluminum frame — easy to maneuver in field conditions.
CE and ISO certified for international quality compliance.

FAQ

1. ZEMOWELD — 20+ years manufacturing thermoplastic welding equipment for global export.
2. Quality: pre-production samples + final inspection guarantee performance.
3. Products: Butt Fusion, Electrofusion, PPR, Automatic Plastic Welders, HDPE Fittings, Pipe Tools.
4. Certified: CE, ISO, BV, SGS, CNAS lab. 40mm-3000mm welder range.
5. Delivery: FOB/CFR/CIF/EXW. Payment: T/T, L/C, D/P, D/A, Western Union, PayPal.
