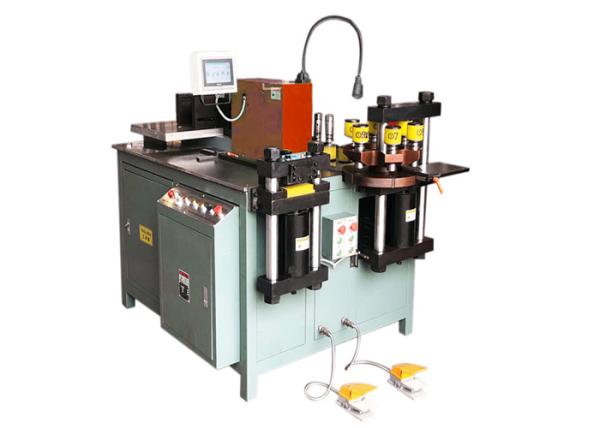

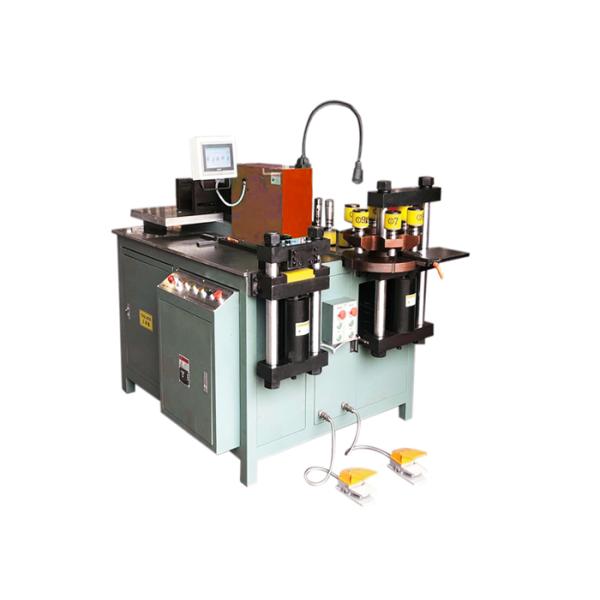

Multi Function Busbar Machine With Copper Bush Friction KD603-S
Multi Function Busbar Machine With Copper Bush Friction KD603-S
Specifications
Brand Name :
Kiande
Model Number :
KD603-S
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
customized
Payment Terms :
T/T, L/C
Supply Ability :
10set/ month
Delivery Time :
30 working days
Packaging Details :
plywood case
Name :
KD603-S
Table size ( mm ) :
1500x1200 840 x 370
 Weight (kg) :
1510
Motor No. :
4
Total power(kw) :
11.37
Voltage (V) :
380
Description

KD603-S Muli-function busbar machine

Its characteristic ia as follow:
Punching and cutting unit adopt double pillar structure with cooper bush friction. Its design is unique, force is reasonable, that can effectively guarantee deformation for long time using;
Punching die adopt drawer-type. Precision is high,operation is simple;
Bending unit adopt integral casting structure,angle NC(PLC,grating scale and touch screen control bending.), operation is simple,precision is high;
The machine adopts double work table design scheme and three unit can work at the same time without each other;
The machine is equipped with automatic refueling and draining oil system, operation is simple and convenient;
High performance hydraulic system, imported hydraulic components,(p10 mm bore diameter solenoid valve, low noise, stable and reliable performance;
The diameter of Punching and cutting cylinder is φ60 mm, working pressure is 60 tons, that greatly improve the workpiece machining scope.

Machine configuration

Table size ( mm )

1500x1200

840 x 370
Weight (kg) 1510
Motor No. 4
Total power(kw) 11.37
Voltage (V) 380
No. hydraulic station 3x31.5
Control method PLC + Angle numerical control

Technical parameters

Items Material Thickness'Width Max.punching Max. pressure
Punch unit Copper / aluminum Thickness16mm φ32 600KN
Shear unit Copper / aluminum 16x 160mm 600KN
Bend unit Copper / aluminum 16x 160mm 350KN

Multi Function Busbar Machine With Copper Bush Friction KD603-S
