Specifications
Brand Name :
Kiande
Model Number :
KD-MJQ-2
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Price :
Custmized
Payment Terms :
L/C, T/T
Supply Ability :
100SET/month
Delivery Time :
30 days
Packaging Details :
carton box or plywood case
Name :
Self Piercing Rivet Gun
Model :
KD-MJQ-2
Max. Pressure :
25MPa
Gun Head Stroke :
50mm
Aluminum Thickness :
3mm+3mm
Iron Thickness :
1.5mm+1.5mm
Oil Pipe Length :
10000mm
Oil Tank Capacity :
50L
Description

Automatic Tubular Rivet Tool Busbar Machine Self Piercing

  • Easy and quick installation
  • Extensive choice of termination elements
  • Wide adaptability of bus duct layout
  • High Short Circuit Withstand & Low Voltage Drop
  • Compact Dimensions
  • 100% reusable standard elements
  • Accessories like tap offs can be fit anywhere along the busbar henæ reducing
  • floor area usage
  • Lower Downtime in case of faults

Equipment data on self-piercing riveting machine

No. Parameters
Model KD-MJQ-2
Max. Pressure 250MPa
Oil Pipe Length 10000mm
Oil Tank Capacity 50L
Gun Head Stroke 50mm
Aluminum Thickness 3mm+3mm
Iron Thickness 1.5mm+1.5mm
Power 380~415VAC 50~60Hz 4.5kW

Function introduction

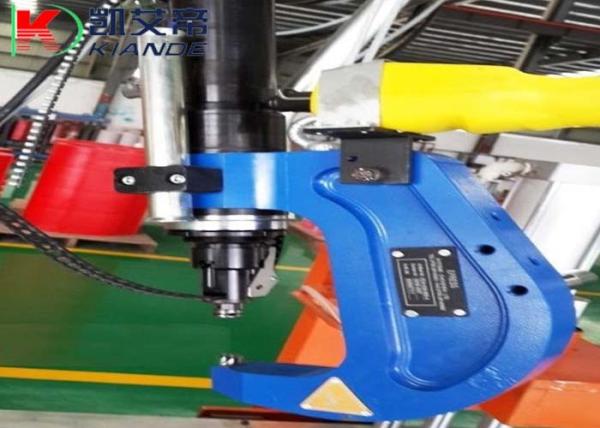

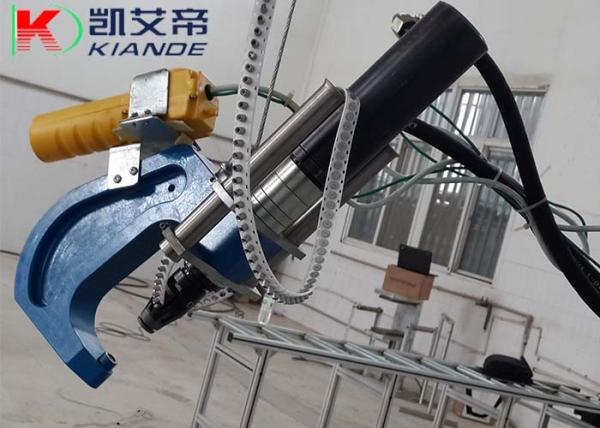

Self-piercing riveting machine, also called riveting gun, is applied for busbar assembly. It can be customized according to different busbar housing. Before riveting, the operator does not need to drill the hole. The machine can realize self-piercing riveting by its pressure and rivet structure. The working principal is as below.

Features:

1, The supercharger drives the split cylinder as the riveting power source, which has the characteristics of low noise, low energy consumption and no pollution.
2, The servo system controls the rivet clamp and the left and right movement, to realize the two sides are simultaneously riveted by the forward movement and the stop action of the roller.
3, The discharge line has a lateral removal function.
4, The busbar casing is no more than 3 meter length.
5, Feeding line has servo clamping mechanism, the most front-end is 3m roller table

Automatic Tubular Rivet Tool Busbar Machine Self Piercing

Automatic Tubular Rivet Tool Busbar Machine Self PiercingAutomatic Tubular Rivet Tool Busbar Machine Self Piercing
