Automatic Feed In Polyester Film Slitting Machine For Cutting
Automatic Feed In Polyester Film Slitting Machine For Cutting
Specifications
Model Number :
KD-FQJ-1300
Model :
KD-FQJ-1300
Max. Width of Raw Materials :
1200mm
Max. Diameter of Raw Materials :
700mm
Slitting Width :
50mm-1200mm
Scroll Diameter :
3 inches
Slitting Speed :
0-300m/min
Air Source :
0.6MPa
Equipment Dimension :
L1600mm*W1800mm*H1500mm
Description

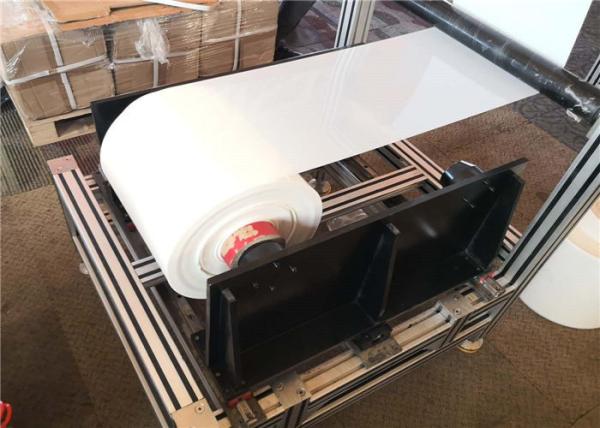

Automatic Feed In Polyester Film Slitting Machine For Cutting

Advantage

Busbar polyester film cutting machine is used to cut the Mylar film as the required width and length.

Automatic feed-in, cutting and feed-out increase the working efficiency and accuracy.

Function introduction

Polyester Film Slitting Machine is mainly used for cutting busbar polyester film. It’s composed of three parts: feeding, cutting and discharging. Length and width can be set according to requirement.

Equipment data on mylar film slitting machine

No. Parameters
Model KD-FQJ-1300

Max. Width of Raw Materials

 1200mm

Max. Diameter of Raw Materials

 700mm

Slitting Width

 50mm-1200mm
Scroll Diameter 3 inches

Slitting Speed

 0-300m/min

Length Control

Meter counter
Power 220V~415VAC 50~60Hz 3kW
Air Source 0.6MPa
Equipment Dimension L1600mm*W1800mm*H1500mm

Automatic Feed In Polyester Film Slitting Machine For Cutting
