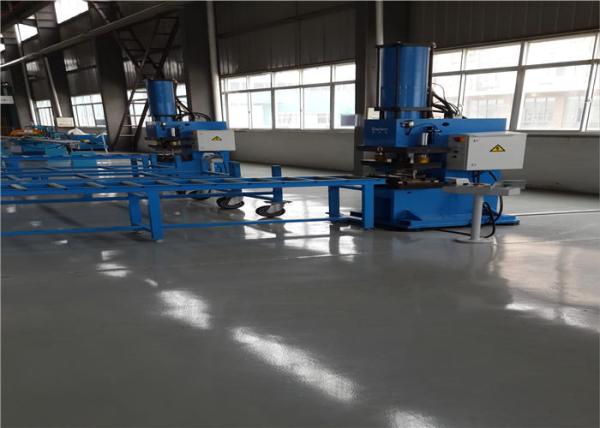

8mm 9mm High Accurate Hydraulic Copper Bar Bending Machine
8mm 9mm High Accurate Hydraulic Copper Bar Bending Machine
Specifications
Model Number :
KD-YYJ-40(50)T
Name :
Copper Busbar Bending Machine
Bending Power Type :
Hydraulic And Pneumatic Hybrid
Pressure :
40T or 50T, Max. 80T
Bending thickness :
3-10mm
Die :
Fast die change
Workplace Size :
L450mm*W340mm
Air Source :
0.6MPa
Equipment Dimension :
L680mm* W580mm* H2600mm
Power :
220~230VAC 50~60Hz 80W
Description

8mm 9mm High Accurate Hydraulic Copper Bar Bending Machine

Principle characteristics


The gas-liquid supercharger uses the high-pressure gas produced by the compressor to deliver the compressed gas to the solenoid valve through the pipeline. The solenoid valve is controlled by the foot switch to control the work and return of the cylinder to achieve the purpose of punching. The compressed air can be stored in the air storage tank and can be used at any time, so there is no energy waste of the motor idling. Using the cylinder as the working part and the solenoid valve as the control element, the structure is simpler, the failure rate is low, the safety is high, the maintenance is simple, the maintenance cost is lower, and the production efficiency is high. The use of 220V power supply to control the solenoid valve is simple and convenient.

Function introduction

Copper Bar Bending Machine is used to punch the two ends of busbar in one time to guarantee parallelism between busbar profile and conductor. This parallelism ensures the reliable connection between conductor and joint which can control joint temperature rising. Key point is that machine can adjust the rebound coefficient according to conductor’s material and width. Rebound coefficient varies by bending or different conductor width and this kind of adjustment can guarantee the parallelism.

Equipment data on digital copper bar punching machine

No. Parameters
Equipment Code KD-YYJ-40(50)T
Bending Type Pneumatic and hydraulic
Pressure 40T/50T Maximum 80T
Mold Easy To Change
Table Size 450mm*340mm
Control Type Digital Type
Pneumatic Supply 0.6MPa
Power 220~230VAC 80W
Size Of Equipment L0.68m*W0.58m*H2.6m

8mm 9mm High Accurate Hydraulic Copper Bar Bending Machine
