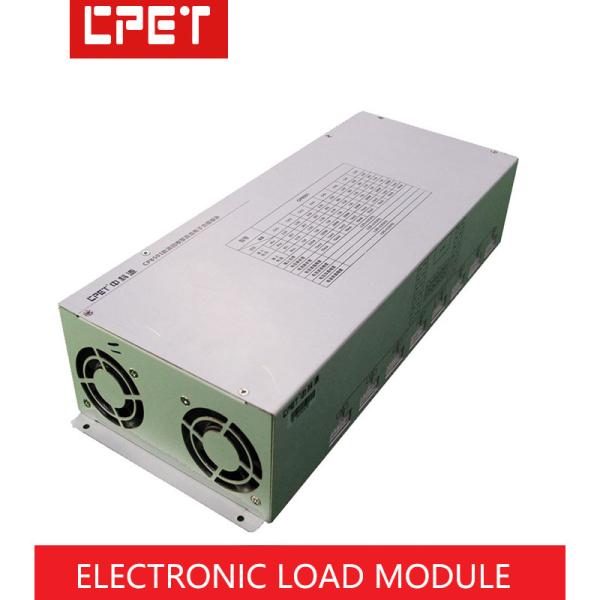

85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment
85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment
85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment
85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment
Specifications
Brand Name :
CPET
Model Number :
8401
Place of Origin :
China
MOQ :
5sets
Price :
900dollars/set
Payment Terms :
D/A,T/T
Supply Ability :
400sets/month
Delivery Time :
10 work days
Packaging Details :
Wooden case packing
Channel number :
4CH
Single channel power :
600W
Input voltage range :
85~260Vac
Description

AC Vehicle Inverter Charge And Discharge Burn-In Test Electronic Load

Scope of application

85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment

Independent burn-in trolley, Burn-in rack, Burn-in room
Discharge burn-in test ofvarious AC output equipment (compatible with sine wave and square wave)
Energy-saving and burn-in ofAC output of vehicle inverter

Outstanding functions

85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment

1. Independent load unit, supporting burn-in test of multiple groups of different output power supplies
2. Use low-voltage power supply system to improve safety
3. Over temperature protection, over current protection, over voltage protection, over power protection
4. Up to 92% conversion efficiency
5. High precision
6. The output is connected in parallel to the DC power supply, which greatly reduces the power supply current required by the DC power supply
7. Fully isolated RS485 communication
8. Rugged shell structure and excellent heat dissipation system
9. High quality and cost-effective
10. Slowly adjust the power, it is not easy to make the customer's product current overcharge protection

Performance parameters

85~260Vac 92% Conversion Efficiency RS485 Communication Electronic Load for AC Vehicle Inverter Burn-In Test Equipment

Model CP8401 CP8402 CP8403 CP8404
Input voltage range 85~260Vac 85~260Vac 90~280Vac 260~530Vac
Input current range 0.5~6Adc 0.5~10A 0.5~32A 0.5~32A
Channel number 4CH 4CH 1CH 1CH
Single channel power 600W 1600W 7KW 20KW
Votage comtrol precision ±2%+0.5%FS ±2%+0.5%FS ±2%+0.5%FS ±2%+0.5%FS
Voltage accuoacy ±1%+0.5%FS ±1%+0.5%FS ±1%+0.5%FS ±2%+0.5%FS
Current control
accuracy		 ±2%+0.5%FS ±2%+0.5%FS ±2%+0.5%FS ±2%+0.5%FS
Current readback
accuracy		 ±1%+0.5%FS ±1%+0.5%FS ±1%+0.5%FS ±1%+0.5%FS
Output voltage 10~48Vdc 400Vdc 50~750V 50~750V
Output current 0~45Adc 0~6Adc 0~20A 0~50A
Pull-load mode CP,CC CP,CC CP,CC CP,CC
Communication mode RS-485 RS-485 RS-485 RS-485
