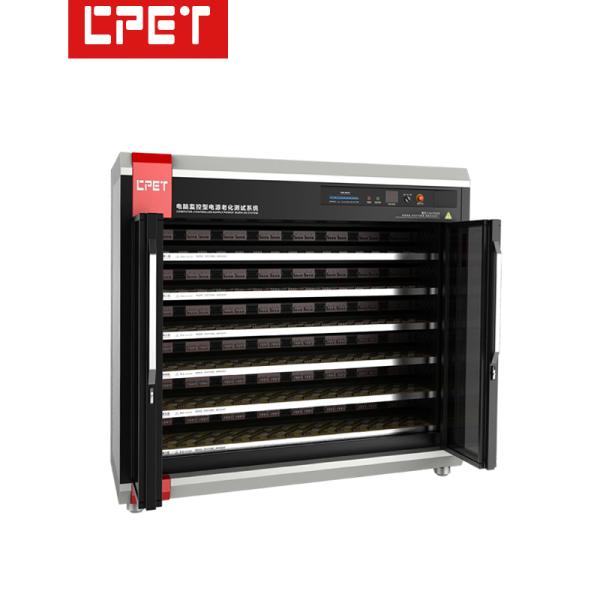

Computer Monitoring Aging Test Machine Of LED Switching Power Supply
Computer Monitoring Aging Test Machine Of LED Switching Power Supply
Computer Monitoring Aging Test Machine Of LED Switching Power Supply
Computer Monitoring Aging Test Machine Of LED Switching Power Supply
Specifications
Brand Name :
CPET
Model Number :
CP-300304
Place of Origin :
China
MOQ :
2sets
Price :
6000dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
35 work days
Packaging Details :
Wooden case packing
Certification :
CE,ROHS
Quantity of load channels :
240CH
Scope of load current :
0.05-10A/CH
Load Mode :
CC+CV Mode
Package :
Wooden box packaging
Description

Computer Monitoring Aging Test Equipment Of LED Switching Power Supply


Performance parameters
Computer Monitoring Aging Test Machine Of LED Switching Power Supply
Model CP-300304 CP-300404 CP-300504 CP-300104
Power of single channel 400W/CH 100W/CH 125W/CH 96W/CH
Quantity of load channels 240CH 192CH 192CH 96CH
Scope of load voltage 2-450V 2-450V 2-450V 8-420V
Scope of load current 0.05-10A/CH 0.05-5A/CH 0.05-10A/CH 0.05-12A/CH
Load precision ±(1%+0.1%FS) ±(1%+0.1%FS) ±(1%+0.1%FS) ±(1%+0.1%FS)
Load Model Electronic load type Electronic load type Electronic load type Energy Saving
Load Mode CC+CV Mode CC+CV Mode CC+CV Mode CC+CV+CR+CP+LED Mode
Number for plies
of product zone		 6
Height for plies of
product zone(mm)		 170
Width of products zone(mm) Series CC mode 380
Temperature control of products zone Temperature control type of products zone: normal temperature-60℃
Structure material of
trolley		 Elaborately processed and produced with cold-rolled sheet
Mode of main control Monitoring software for burn-in of computer-monitoring type power
Input mode of UUT Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT Connecting fixture boards (with various specifications) for first choice/custom design
External dimension 2050*1200*1900/custom design
