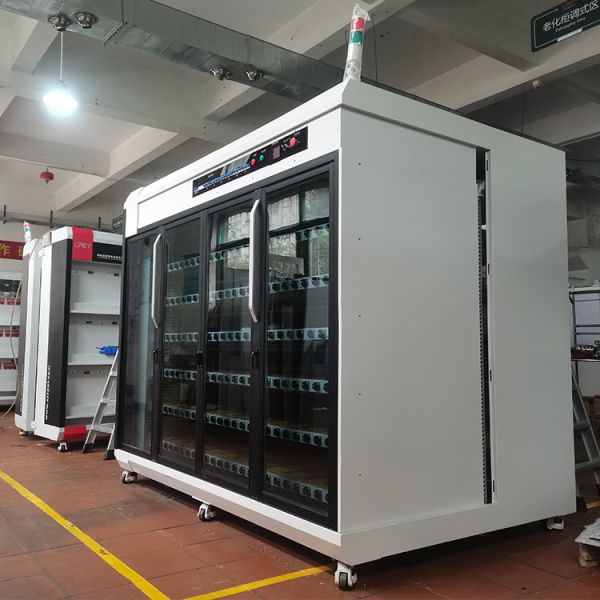

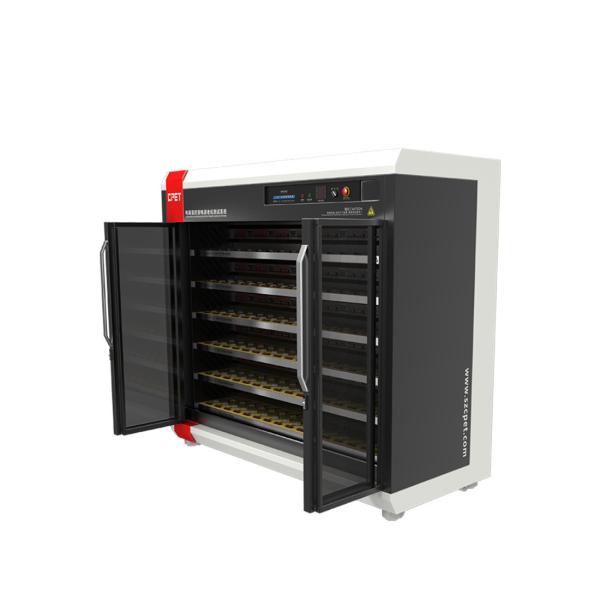

High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System
High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System
High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System
High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System
High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System
High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System
Specifications
Brand Name :
CPET
Model Number :
CP-3035
Place of Origin :
China
MOQ :
2sets
Price :
8600dollars/set
Payment Terms :
D/A
Supply Ability :
30sets/month
Delivery Time :
35 work days
Packaging Details :
Wooden case packing
Power of single channel :
2400W/CH
Scope of load voltage :
10-100V
Warranty period :
12 months free warranty
Description

High Power Adapter Aging Test System For SSN NPS Power Supplies

Scope of application

High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System

Suitable for aging of adapters, industrial power supplies, LED power supplies, server power supplies, communication power supplies, SSN, NPS power supplies, etc.

Outstanding functions

High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System

1. Be of built-in over-temperature and smoke-alarming automatic protection device
2. Be of editable switch sequence and load conversion function
3. Energy conversion efficiency of is more than 85%
4. Cooperate with monitoring software of power burn-in, for application
5. Interface of multiple DC adapter plates can meet the demands for different output interface products
6. Be of optional multiple laminate structures at products zone and meet the requirements for more convenient operation of different products
7. Be of AC parameters measurement module and testing power input characteristics (optional)
8. Be of automatic voltage switching function (optional)
9. Be of temperature monitoring function at products zone (optional)
10. E-load model can be select,energy saving or Non-energy saving

Performance parameters

High Power 2400W/CH Burn In Chamber with 10-100V Load Voltage and 6 Plies Product Zone for Aging Test System

Model CP-3033 CP-3035 CP-3036
Power of single channel 400W/CH 2400W/CH 2000W/CH
Quantity of load channels 96CH 36CH 12CH
Scope of load voltage 3-60V 10-100V 3-600V
Scope of load current 0.5-40A/CH 0.5-80A/CH 480A/CH
Load precision ±(2%+0.5%FS)
Load Model Energy saving load module
Load Mode CC+CV+CR Mode
Number for plies of product zone 6
Height for plies of product zone(mm) 170
Width of products zone(mm) 340
Temperature control of products zone Temperature control tyep of products zone: normal temperature-60°C
Structure material of trolley Elaborately processed and produced with cold-rolled sheet
Mode of main control Monitoring software for burn-in of computermonitoring type power
Input mode of UUT Multi-purpose socket/speaker wire clip/custom design
Interface mode of UUT Connecting fixture boards(with various specifications)for first choice/custom design
External dimension 2050*1000*1900/custom design
