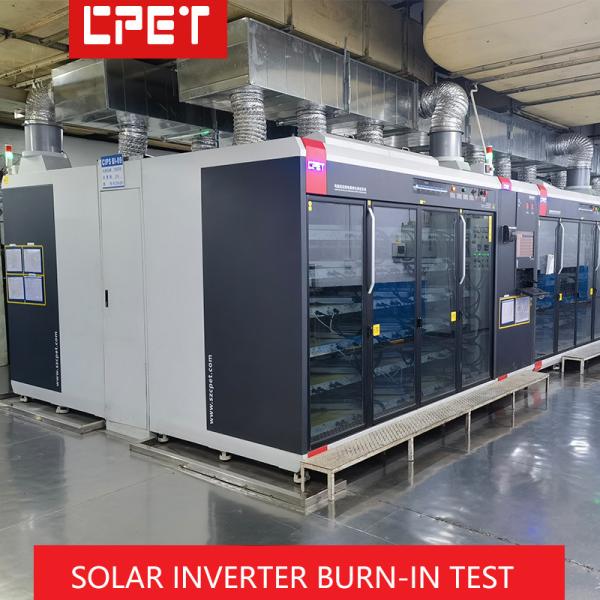

100kW Burn In Test Equipment Support Customization For Solar Inverter PV Inverter
100kW Burn In Test Equipment Support Customization For Solar Inverter PV Inverter
100kW Burn In Test Equipment Support Customization For Solar Inverter PV Inverter
100kW Burn In Test Equipment Support Customization For Solar Inverter PV Inverter
Specifications
Brand Name :
CPET
Model Number :
CP-NBQ52
Place of Origin :
China
MOQ :
2sets
Price :
8800dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
35 work days
Packaging Details :
Wooden case packing
Total input current :
200A*2
Guarantee period :
12 months
Input power :
100kW
Description

Burn-In Test Cabinet Support Customization For Solar Inverter PV Inverter

Performance parameters
100kW Burn In Test Equipment Support Customization For Solar Inverter PV Inverter
System System structure 1 control cabinet + 2 transformer cabinets
Overall size 3500*1200*1900mm
Total floor area 3500*1500mm(Including operation area)
Total input voltage Three-phase five-wire system 220Vac (rated)
Total input current 200A*2
Total input power 100kW*2
Application ambient temperature 0-40℃
Application environment humidity 0-95%
Fire protection requirements Materials meet UL 94V0 rating
Environmental requirements Materials comply with Rohs, WEEE requirements
Safety requirements Comply with IEC62368 international standard design requirements
Burn-in cabinet Units/Cabinet 2 bits/cabinet
Input winding current 200A
AC Connector Type Bolt bronze
Signal Connector Type PA45 (L /N/PE)
Input power 100kW
Feedback power 500kW
Volume size 1200*1200*1900mm
Product area air duct direction Downwind, upwind
Monitoring
software		 Display running information

Input voltage, current, power, output voltage
(DC source module communication or product communication)
Show status information

Not Connected / Vacant / Passed / Under Voltage / Under Current / Over Voltage / Over Current /No Output / Protection
Display accuracy ±(1%+0.2%FS)
Bad way of reporting Audible alarm
Report format CSV format
Statistics Yield/CPK/Time Distribution
MES docking Support
