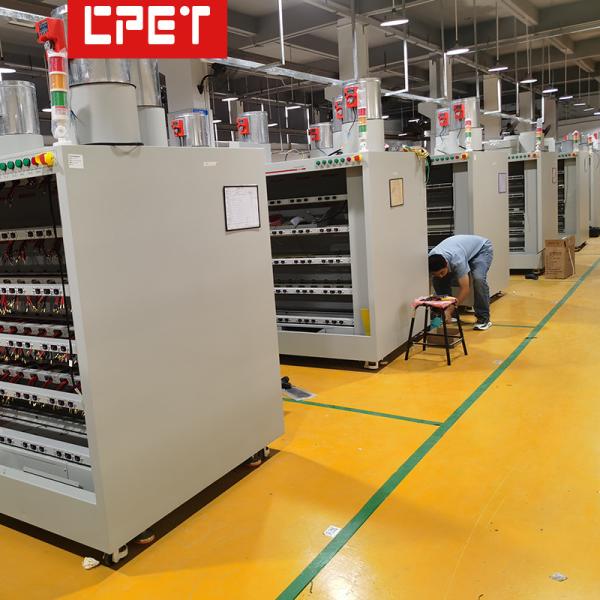

Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter
Specifications
Brand Name :
CPET
Model Number :
CP-301002
Place of Origin :
China
MOQ :
2sets
Price :
7300dollars/set
Payment Terms :
L/C
Supply Ability :
30sets/month
Delivery Time :
30 work days
Packaging Details :
Wooden case packing
Certification :
CE,ROHS
Power of single channel :
65W/CH
Weight :
400kg
Guarantee period :
12 months
External dimension :
2050*880*1900/custom design
Description

Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter


Application Scope
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter

Power sources such as chargers, power adapters, wireless charging, power tool charger,

sweeper charger,fast charger,etc.


excellent function
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter

1. Set various load parameters and real-time monitor for parameters such as voltage,
current and power by computer software

4. Be of built-in over-temperature and smoke-alarming automatic protection device

5. Be of editable switch sequence and load conversion function

6. Cooperate with monitoring software of power burn-in, for application

7. Interface of multiple DC adapter plates can meet the demands for different output
interface products

8. Be of optional multiple laminate structures at products zone and meet the
requirements for more convenient operation of
different products

9. Be of AC parameters measurement module and testing power input characteristics
(optional)

Performance parameters
Quick Charge Supply Aging Test Cabinet Equipment For High Power Adapter


ModelCP-300602CP-301002
Power of single channel200W/CH65W/CH
Quantity of
load channels		192CH192CH
Scope of load voltage2-100V2-100V
Scope of load current0.2-10A/CH0.2-10A/CH
Load precision±(1%+0.1%FS)±(1%+0.1%FS)
Load ModelEnergy SavingEnergy Saving
Load ModeCC+CV ModeCC+CV Mode
Number for plies of
product zone		Single sideSingle side
Height for plies of
product zone(mm)		170
Width of
products zone(mm)		Series CC mode 340
Temperature control of
products zone		Temperature control type of products zone: normal temperature-60℃
Structure material of
trolley		Elaborately processed and produced with cold-rolled sheet
Mode of main controlMonitoring software for burn-in of computer-monitoring type power
Input mode of UUTMulti-purpose socket/speaker wire clip/custom design
Interface mode of UUTConnecting fixture boards (with various specifications) for first choice/custom design
Customizable fast charge
function		QC, PO, FCP, SCP, PPS, etc.
External dimension2050*880*1900/custom design
