260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig
Specifications
Brand Name :
Hengwang
Model Number :
HQZ-260L
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD2500-5000/set
Payment Terms :
L/C ，D/P , T/T
Supply Ability :
Negotiable
Delivery Time :
5-8 workdays
Packaging Details :
Wooden box, container, etc
Model :
HQZ-260L
Drill Mast (m) :
3
Drilling diameter (mm) :
130-305
Drilling depth (m) :
260
Walking Speed (km/h) :
2.5
Main motor power :
76kw
Working pressure (mpa) :
1.7-3.0
Air consumption (m³/min) :
17-31
Drill pipe diameter (mm) :
76/89
Drill pipe length (m) :
1.5/2.0/3.0
Lifting force (T) :
17
Description

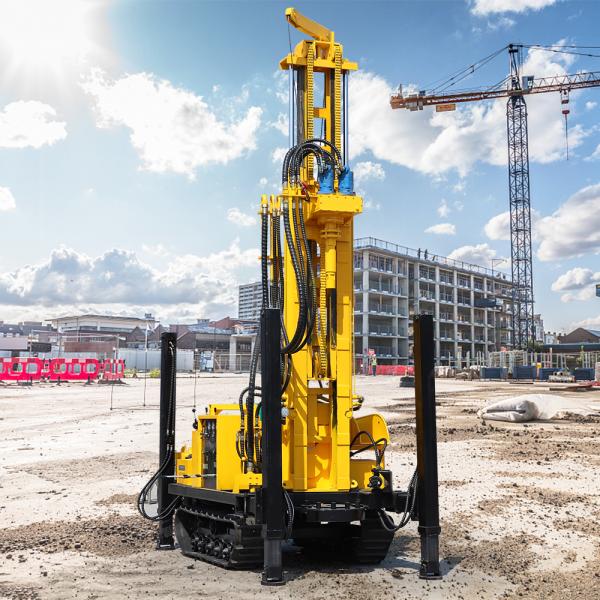

260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig

260m Drilling Depth Crawler Pneumatic Borehole Core Water Well drilling machine

Drilling depth: 260m


Drilling diameter: 130-305mm


Engine Power: 76/77.3Kw

Product Description:

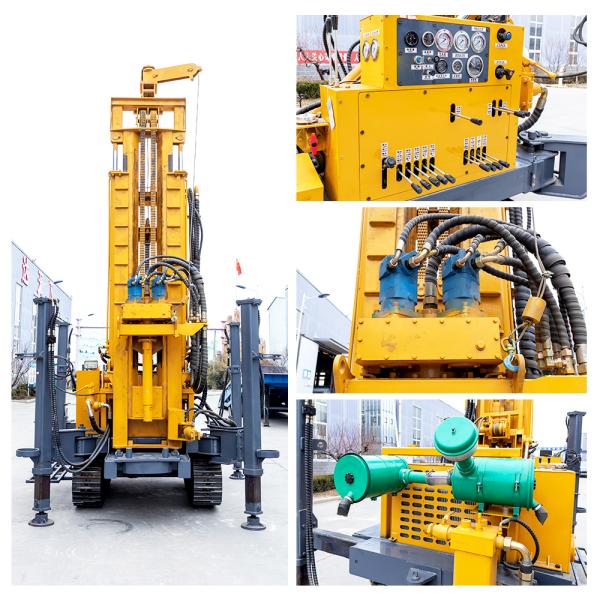

Hengwang Pneumatic drilling rig is especially suitable for water intake in mountainous and rocky strata.Pneumatic water well drilling machine need use together with air compressor , it can add mud pump and foam pump .It need use different drilling tools like:drilling rod ,hammer,rock drill bits ,etc.The rig with hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder push, the multi cylinder engine of famous factory provides power for the hydraulic system, two stage air filter, air compressor air intake design, prolong the service life of diesel engine. Special pump set design is convenient for maintenance and reduce the cost of maintenance. Centralized control of the hydraulic control table, convenient operation.

260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig

Product parameters:

Model HQZ260L HQZ260L
Drill Mast (m) 3 6
Drilling diameter (mm) 130-305 130-305
Drilling depth (m) 260 260
Walking Speed (km/h) 2.5 2.5
Main motor power 76kw 76kw
Working pressure (mpa) 1.7-3.0 1.7-3.0
Air consumption (m³/min) 17-31 17-31
Drill pipe diameter (mm) 76/89 76/89
Drill pipe length (m) 1.5/2.0/3.0 3.0/6.0
Lifting force (T) 17 17

Product Details:

260m Depth Crawler Water Well Drilling Rig Machine Pneumatic Borehole Drilling Rig

Main feature:

-Crawler walking is more suitable for muddy field movement.

-Pneumatic drilling rig, with air compressor, the efficiency is equivalent to 10~15 times of ordinary drilling rig.

-The drilling on the rock is mainly based on the down-the-hole hammer drilling process. The down-the-hole hammer rock drilling operation efficiency is high, and the drilling cost per meter is lower.
