Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader
Specifications
Brand Name :
BULLDOG,NICEPARTS
Model Number :
KOMATSUKOMATSU Wb97 WB93S backhoe loader
CertifiCATEion :
ISO:9001
Place of Origin :
Guangzhou, China
MOQ :
1set
Price :
Consultation by letter
Payment Terms :
T/T, Western Union, MoneyGram,Paypal,Alipay
Supply Ability :
150set
Delivery Time :
3-10 Days After Payment received
Packaging Details :
Carton packaging
Type :
KOMATSU KOMATSU Wb97 WB93S backhoe loader ARM LIFTING Seal Kits
Material :
PU+NBR+PTFE
Color :
Black+Blue+yellow
For :
KOMATSU hydraulic system
Quality :
High-Quality
Rod :
50mm
Piston :
90mm
Condition :
100%new
Stock :
In stock
Model :
Komatsu backhoe loader
Description

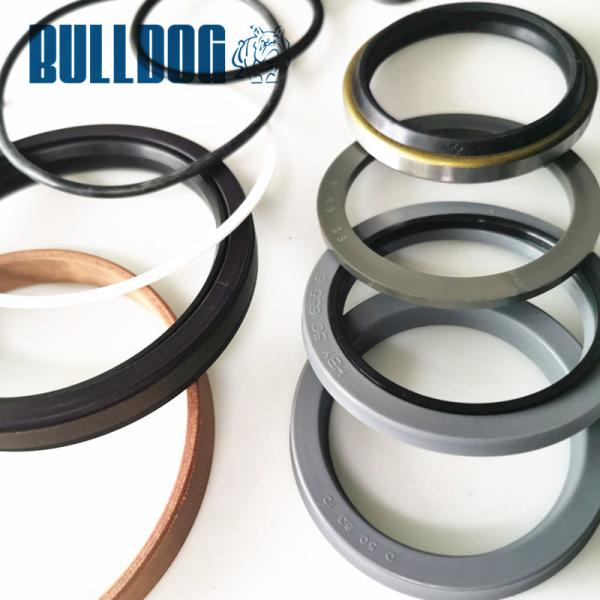

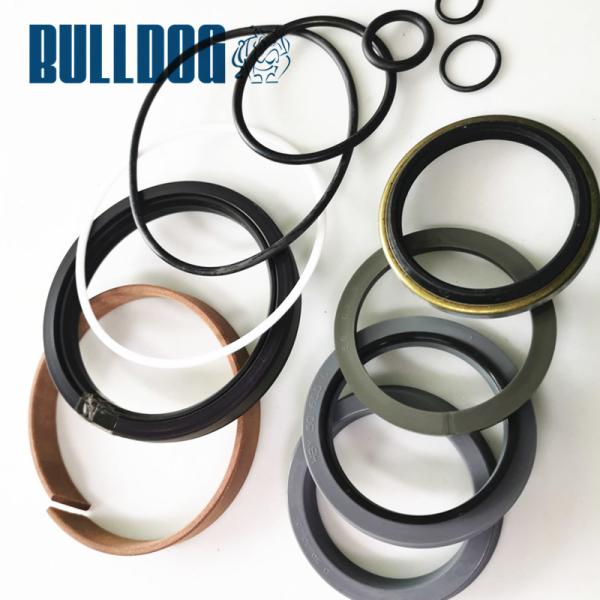

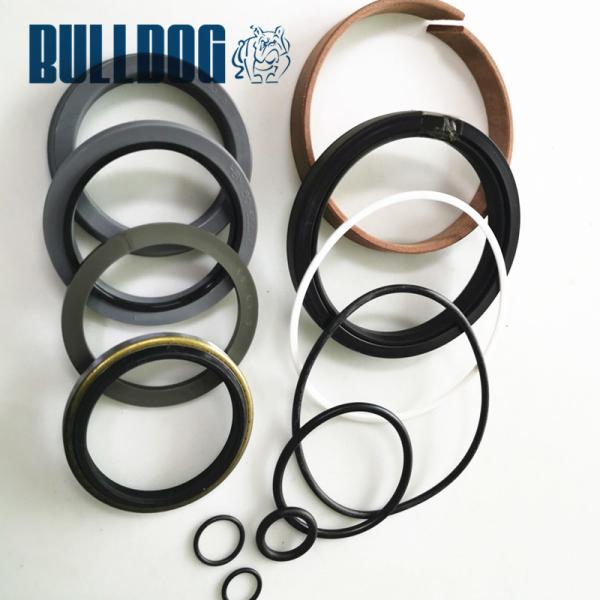

Model:KOMATSU Wb97 WB93S backhoe loader ARM LIFTING CYLINDER SERVICE Seal Kits
Part number:707-99-25660
Cylinder number:707-00-0Y892,707-00-0Y891
Rod:50MM
Piston:90MM
For:KOMATSU Wb97 WB93S backhoe loader hydraulic cylinder seal kit
Material:PU+NBR+PTFE
CertifiCATEEion:IOS 9001
Packaging Details: bag or box +carton
Delivery Time:2-5days upon payments confirmed
Brand:Bulldog
Payment Terms:T/T, Western Union, MoneyGram, Paypal, Alipay
Delivery method:DHL,FedEx,UPS,etc.
Supply Ability:50
MOQ:1set

Parts list

INDEX
NO.		 PART NO. DESCRIPTION Q'TY
　 707-00-0Y891 CYLINDER, ASSY. 2
1 07144-10606 BUSHING 2
2 707-58-50H50 PISTON ROD 1
3 07179-12062 RING, SNAP 1
4 707-29-90650 CYLINDER HEAD 1
5 707-52-90250 BUSHING 1
6 707-81-50360 THRUST WASHER 1
7 707-36-90260 PISTON 1
8 707-67-36010 NUT 1
9 721-11-90671 CYLINDER 1
10 02782-10516 ELBOW 1
　 707-99-25660 KIT, GASKET 1
11 176-63-92240 GASKET 1
12 07000-12090 O-RING 1
13 707-51-50030 GASKET 1
14 707-51-50640 GASKET 1
15 07000-12085 O-RING 1
16 07146-02086 RING, WEAR 1
17 07000-13050 O-RING 1
18 707-44-90180 GASKET 1
19 07156-00912 PACKING ROD 1
20 02896-11012 O-RING 1
21 02896-11015 O-RING 1
22 07002-12034 O-RING 1
23 21D-09-89140 GREASE NIPPLE 4

Parts exploded view

Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader

More service models

WB140-2
B/H ARM 395002005 60 mm 110 mm KOM-878000490
B/H BOOM 395001007 60 mm 120 mm KOM-878000489
　 　 　 　
395001009 60 mm 120 mm KOM-878000489
B/H BOOM SWING LH 395005010 50 mm 115 mm KOM-878000542
　 　 　 　
395005018 50 mm 115 mm KOM-878000542
707-02-11510 50 mm 115 mm KOM-707-98-33500
707-02-11510 50 mm 　 KOM-07177-05030
B/H BOOM SWING RH 395005009 50 mm 115 mm KOM-878000542
　 　 　 　
395005017 50 mm 115 mm KOM-878000542
707-02-11520 50 mm 115 mm KOM-707-98-33500
707-02-11520 50 mm 　 KOM-07177-05030
B/H BUCKET 395003003 60 mm 95 mm KOM-878000492
　 　 　 　
395003005 60 mm 95 mm KOM-878000492
B/H OUTRIGGER LH 395011005 55 mm 110 mm KOM-878000494
　 　 　 　
395011008 55 mm 110 mm KOM-878000494
B/H OUTRIGGER RH 395011006 55 mm 110 mm KOM-878000494
　 　 　 　
395011007 55 mm 110 mm KOM-878000494
B/H TELESCOPIC ARM 395009001 40 mm 70 mm KOM-878000388
　 　 　 　
395009006 40 mm 70 mm KOM-878000388
L/S BOOM 395012014 50 mm 85 mm KOM-878000486
707-00-80C10 50 mm 80 mm KOM-707-98-25090
707-00-80C10 50 mm 　 KOM-07177-05030
L/S BUCKET 395013017 50 mm 80 mm KOM-878000487
　 　 　 　
707-00-85080 50 mm 85 mm KOM-707-98-25830
707-00-85080 50 mm 　 KOM-07177-05030
L/S BUCKET LH 395013017 50 mm 80 mm KOM-878000487
L/S BUCKET MP 312230674 45 mm 80 mm KOM-827020113
L/S BUCKET QC 200060282 18 mm 30 mm KOM-42N-879-1980
L/S BUCKET RH 395013019 50 mm 80 mm KOM-878000487
OUTRIGGER LH 721-00-11540 55 mm 110 mm KOM-707-98-34460
721-00-11540 55 mm 　 KOM-07177-05530
OUTRIGGER RH 721-00-11550 55 mm 110 mm KOM-707-98-34460
721-00-11550 55 mm 　 KOM-07177-05530

Company warehouse

Arm Hydraulic Lift Cylinder Seal Kits 707-99-25660 Fit Wb97 WB93S Backhoe Loader

FAQ

1. Q: Are you a manufacturer or trader?
A: We are both in manufacturer and trader, have more than 10 years
of industry experience.

2. Q: Can i make a small order first?
A: Yes, of course.

3. Q: If we let the product make a change of the size, can you offer the
seal kit for this size?
A: Yes, just send the machine model, part number and the change
of size to us, we can make it.

4. Q: Have you support the OEM or not?

A: Sure, we support the OEM,BULLDOG or as required.

5. Q: How can i pay the goods?

A: For the payment, we support the PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, etc

6. Q: How to ship the products?

A: For the shipment, we support the DHL Fedex EMS UPS or by Air/ Sea., if you have the agent in china, we can contact your agent according to your request.

7. Q: What’s the delivery time?

A: The goods can be shipped at 2-5 working days after receiving payment.
