75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable
Specifications
Brand Name :
OEM Produce
Model Number :
QR540JCASS
Certification :
CE. ROHS.
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
FOB Shanghai Price: 630.0 USD/1000m
Payment Terms :
TT. LC
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit

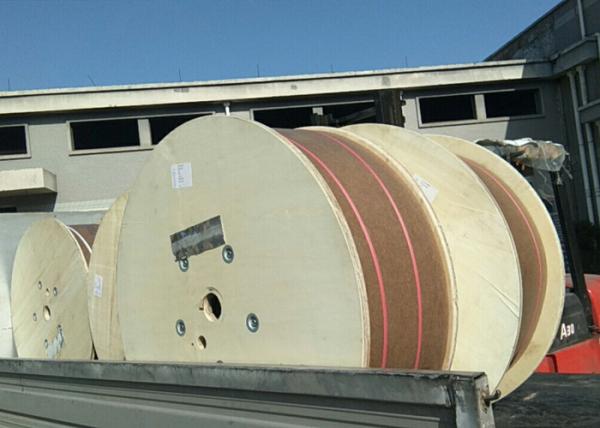

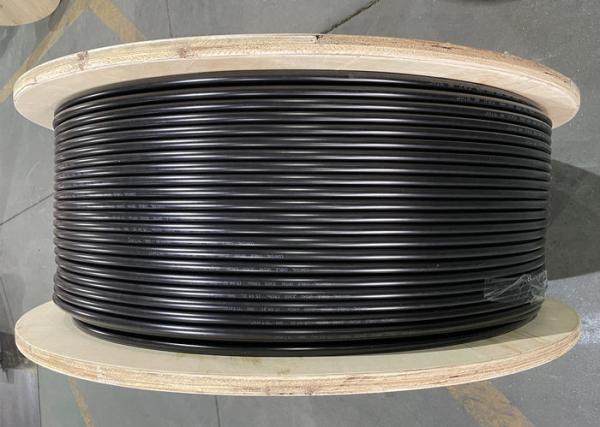

Packaging Details :
500M/ 1000M/ Wooden Drum
Type :
75Ohm Coaxial Cable
Spec :
AL Tape RF Trunk Cable
Connector :
BC/ CCA
Jacket :
PE Outdoor
Description

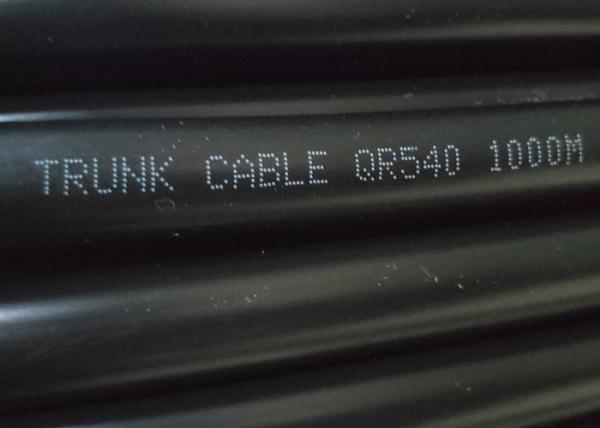

75 Ohm Coax Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk

Coaxial cable QR540 Trunk AL Tube Coaxial

Construction
Inner Conductor Material CCA
Diameter(mm) 3.15
Dielectric Material Foam PE
Diameter(mm) 13.05
Shield Material Solid AL Tube
Diameter(mm) 13.72
Outer Jacket Material PE
Diameter(mm) 15.49

Electrical Characteristics

Impedance (Ω) 75±3
Capacitance (pF/m) 52±2
Velocity of Propagation(﹪) 87.0
Return Loss
5-1000MHz(db) ≥22
Screening Effectiveness
5-1000MHz ≥22

Attenuation(@20℃)

Frequency (MHZ) Max Attenuation (dB/100m)
5 0.64
55 1.54
83 1.90
211 3.12
250 3.38
300 3.71
350 4.04
400 4.33
500 4.89
750 6.07
865 6.56
1000 7.12

75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable75 Ohm Coaxial Cable QR540 JCASS AL Tube with Jelly CATV System RF Trunk Cable

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
