RG58 2C Siamese Solid PE Combo Coax Bulk CCTV Cable SYV-50-3
RG58 2C Siamese Solid PE Combo Coax Bulk CCTV Cable SYV-50-3
RG58 2C Siamese Solid PE Combo Coax Bulk CCTV Cable SYV-50-3
RG58 2C Siamese Solid PE Combo Coax Bulk CCTV Cable SYV-50-3
Specifications
Brand Name :
OEM Produce
Model Number :
UTP Cat6+RG58
Certification :
CPR. CE. ROHS2.0
Place of Origin :
Hangzhou, China
MOQ :
10km
Price :
negotiatable
Payment Terms :
T/T, L/C
Supply Ability :
5000km/ Month
Delivery Time :
20days after deposit
Packaging Details :
100M. 200M. 300M. 1000FT. 500M. Reel
Power Part :
18AWG(7*0.37MM CCA)
Coax Part :
RG58U 0.58CU 90%Braid 4.8PVC
Cable Shape :
8 Figure Shot Gun
Application :
CCTV Camera, Network and Communication
Jacket :
PVC new material
Packing :
305m wooden drum or customized
Connector :
DC and BNC
Description

RG58+2C Coax Combo Bulk CCTV Cable For Video Surveillance SYV-50-3 Solid PE Coaxial cable

we are professiona coaxial, lan cable and Fiber Optical Cable manufacturer in China. Welcom to let us know your cables need.

RG58Siamese Cable:

Spec: 0.58CU+2.6FPE+AL Foil+128*TC Braid+AL Foil+4.8PVC White+2Cores (7*0.37 CCA+1.8PE)

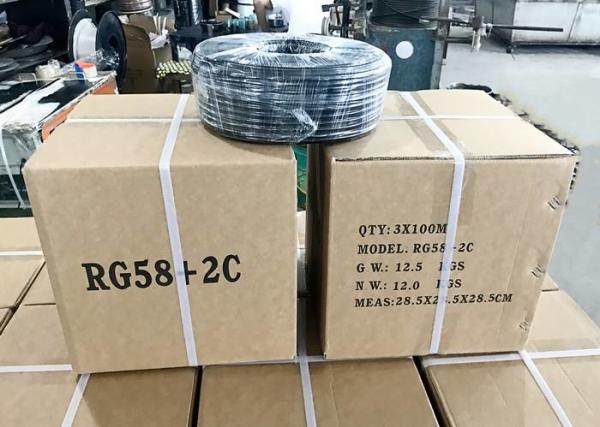

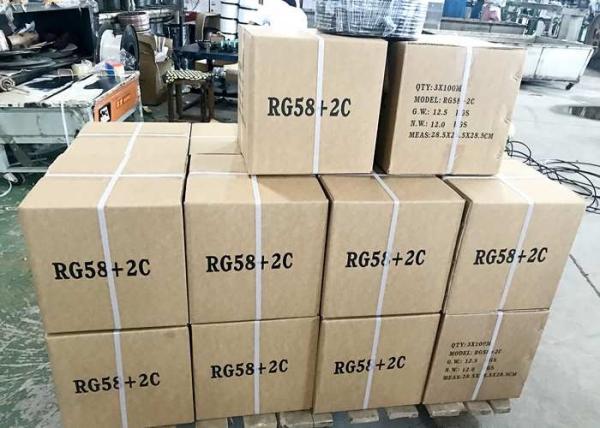

Packing: 100m/reel or 305m/reel

Construction Detail

Power Part Construction Material Diameter(mm)
Inner Conductor BC/CCA 7*0.37/ 20*0.2
Insulation PE 1.8
Outer Jacket PVC 4.2
Coax Part RG58 Inner Conductor BC 0.58/ 19*0.19
Insulation Foam PE 2.6
First Shield AL Foil 14#
Scond Shield TC Wire 90%
Third Shield AL Foil 15#
Sheath PVC 4.8

Electrical Characteristics

Temperature Rating -20℃ to 60℃
Dielectric Breakdown 2500V
DC Resistance/Unbalance

28.6Ω/1000’Max/5% Max

RG58 2C Siamese Solid PE Combo Coax Bulk CCTV Cable SYV-50-3

If you have technical support from an engineer, please let us know the type of cables you need, the inner conductor, the braiding coverage, the jakcet material and color, the packing length and design, and the application. We will help you choose the most suitable cable.

If you are not sure about certain specifications of the electric cables, please let us know your inquiry and we are very happy to give you professional technical advice and support services. Our company offer specific cables and wires consulting, design, OEM and manufacturing based on the customer's requirements and application scenarios to help customers create more business opportunities.

Mobile/ Whatsapp: +86 13616872763 | QQ/ Wechat: 398023701 | Skype: thomas-aite | Email: thomas@at-cable.com
