rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
Specifications
Brand Name :
TW-TECHWAY
Model Number :
SC200-200
Certification :
CE
Place of Origin :
China
MOQ :
1Unit
Price :
18,800USD~80,000 USD per Unit
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
60 Days after advance payment
Packaging Details :
Nude in Container, 40'HQ
Steel Pipe :
Q345B High Strength Steel
Rated Load :
2000kg
Rated Speed :
0-40m/min
Max. Installation Hight :
300m
Max. Passenger No. :
30
Treatment :
Hot Dip Galvanization+Painting
Wall Panel :
Punched Aluminium Panel
Description

SC200 -200 Double cages with Rack and Pinion Building Hoist/ 2000kgs Load with Inverter and hot galvanized masts hoist

Features:


1. This construction hoist is designed with a loading capacity of 2000 kilograms, which is well-suited for meeting the daily lifting needs of construction sites.
2. The hoist adopts an inverter control type, with a lifting speed ranging from 0 to 46 meters per minute, ensuring stable and flexible speed regulation during operation.
3. All critical components, including mast sections, tie-in parts, the lifting cage, foundation frame, and all spare parts, are fully treated with hot dip galvanization for superior corrosion resistance.
4. A full set of safety devices is equipped, including a limit switch. The limit body is more robust, the contact has a clear breaking point, and the limit head is collision-resistant. This design enhances safety significantly, eliminating potential hazards caused by failure or damage of the upper and lower limit devices.
5. The recommended internal dimensions of the lifting cage (Length × Width × Height) in meters are: 2.5×1.3×2.5, 3.0×1.3×2.5, 3.2×1.5×2.5, 3.6×1.5×2.5, 3.8×1.5×2.5, 4.0×1.5×2.5, and 4.2×1.5×2.5. Additionally, the cage size can be customized to fit the specific requirements of customers and special construction projects.
6. The color of the lifting cage can be customized according to customers' preferences. Our standard color options are yellow, red, and blue, providing convenient choices for different needs.
7. The hoist features low maintenance costs, designed to withstand 2,000,000 movement cycles, resulting in a low failure rate and reduced operational costs for users.

Specifications:

Model SC200-200
Loading capacity 2000KG
Rated speed 0-46m/min
Motor & Gear Box 2x2x11kw
Inverter 2x37kw
Mast section size 650*650*1508mm
Cage size 3.2x1.5x2.1m
Safety device SAJ40-1.2
Hot galvanize parts Mast section/trolley
Counter weight no

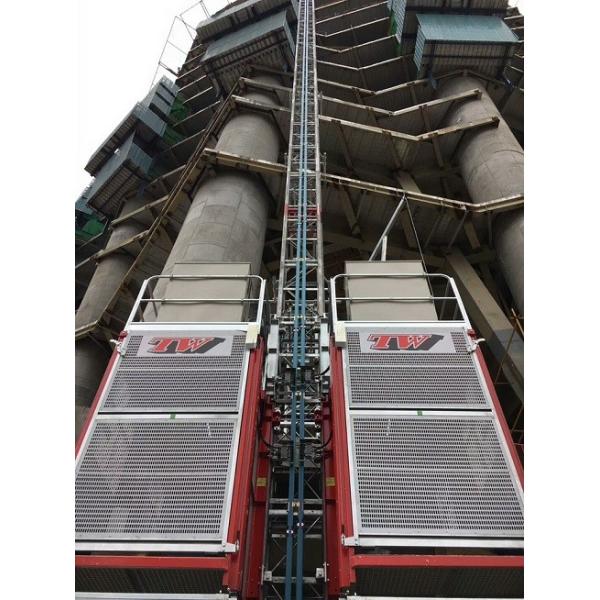

Case Show:

rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist

rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist

rack and pinion construction hoist,VFD Control, hot dip galvanized 2000kg Construction building hoist , 0-46m/Min Passenger Material Hoist
