Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
Specifications
Wall Panel :
Punched Aluminium Panel
Rated Load :
1000kg/cage
Max. Passenger No. :
30
Treatment :
Hot Dip Galvanization+Painting
Model Number :
SCN100G
Steel Pipe :
Q345B High Strength Steel
Brand Name :
TW-TECHWAY
Certification :
CE
Place of Origin :
China
MOQ :
1Unit
Price :
18,800USD~80,000 USD per Unit
Payment Terms :
L/C, T/T
Supply Ability :
500 Units Per Month
Delivery Time :
60 Days after advance payment
Packaging Details :
Nude in Container, 40'HQ
Rated Speed :
0-46 m/min
Max. Installation Hight :
300m
Description

SC100G inverse type installing hoist/Rack and Pinion hoist / intelligent operation elevator for tunnel

Technical features:

The reverse type building hoist consists of two major parts: mast section transmission system on left side of the mast and SC100G building hoist on the right side of the mast.

The transmission system is fixed on the steel structures, and it takes the overall weights on the mast section and holds the mast sections still in the air. The building hoist system works as standard hoist for material and passenger transportation. The building hoist system will stop work when adding height to the mast sections and no entrance is allowed to the building hoist. After adding new masts, the transmission system will send the mast sections downwards vertically.

1. Building Hoist system adopts TW brand helical bevel gearbox, which is of Italian SICOMA technology, with reliable performance and high transmission efficiency.
2. Transmission system adopts SEW motor & gearbox as well as Schneider inverter, with high brake torque and stable start/stop.
3. The building hoist system transports workers and materials during the digging process of tunnels.
4. Through the transmission system, mast sections can be extended downwards from the top.
5. The reverse type building hoist is suitable for the construction of subway, tunnels and bridge culvert, etc.

6. Mast sections are added on top, and the transmission system sends the mast sections from top to bottom.

Specifications:

Model SC100G
Loading capacity 1000KG/CAGE
Rated speed 0-46 m/min
Motor & Gear Box 2X11kw
Inverter 37kw
Mast section size 650*650*1508mm
Cage size 2.5x1.3x2.5m
Safety device SAJ40-1.2
Hot galvanize parts Mast section/trolley
Counterweight no

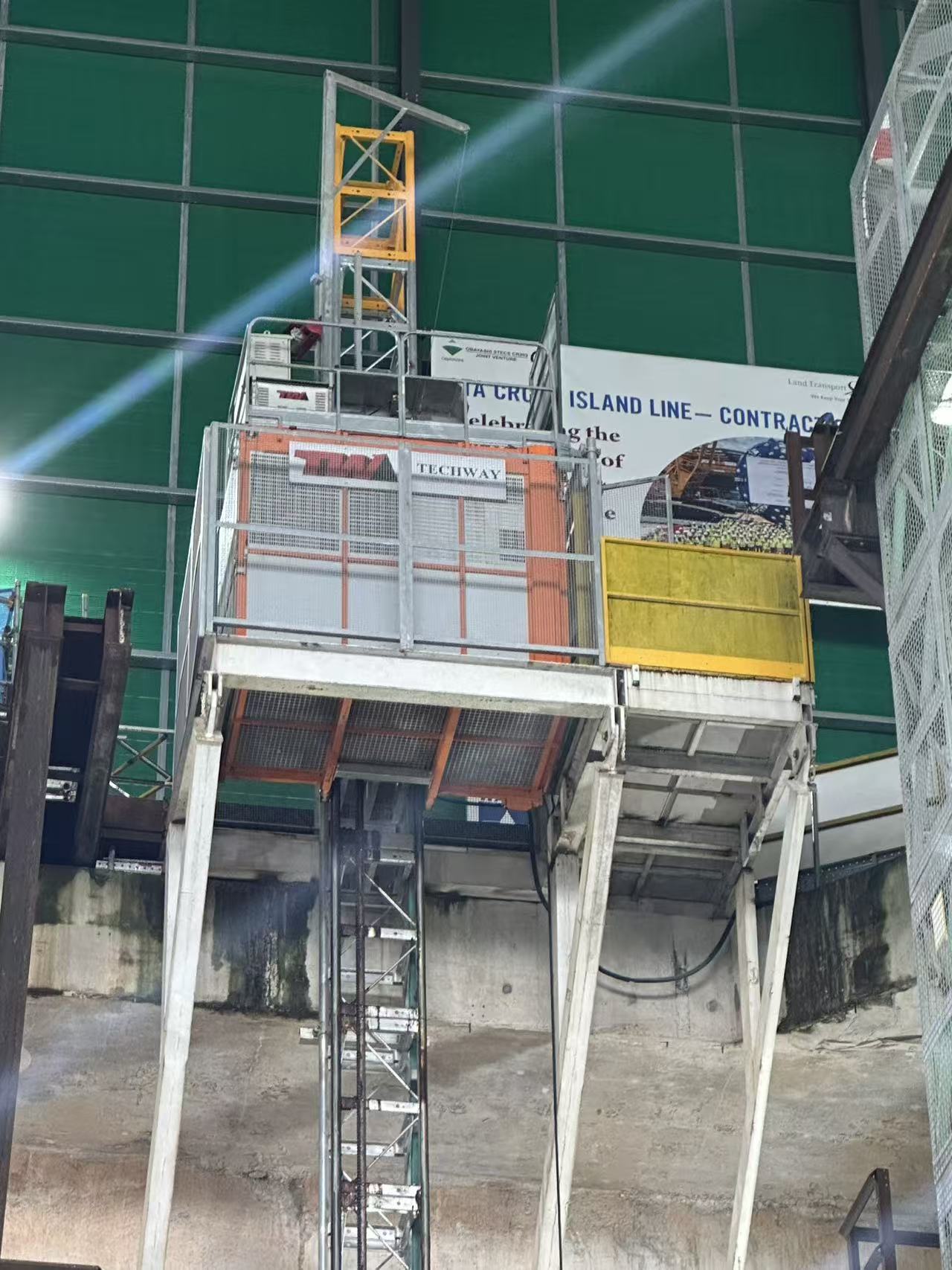

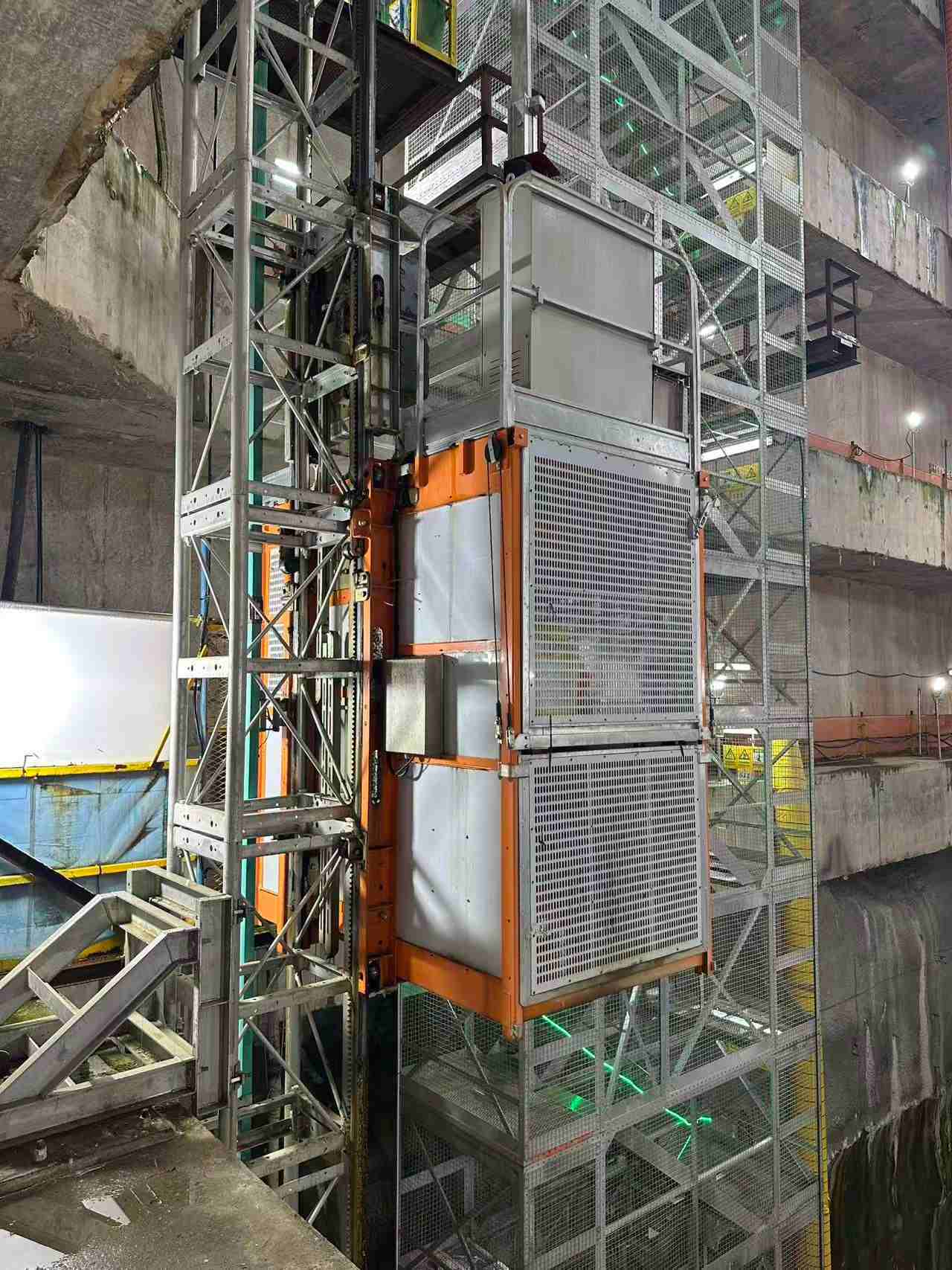

Case Show:

Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel

Reverse type building hoist Q345B Steel 1000kg Material Rack And Pinion Hoist Lift For Tunnel
