Specifications
Brand Name :
TECHWAY
Model Number :
HGY-13
Certification :
CE
Place of Origin :
China
MOQ :
1Unit
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100 Units per month
Delivery Time :
30 Days after advance payment
Packaging Details :
Nude in Container, 1x40'HQ
Description

HGY-13 Mobile Placing Boom for Concrete Distribution /Mini placing boom/13 M concrete placing boom/Manual placing boom

Features:

1. The placing boom has a Z-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement

areas.

2. The boom assembly' s luffing, folding/unfolding and swinging are carried out hydraulically with buttons. The hydraulic and electrical .system feature overload protectors, flow controls, alarms, phase sequence protectors and so on, which ensures the placing boom to have reliable performance, easy and smooth operation, and high safety.

3. Featuring compact structure and lightweight, the placing boom can be completely lifted and transferred to any suitable places for concrete placement, such as floors, platforms, simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it

can be lifted off the placement sites when it is not needed, which leads to no disturbance to other jobs and easy maintenance.

4. The HGY13 is well fit for the construction of different floors and for complicated jobsites without being influenced by the size and shape of floors.

Specifications:

Model HGY13
Horizontal reach 13 M
Hydraulic output 4 KW
Hydraulic pressure 20 Mpa
Rotation 360 °
Pipe diameter 125mm
Weight (no counterweight) 2700 kgs
Counter weight 4300 kgs

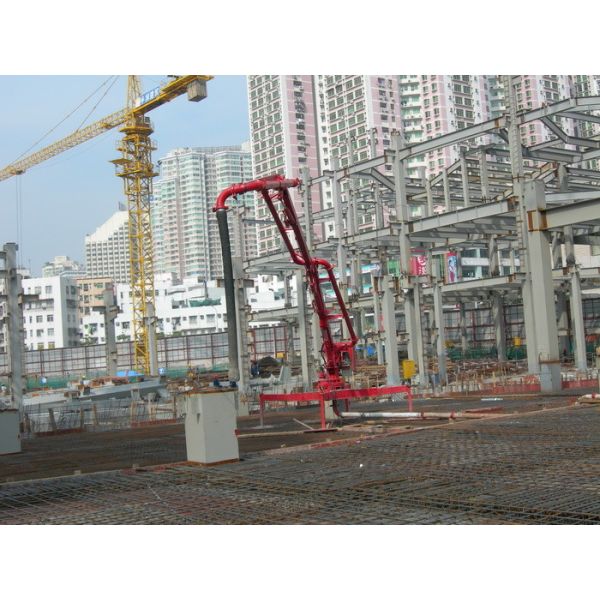

Case Show:

Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree SlewedManual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree SlewedManual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree SlewedManual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed
