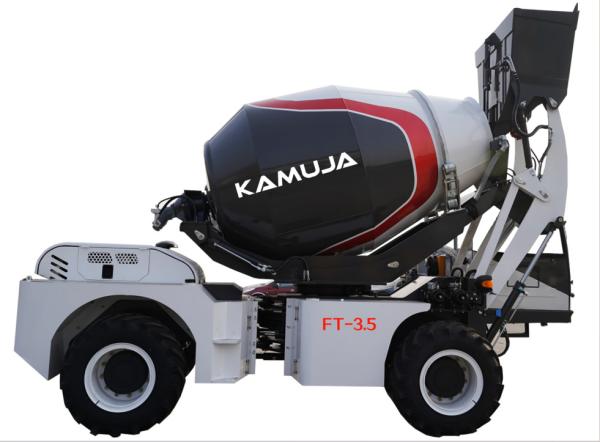

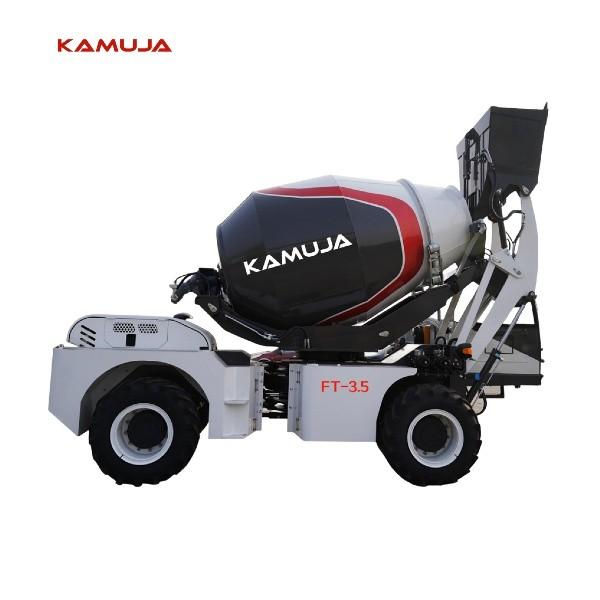

5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer
Specifications
Brand Name :
KAMUJA
Model Number :
FT-3.5
Certification :
CNAS, IAF
Place of Origin :
CHINA
MOQ :
1 UNIT
Price :
23K-24K
Payment Terms :
T/T
Supply Ability :
No limited
Delivery Time :
15 DAYS
Packaging Details :
1 UNITS/ 40 HQ
Capacity :
3.5 cubic meters/5500L
Chassis Type :
Truck mounted
Control System :
Fully automatic
Discharge Method :
Hydraulic, electrical
Power Source :
Diesel
Warranty :
1 year
Water Supply System :
Automatic
Cool System :
Water-cooling,dry air filter
Description

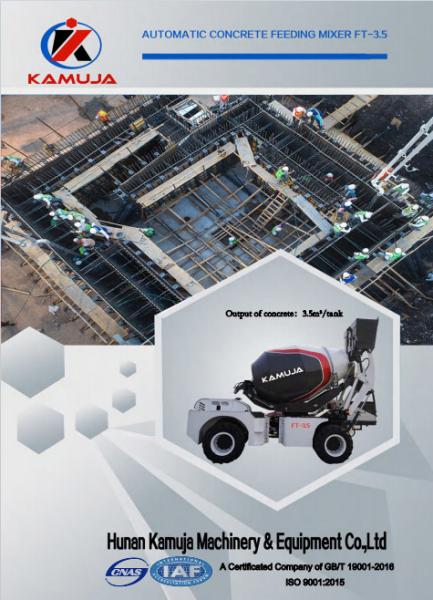

Express.Brochure.FT-3.5.pdf

Automatic Concrete Feeding Mixer-Output of concrete:3.5m³/tank

OVERALL

5500L Automatic Concrete Mixer 3.5M3 Truck Mounted Feed Mixer

SPECIFICATIONS

Item Specification Unit FT-3.5
Diesel Engine Type YCD4J22T-115
Total displacement cylinders 4330cc,4-in-line
Injection Direct injection and mechanical control
Cooling system Water-cooling,dry air filter
Maximum power Kw 85
Maximum torque N-m/r/min 390/1900
Electric System Generator 28v-1260W 45A
Battery 2*12V-60AH(272A)
Speed The first high speed/second high speed Km/h 0-17/0-33
The first low speed/second low speed Km/h 0-6/0-12
Axle and Tyre Rear axle oscillating ± 10°
Tyre 16/70-20
Mixing and Unloading The geometrical volume of drum L 5500
The rotation speed of drum r/min 22
Equipment Hydraulic System Maximum flow rate ml/r 40/80
Maximum pressure Map 20
Loading Capacity ㎥ 0.56
Times 7
Maintenance and Oil filling Fuel tank L 158
Total hydraulic system capacity L 158
Engine L 14
Weight Operating weight kg 7550
Max Weight kg 16300
Load-carrying capacity kg 8750
Steering Assisted by double displacement loading sensor power on steering wheel to turn, articulated steering.
4*4 Four-Wheel Drive Hydraulic torque converter gearbox, open hydraulic gear oil pump, and reverse gear control to control working speed and travelling speed.
Brakes External disc brake and emergency brake acting on four wheels, independent dual circuit brake and hand-control to braking.
Water system

Hydraulic centrifugal self suction pump injection, the capacity is 14-16m³/h,

Inside : it is 150L/min.

The total capacity of two connected water tanks positioned opposite is 540L

Visual flowmeter, the water intake of the roller by hand-control.
Cab Closed cab with heating system,tilting front window, humanized seat flexible suspension and height adjustment are provided.
